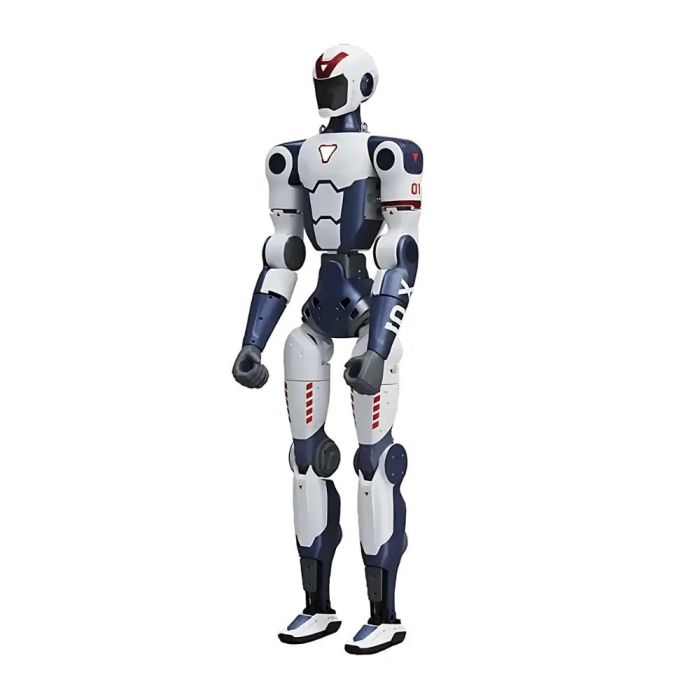

Unitree R1 Edu Pro C Humanoid Robot (R1 EDU U5)

Design and Features

Bipedal platform architecture

The R1 is designed as a compact humanoid with a legged locomotion system intended to demonstrate and enable:

• Dynamic walking and balance control (including gait generation, stabilization, and recovery behaviors)

• Whole-body coordination for tasks that combine locomotion with upper-body manipulation

• Repeatable experimentation via programmable APIs and developer tooling

Reuters reported the R1 as a lighter platform than Unitree’s earlier G1 (with the R1 reported around ~25 kg in that coverage).

“Education” package concept (what “Edu Pro C / U5” usually implies)

In many robotics product lines, education tiers typically add or standardize elements such as:

• Training-ready end effectors (hands/grippers suited to classroom demos)

• Sensor configurations (depth camera, vision modules, or additional perception aids)

• Software access (SDKs, example projects, curriculum labs, simulation assets)

• Support and spares (warranty tier, replacement parts, onboarding)

If your “R1 EDU U5” listing includes “Pro C,” it is often used to signal a higher bundle tier than a baseline EDU pack (for instance, a more capable hand option, extra sensors, or upgraded compute). However, the exact feature set should be treated as bundle-specific, not universal.

Technology and Specifications

Actuation and degrees of freedom

Humanoid robots are typically described by their degrees of freedom (DoF) (the number of independently actuated joints). Higher DoF can improve range of motion, dexterity, and balance behaviors, but also raises complexity and cost. Public reporting around Unitree humanoids frequently highlights DoF counts as a headline capability (for example, the earlier G1 was widely discussed as having developer-focused motion capabilities and a multi-joint design).

For the R1, DoF figures, joint torque limits, and payload specs may vary by configuration and should be taken from the vendor’s datasheet for the exact “U5” package.

Perception and AI

Modern humanoids typically combine:

• Visual perception (RGB cameras, depth cameras, or LiDAR/depth sensing)

• Inertial sensing (IMU for balance and motion estimation)

• Proprioception (joint encoders, torque/current sensing)

Reuters described the R1 as featuring a multimodal large-model capability integrating speech and image processing, reflecting a growing direction in humanoid development: using higher-level AI to support natural language interaction and perception-driven behaviors.

Software stack and developer workflow

Education bundles generally emphasize a workflow that includes:

• SDK / API access for motion control, sensor streams, and state estimation

• Simulation for safer iteration (common for gait tuning and manipulation planning)

• Example code for foundational tasks (standing, walking, waypoint navigation, grasp demos)

• Safety constraints (soft limits, fall detection strategies, “safe mode” routines)

While exact tools differ, a typical R1 EDU Pro bundle would be positioned as a learning platform rather than a turnkey household worker, similar to how early developer humanoids require training, integration, and task-specific engineering.

Applications and Use Cases

Robotics education and curriculum labs

The R1 EDU U5 concept is most naturally aligned with:

• Introductory humanoid kinematics and dynamics

• Balance control experiments (ZMP-style stability concepts, whole-body control)

• Perception-to-action pipelines (detect → localize → plan → execute)

• Human–robot interaction demos (speech commands, gesture prompts, vision cues)

Research and prototyping

For university and R&D teams, a lower-cost humanoid platform can enable:

• Locomotion research (uneven terrain, stair behavior, recovery strategies)

• Manipulation research (object handling with simplified hands or grippers)

• Data collection for imitation learning or reinforcement learning (policy training)

Lightweight industrial demonstrations

In industrial settings, humanoids are often used as demonstration platforms—showing feasibility of:

• simple pick-and-place in controlled environments

• teleoperation pilots

• inspection-style behaviors (look/point/observe) in labs

Advantages / Benefits

• Lower entry cost (relative to many humanoids): Reuters reported Unitree pricing the R1 at 39,900 yuan (about US$5.6k in that report), signaling an aggressive affordability push for a humanoid form factor.

• Humanoid embodiment for teaching: Bipedal control, stability, and whole-body motion are central to humanoid robotics curricula.

• Multimodal direction: Public reporting indicates emphasis on vision + speech style interfaces, supporting classroom demos and interaction research.

• Platform reuse: Education packages typically standardize spares, onboarding, and example projects, reducing setup friction for instructors and labs.

FAQ Section

What is the Unitree R1 Edu Pro C Humanoid Robot (R1 EDU U5)?

It is an education-oriented configuration of Unitree’s R1 humanoid robot platform, where “Edu Pro C / U5” generally denotes a bundle tier (often differing in hands, sensors, compute, curriculum, or support) rather than a single universal factory spec.

How does the Unitree R1 platform work?

The platform combines bipedal locomotion control (balance, gait generation, stabilization) with sensor-driven perception (vision/depth/IMU) and a programmable software stack. Public reporting describes the R1 as incorporating multimodal AI concepts that integrate speech and image processing.

Why is an education humanoid robot important?

Education humanoids let students and researchers work hands-on with core robotics topics—kinematics, dynamics, perception, planning, and human–robot interaction—on a single embodied system, rather than only in simulation.

What are the benefits of the R1 EDU U5 approach?

The key benefits are humanoid embodiment for teaching, a more accessible price direction for the base platform (as reported publicly), and bundle options that can standardize training materials, spares, and support for classroom or lab deployments.

Summary

The Unitree R1 Edu Pro C Humanoid Robot (R1 EDU U5) is best understood as an education-tier bundle built around Unitree’s R1 humanoid platform, aiming to make bipedal robotics more accessible for teaching and development. Public reporting highlights the R1’s aggressive pricing and emphasis on multimodal capabilities, while “U5” bundle specifics should be verified via the seller’s datasheet to confirm the exact sensors, hands, compute, and support included.

Equipped with two BrianCo Revo 2 Basic five-finger dexterous hands.

Dexterous hands have 6 degrees of freedom per hand.

Degree of Freedom (Total Joints): 38 (26 + 6 + 6).
Degrees of Freedom per leg: 6
Degrees of Freedom for waist: 2
Degrees of Freedom per arm: 5
Degrees of Freedom per Head: 2
Maximum single arm payload: 2kg
Calf + Thigh Length: 0.675m
Single arm length: approximately 0.435m
Extreme Joint Motion Range:
Waist: Y ±150°, R ±30°
Knee: -10° to +148°
Hip: Y ±157°, P -168° to +146°, R -60° to +100°
Hollow Joints with Internal Cable Routing: Yes
Joint Encoders: Dual + Single
Cooling System: Localized Air Cooling
Power Supply: Lithium Battery
Base Computing Power: 8-core High-Performance CPU
Speaker and Microphone Array Standard
Wi-Fi 6, Bluetooth 5.2: Yes
Perception Sensor: Anthropomorphic binocular camera
Charger (1), Smart Battery (Quick Release) (1)
Handheld Remote Control (1)
Battery Life: Approximately 1 hour
Smart OTA Upgrade: Supported
Secondary Development: Yes

Built-in computing power upgraded to 100 Tops expansion dock, enabling secondary development and including AI algorithm support.

Supports high- and low-level secondary development, provides robot models and simulation interfaces, and supports simulation environments such as Isaac SIM.

Provides excellent technical support, comprehensive development manuals, and ecosystem support

Included Accessories:
1. Remote Control
2. Battery Charger
3. Robot Transport Case
Protective bracket not included by default
