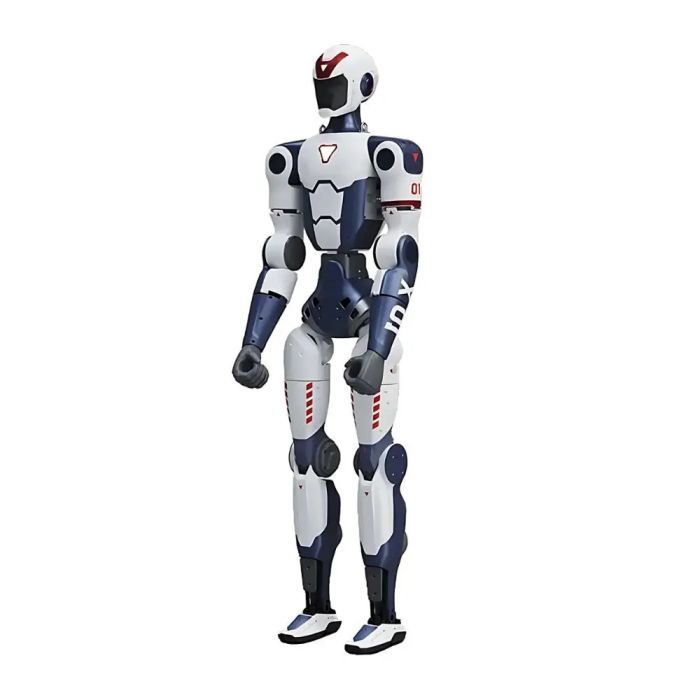

Unitree R1 Edu Smart Humanoid Robot (R1 EDU U2)

Design and Features

Humanoid form factor and mobility

The R1 platform uses a bipedal humanoid structure designed to support walking, balance control, and expressive whole-body movement. Public descriptions of R1 highlight agile motions (including demonstration acrobatics in promotional material), which in practice depends on carefully tuned gait generation, inertial stabilization, and joint-level torque/position control.

Education-oriented configuration (R1 EDU U2)

Vendors describe the R1 EDU U2 (“Smart”) as a package intended for training and development workflows—commonly emphasizing:

• Developer access (APIs/SDKs) and programmatic control

• Vision/perception support suitable for robotics coursework

• Connectivity appropriate for lab environments (wireless + device integration)

Because “Edu” bundles can vary by reseller and region, the exact included accessories (chargers, spare parts, software entitlements, training assets) are typically confirmed at quotation time.

Technology and Specifications

Degrees of freedom and actuation

R1 is widely listed with 26 degrees of freedom (DoF)—a level that supports lower-body locomotion plus upper-body articulation for research demonstrations and foundational manipulation studies (depending on the hand/end-effector configuration).

Sensing and perception

Education listings for R1 frequently reference binocular vision (stereo camera) as a core perception sensor, supporting depth-aware tasks such as:

• Visual SLAM / mapping experiments

• Person/object detection pipelines

• Dataset collection for embodied AI projects

Networking and I/O

Retail documentation for EDU variants commonly highlights modern wireless connectivity such as Wi-Fi 6 and Bluetooth 5.2, which are useful for:

• Teleoperation interfaces

• Peripheral integration (controllers, sensors, lab devices)

• Fleet/lab network management

Physical characteristics (platform-level references)

Public summaries of the R1 platform commonly describe it as a full-size humanoid class product and cite lightweight design compared with many industrial humanoids. One widely circulated launch write-up places the R1 at an aggressive price point and describes a compact, comparatively light system for its class (details vary by source and configuration).

Applications and Use Cases

Robotics education and curriculum labs

The R1 EDU U2 is typically positioned for higher-education and advanced technical training, including:

• Bipedal locomotion labs (gait tuning, ZMP/whole-body control concepts)

• State estimation (IMU fusion, pose estimation, contact detection)

• Controls coursework (PID vs model-based control, safety limits, torque control)

• Systems engineering (robot bring-up, calibration, networked robotics)

AI perception and embodied intelligence

Humanoid platforms are increasingly used to connect perception to action—especially in projects where students need an agent that can:

• See and interpret a scene (stereo vision)

• Move through the environment (biped walking)

• Execute structured behaviors (policy control, behavior trees, imitation learning)

Research prototyping (non-industrial)

For many labs, an “Edu” humanoid is a prototype vehicle: it accelerates experimentation in navigation, multi-sensor fusion, or human-robot interaction without requiring a team to build a humanoid from scratch.

Advantages / Benefits

Lower barrier to entry for humanoid experimentation

A key narrative around the R1 platform is affordability relative to many research humanoids. Public launch coverage has described an R1 price point around US$5,900 for an entry configuration—significantly below the historical cost of many full-size humanoids—though EDU bundles and international distribution typically alter final pricing.

Developer-oriented platform

Education listings emphasize programmability (SDK/API access) and a platform stance—helpful for courses and labs that require direct access to motion, perception, and diagnostics rather than a closed “appliance.”

Modern connectivity for lab integration

Wi-Fi 6 / Bluetooth 5.2 style connectivity supports practical lab workflows: wireless teleop, device pairing, and flexible testbed setup.

FAQ Section

What is the Unitree R1 Edu Smart Humanoid Robot (R1 EDU U2)?

The R1 EDU U2 is an education-focused configuration of Unitree’s R1 humanoid robot platform, designed for teaching and development in bipedal locomotion, perception, and robotics software workflows.

How does the R1 EDU U2 work?

The robot combines multi-joint actuation (commonly listed at 26 DoF) with onboard sensing (often including stereo/binocular vision) and developer interfaces (SDK/API tools). Students and engineers implement behaviors—such as walking routines or perception pipelines—through software and testing.

Why is the R1 EDU U2 important?

It provides a comparatively accessible way for schools and labs to teach humanoid robotics concepts—especially balance, gait control, and embodied AI—using a real biped platform rather than only simulations or small wheeled robots.

What are the benefits of the R1 EDU U2?

Commonly cited benefits include developer access, education-oriented packaging, and the R1 platform’s push toward lower entry cost for humanoid research and teaching, alongside modern wireless connectivity used in lab setups.

Summary

The Unitree R1 Edu Smart Humanoid Robot (R1 EDU U2) represents an education-oriented entry into biped humanoid robotics, combining a 26-DoF platform, stereo-vision-style perception, and developer tooling aimed at coursework and research prototyping. With the R1 family’s emphasis on lowering the cost of access to full-size humanoid experimentation, EDU configurations like U2 are commonly positioned as practical teaching and lab platforms for locomotion, perception, and embodied AI development.

Degree of Freedom(Total Joints): 26
Degrees of Freedom per leg: 6
Degrees of Freedom for waist: 2
Degrees of Freedom per arm: 5
Degrees of Freedom per Head: 2
Maximum single arm payload: 2kg
Calf + Thigh Length: 0.675m
Single arm length: approximately 0.435m
Extreme Joint Motion Range:
Waist: Y ±150°, R ±30°
Knee: -10° to +148°
Hip: Y ±157°, P -168° to +146°, R -60° to +100°
Hollow Joints with Internal Cable Routing: Yes
Joint Encoders: Dual + Single
Cooling System: Localized Air Cooling
Power Supply: Lithium Battery
Base Computing Power: 8-core High-Performance CPU
Speaker and Microphone Array Standard
Wi-Fi 6, Bluetooth 5.2: Yes
Perception Sensor: Humanoid Binocular Camera
Charger (1), Smart Battery (Quick Release) (1)
Handheld Remote Control (1)
Battery Life: Approximately 1 hour
Smart OTA Upgrade: Supported
Secondary Development: Yes

Built-in computing power upgraded to 100 Tops expansion dock, enabling secondary development and including AI algorithm support.

Supports high- and low-level secondary development, provides robot models and simulation interfaces, and supports simulation environments such as Isaac SIM.

Provides excellent technical support, comprehensive development manuals, and ecosystem support

Included Accessories:
1. Remote Control
2. Battery Charger
3. Robot Transport Case
Protective bracket not included by default
