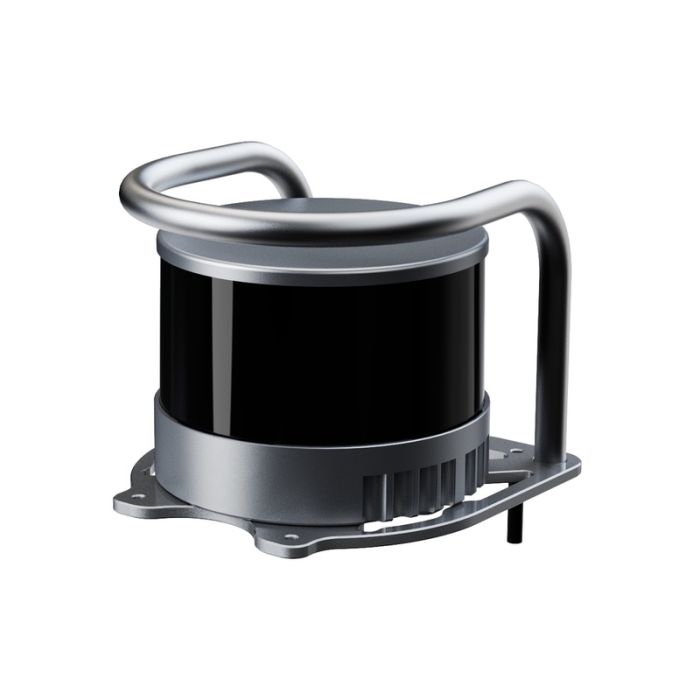

Unitree Go2-W Lidar (XT16 LiDAR)

Unitree Go2-W Lidar (XT16 LiDAR)

While Unitree’s Go2 family is widely marketed around the company’s own ultra-wide 4D LiDAR system (often described as 360° × 90° with a very short minimum detection distance), Go2 platforms can also be configured with alternative LiDAR hardware for development and navigation workflows. Unitree’s developer materials indicate that Go2 can be used with Hesai XT16 LiDAR for SLAM navigation (alongside another supported LiDAR option).

In the Go2-W ecosystem, “XT16 LiDAR” is frequently associated with premium configurations marketed as Go2-W Ultimate (with XT16 LiDAR) and accessory listings labeled Go2-W LiDAR (XT16 LiDAR).

Design and Features

Purpose: higher-fidelity 3D perception for Go2-W

LiDAR (Light Detection and Ranging) enables robots to measure distances by emitting laser pulses and analyzing the returned reflections, producing a 3D point cloud of the environment. For a mobile robot like the Go2-W, LiDAR is commonly used to:

• detect obstacles and free space in real time

• support indoor/outdoor mapping and localization (SLAM)

• improve navigation confidence in low-light or texture-poor areas

• provide consistent geometry sensing where cameras may be limited

Unitree positions the Go2-W as a “driving all terrain” wheeled quadruped with super-wide-angle 3D LiDAR and an HD wide-angle camera, supporting navigation on mixed terrain.

XT16: 16-channel mechanical rotating LiDAR

The “XT16 LiDAR” commonly referenced for Go2-W builds corresponds to a 16-channel mechanical (spinning) LiDAR design. In this architecture, the LiDAR rotates and continuously generates a 360-degree scan, producing a point cloud with vertical layering based on the number of channels (16). Hesai’s PandarXT-16 user manual describes a 360° horizontal field of view and a 30° vertical field of view (−15° to +15°).

This makes the XT16 a widely used class of sensor for robotics navigation where full 360° coverage is beneficial, and where scan density is sufficient for mapping and obstacle avoidance.

Return modes for richer environmental detail

LiDAR systems often support different “return” configurations—how reflections are recorded from a single emitted pulse. The XT16 manual lists single return modes (Last/Strongest/First) and dual return modes (combinations such as “Last and Strongest”).
Dual return can be useful in complex scenes (e.g., vegetation, fences, reflective clutter) where both near and far reflections carry useful information.

Industrial robustness characteristics

For robotic field use, ruggedness and ingress protection matter. The XT16 manual lists IP6K7 ingress protection and identifies the laser as Class 1 eye safe, using a 905 nm wavelength.
These details are especially relevant when the Go2-W is deployed in dusty facilities, outdoor yards, or environments requiring robust sensor housings.

Technology and Specifications

Note: Exact XT16 specifications can vary by revision and supplier. “XT16 LiDAR for Go2-W” may also be sold as a bundled accessory with mounting frames and cables. Confirm the exact model and included kit contents at purchase time.

Field of view and angular resolution

From the Hesai PandarXT-16 user manual:

• Horizontal FOV: 360°

• Vertical FOV: 30° (−15° to +15°)

• Horizontal angular resolution:

  • 0.09° (5 Hz)

  • 0.18° (10 Hz)

  • 0.36° (20 Hz)

• Vertical resolution: 2°

These parameters influence how finely the robot can perceive scene geometry at different scanning frequencies.

Scan speed (frame rate)

The XT16 manual lists:

• Frame rate: 5 Hz, 10 Hz, 20 Hz

Higher frame rates can improve responsiveness during fast movement but may change the balance between resolution, processing load, and data rate.

Point cloud throughput and data characteristics

The XT16 manual provides performance data including:

• Dual return point rate: 640,000 points/sec

• Point cloud data rate:

  • Single Return: 12.28 Mbps

  • Dual Return: 24.56 Mbps

Higher point rates generally improve mapping detail and obstacle detection fidelity (assuming sufficient compute resources).

Power and interfaces

From the manual’s electrical specifications and pin description:

• Input voltage (VIN): 9 to 36 V

• Ethernet: 100BASE-TX is shown in pin descriptions

This matches common robotics architectures where LiDAR transmits data over Ethernet to the robot’s onboard computer.

Range capability (commonly published for XT16 class)

Range is often quoted differently depending on reflectivity, lighting, and detection probability. A common XT-series brochure lists:

• Detection range up to 120 m

• Probability of detection (PoD) > 90% for 10% reflectivity targets at 80 m (for the “middle 16 channels” in XT series context)

Applications and Use Cases

SLAM navigation for Go2-W in complex environments

The most common reason to equip a Go2-W with an XT16 LiDAR is to support SLAM navigation—the process of building a map while simultaneously estimating the robot’s position within that map. Unitree’s developer documentation states that Go2 supports the Hesai XT16 LiDAR for SLAM navigation.

This is particularly valuable for:

• warehouses and logistics spaces

• industrial corridors with repeating geometry

• campuses and large indoor halls

• mixed indoor/outdoor transition zones

Improved obstacle avoidance for wheeled-leg mobility

The Go2-W combines wheel efficiency with legged obstacle handling. Reliable obstacle detection helps the robot decide when to roll, slow, reposition, or step. Unitree’s Go2-W product description emphasizes “super-wide-angle 3D LiDAR” as part of its sensing suite.

In real deployments, LiDAR helps detect:

• low obstacles and floor clutter

• chair legs, pallets, and narrow posts

• curb edges and ramp boundaries

• corridor pinch points and door frames

Inspection and patrol routes with repeatable mapping

Enterprise Go2-W packages are frequently used for inspection rounds, security patrols, and route-based monitoring. XT16-class LiDAR improves repeatability in waypoint navigation and can support higher-confidence mapping.

Retail listings for Go2-W Ultimate with XT16 LiDAR are commonly positioned as premium inspection/patrol configurations.

Robotics research and development

XT16 LiDAR is widely used in robotics research where developers need a standard mechanical LiDAR for:

• mapping experiments and dataset collection

• testing navigation algorithms

• perception benchmarking

• sensor fusion (LiDAR + camera + IMU)

Advantages / Benefits

360° perception supports safer navigation

A full 360° horizontal scan enables the Go2-W to perceive obstacles and environmental geometry around the robot, improving situational awareness in cluttered spaces.

Strong real-time point cloud output

With 640,000 pts/sec (dual return mode), XT16 provides dense-enough point clouds for many inspection and navigation tasks, especially when paired with modern edge compute.

Industrial power compatibility and networking

The 9–36 V input range and Ethernet output align well with common robotics power and network architectures, which can simplify integration in enterprise builds.

Ruggedness and eye-safe design

IP6K7 ingress protection and Class 1 eye-safe laser classification are important considerations for field robotics deployments and public demonstration environments.

FAQ Section

What is Unitree Go2-W LiDAR (XT16 LiDAR)?

Unitree Go2-W LiDAR (XT16 LiDAR) refers to an XT16-class 3D LiDAR sensor configuration used on the Unitree Go2-W wheeled quadruped robot to improve mapping, obstacle avoidance, and SLAM navigation.

How does XT16 LiDAR work on the Go2-W?

XT16 is a mechanical rotating LiDAR that scans 360° horizontally and generates a 3D point cloud. The Go2-W’s onboard computer uses this point cloud for navigation and environmental perception.

Why is XT16 LiDAR important for Go2-W navigation?

LiDAR improves navigation reliability by detecting obstacles and mapping geometry in real time. Unitree’s Go2 developer information states that Go2 supports Hesai XT16 LiDAR for SLAM navigation, making it a common option for advanced autonomy workflows.

What are the benefits of XT16 LiDAR on the Go2-W?

Common benefits include 360° scanning, multi-return capability, strong point cloud output (up to 640,000 pts/sec in dual-return mode), and rugged specifications such as IP6K7 and Class 1 eye safety.

Summary

Unitree Go2-W LiDAR (XT16 LiDAR) is a widely referenced premium perception configuration for the Go2-W wheeled quadruped robot, commonly used to enhance SLAM navigation, mapping, and obstacle avoidance. Built around an XT16-class mechanical LiDAR with 360° horizontal scanning, 30° vertical FOV, and high point cloud throughput (including 640,000 pts/sec in dual-return mode), it supports enterprise and research deployments where reliable geometric sensing is a core requirement. In Go2-W “ultimate” bundles and accessory kits, XT16 helps position the platform as a practical all-terrain inspection robot dog for modern industrial and advanced robotics workflows.
