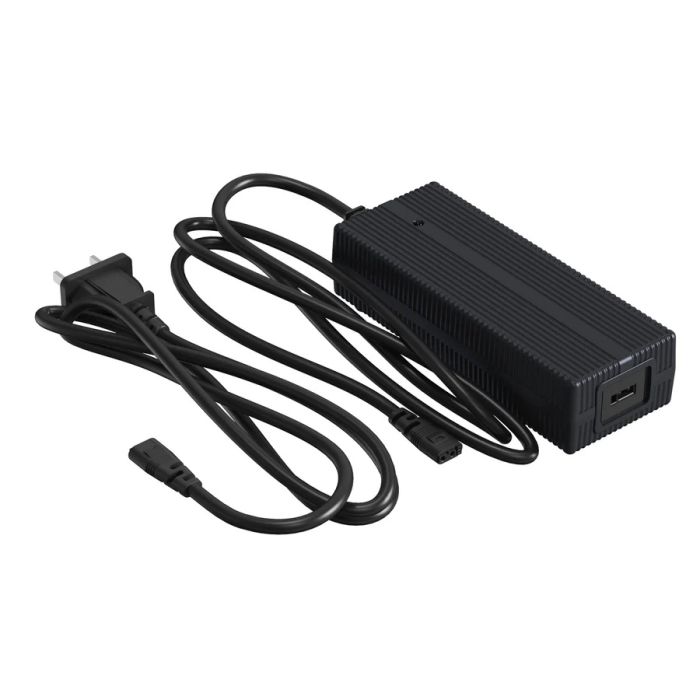

Unitree Go2 Battery Fast Charger (GO2-FCHARGER)

Go2 Battery Charger (Fast Charge Version) Go2 Series Products (Go2-Fcharger) (GO2-FCHARGER)

Unitree’s official battery-and-charger documentation describes two dedicated Go2 battery charger types: a standard charger and a fast (quick) charger, both built specifically for the Go2 battery system. The fast charger is intended to support rapid replenishment of the two official Go2 battery variants—BT2-05 (standard battery) and BT2-06 (long-endurance battery)—using a controlled charge profile supported by the battery’s internal battery-management system (BMS).

Because the Unitree Go2 is frequently deployed in test cycles and continuous operation workflows, the GO2-FCHARGER is commonly used in multi-battery rotation setups, where one battery powers the robot while another is charging—improving uptime and operational efficiency.

Design and Features

Purpose-built fast-charging architecture

The GO2-FCHARGER is engineered to provide a high-current, high-power output suitable for Go2 smart batteries. According to Unitree’s Go2 Battery and Charger User Manual, the fast charger’s output specification is 33.6V at 9.0A, delivering up to 302.4W of charging power.
This output aligns with Go2 battery charge-limit requirements (33.6V) published in Unitree’s battery specifications.

Compatibility with Go2 battery variants (BT2-05 and BT2-06)

Unitree identifies two Go2 battery models:

• BT2-05 (Standard battery) – 8000mAh / 236.8Wh

• BT2-06 (Long-endurance battery) – 15000mAh / 432Wh

The fast charger is designed to charge both battery types, making it useful for mixed fleets where operators keep multiple packs on hand for different runtime requirements.

Compact, portable form factor

Unitree’s manual lists the quick charger’s physical size as 154mm × 60mm × 36mm, emphasizing a compact profile suited to travel kits and field support packs.
This portability is often a deciding factor for teams transporting Go2 robots between labs, client demos, or training sites.

“Smart battery” safety integration (BMS-aware charging)

Go2 batteries use an integrated smart battery design featuring an internal BMS that supports protective behaviors. Unitree documents functions including:

• overcharge protection

• over-discharge protection

• short-circuit protection

• temperature-based charging protection (charging may be restricted outside safe temperature limits)

These battery protections are relevant to fast charging, where higher currents can increase thermal stress if used improperly. Unitree also recommends using officially provided chargers for safety and battery longevity.

Technology and Specifications

Electrical specifications (fast charger)

Unitree’s official Go2 manual provides the key fast-charger technical values:

• Input: 100–240V AC, 50/60Hz, 4A, 350VA

• Output: 33.6V DC, 9.0A, 302.4W

These specifications are also consistent with third-party technical listings for Go2 fast chargers in commercial channels, which frequently highlight the same 33.6V / 9A / 302.4W output characteristics.

Charging time performance

A primary differentiator of the GO2-FCHARGER is charging speed. In Unitree’s manual, the fast charger is specified for:

• BT2-05 (standard battery): ~0.8 hours

• BT2-06 (long-endurance battery): ~1.5 hours

These times are widely referenced by retailers and are commonly used as the practical benchmark for “fast charge” performance when comparing against the standard charger.

Operational and safety guidance

Unitree’s battery/charger manual provides operational recommendations that are especially important for high-power chargers:

• The battery should be switched off before charging.

• Users should remove the battery from the robot when charging.

• Charging immediately after heavy use is discouraged; allow the battery to cool to room temperature before charging.

These guidelines help maintain battery health and reduce the risk of abnormal charging behavior.

Applications and Use Cases

Battery rotation for extended Go2 operation

The most common use case for the GO2-FCHARGER is enabling longer operational schedules through rapid turnaround charging. This is especially valuable for:

• robotics labs running repeated experiments

• continuous demo days at events and exhibitions

• training sessions where multiple participants take turns operating the robot

• inspection workflows requiring minimal downtime between runs

Education and R&D programs

The Unitree Go2 platform is frequently used in education and development contexts, where charging speed improves productivity. Faster charging supports:

• back-to-back lesson modules

• multiple development iterations in a single day

• higher uptime for student projects and capstone demonstrations

Field kits and mobile deployments

With wide-range AC input (100–240V), the fast charger can be used globally with appropriate power cords/adapters, making it practical for international travel, mobile robotics teams, and remote deployments where charging time is limited.

Operational readiness for long-endurance batteries

For users operating the BT2-06 long-endurance battery, the fast charger reduces the time needed to recharge larger capacity packs, helping maintain readiness for longer missions without relying on extended charging windows.

Advantages / Benefits

Faster recovery time than standard charging

Compared to the standard Go2 charger (which Unitree lists at 34.0V, 3.5A, 119.0W), the fast charger’s 33.6V, 9.0A, 302.4W output represents a major increase in available charging power.
This directly translates into shorter charging time for both battery variants.

Improved robot uptime for professional workflows

Fast charging is especially useful in professional environments where Go2 is used as a platform for:

• recurring site demonstrations

• repeated sensor data capture

• prolonged teleoperation sessions

• autonomy testing pipelines

Official design alignment with Go2 smart battery protections

Because Go2 batteries include BMS controls and protection functions, the official fast charger is designed to work within those limits and indicators—reducing integration uncertainty compared to generic or improvised charging methods.

Global input support (100–240V)

With universal AC input, the GO2-FCHARGER is suitable for international use across common grid standards, simplifying deployment logistics for teams operating across multiple countries.

FAQ Section

What is the Unitree Go2 Battery Fast Charger (GO2-FCHARGER)?

The GO2-FCHARGER is a high-power official charger for Unitree Go2 smart batteries, designed to charge Go2 battery packs faster than the standard charger using a 33.6V / 9A output profile.

How does the Unitree Go2 fast charger work?

It converts AC input power (100–240V) into a controlled DC charging output (33.6V) and supplies up to 9A of charging current to compatible Go2 batteries, working with the battery’s internal BMS for safe charge management.

Why is the GO2-FCHARGER important?

Fast charging reduces downtime and supports battery rotation strategies. Unitree lists charge times of ~0.8 hours for the standard Go2 battery and ~1.5 hours for the long-endurance battery, helping increase robot uptime.

What are the benefits of the Unitree Go2 fast charger compared to the standard charger?

The fast charger provides a much higher charging output (302.4W) than the standard charger (119.0W), cutting charge time from hours to under an hour for standard packs in many cases.

Summary

The Unitree Go2 Battery Fast Charger (GO2-FCHARGER) is a dedicated high-power charging device for Unitree Go2 batteries, defined by its 33.6V / 9.0A / 302.4W output and significantly reduced charge times compared to the standard charger. Designed for both BT2-05 and BT2-06 battery variants, it supports battery rotation workflows, improves operational uptime, and provides universal AC compatibility for Go2 users in education, R&D, and field deployments.
