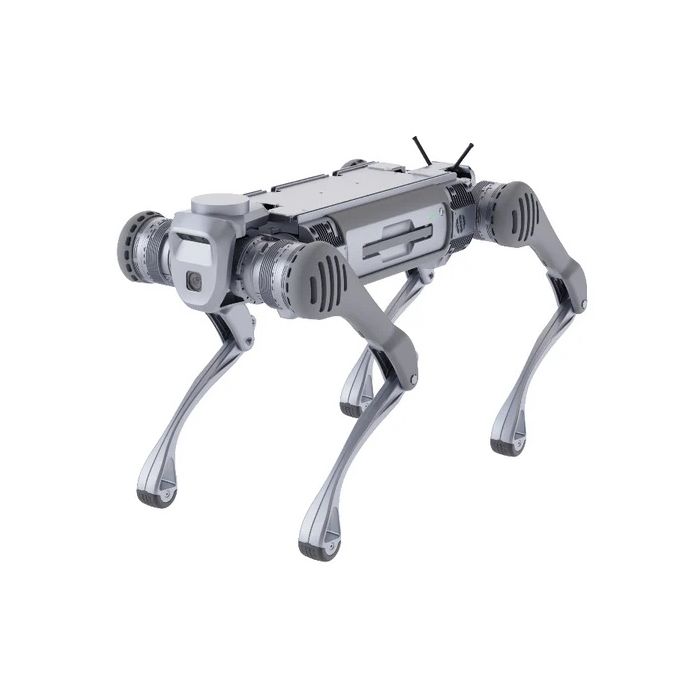

Unitree B2 (B2-ROBOT)

Unitree B2 (B2-ROBOT)

Unitree markets the B2 as one of the fastest running industrial quadrupeds, with a quoted top running speed of over 6 m/s under special configurations (with practical speed limits applied for safety). The platform is also promoted for its high joint torque (≈360 N·m), strong obstacle ability, and IP67 protection rating, supporting use across industrial facilities and outdoor environments.

The B2 is commonly associated with mission areas such as power inspection, industrial detection, and emergency response, where a mobile robot can reduce human exposure to hazardous terrain or repetitive patrol tasks.

Design and Features

Industrial-grade quadruped architecture

The Unitree B2 uses a 12-DoF (degrees of freedom) legged layout typical of quadruped robots—three actuated joints per leg—to support stable walking, running, climbing, and load-bearing behaviors. Third-party technical summaries frequently list the robot as having 12 joint motors, consistent with the B2’s four-leg configuration.

Unlike smaller quadrupeds designed primarily for education or indoor mobility, the B2 is built around a “heavy loader” concept, intended to sustain meaningful payloads while maintaining balance and controllability.

High payload support for real operations

Payload capacity is one of the B2’s defining traits. Unitree’s official B2 product information highlights:

• Standing load ≥120 kg

• Sustained walking load >40 kg

This payload profile supports industrial use cases such as carrying sensors, tools, or specialized payload kits for patrol and inspection.

Terrain adaptability and obstacle crossing

Unitree positions the B2 for complex terrain, including stairs, uneven surfaces, and steep slopes. Published obstacle and mobility claims include:

• Forward step climbing up to ~40 cm

• Slope angle >45°

• Jump distance >1.6 m (long jump)

These capabilities reflect a design goal of “go anywhere” mobility for environments that are difficult for wheeled robots.

Environmental protection (IP rating)

The Unitree B2 is listed with IP67 protection on Unitree’s official B2 page, suggesting resistance to dust ingress and limited water immersion.
Some third-party retailers list different IP values (e.g., IP68), which may reflect configuration differences or retailer interpretation; the safest reference point is the official IP67 listing.

Technology and Specifications

Note: Unitree states that some parameters may vary by configuration and scenario, and that certain functions may require human operation or secondary development.

Speed and dynamic performance

Unitree describes the B2 as achieving >6 m/s maximum running speed under special configurations, while also noting that practical speed limits may apply for safety.
High speed in an industrial quadruped can be useful for rapid patrol coverage, emergency response scouting, and moving between work zones quickly.

Joint torque and actuation strength

A signature performance metric for the B2 is its maximum joint torque of approximately 360 N·m, supporting heavy-load posture control, strong push-off power, and stable movement under payload.

Endurance and runtime

Unitree’s official specifications highlight long-duration walking performance:

• Unloaded continuous walking >5 hours

• 20 kg load continuous walking >4 hours

Independent reporting also notes the B2 uses a quick-change battery around 45 Ah (2250 Wh) and quotes 4–6 hours of battery life depending on conditions.

This combination of long runtime and quick battery replacement supports extended missions without long charging interruptions.

Sensing and perception stack

Unitree lists a multi-sensor perception setup, with configurations typically including:

• 3D LiDAR ×1

• Depth cameras ×2

• Optical cameras ×2 (configuration-dependent)

This sensor blend supports obstacle detection, mapping, remote monitoring, and vision-based inspection workflows.

Onboard computing and expandability

Unitree describes a two-tier compute approach and optional expansion:

• Platform compute: Intel Core i5 (platform functions)

• User development compute: Intel Core i7 (user development)

• Optional expansion: Intel Core i7 + Nvidia Jetson Orin NX modules (up to multiple modules, depending on configuration)

This structure is typical for industrial robots that must run core motion control reliably while offering optional AI compute headroom for perception or autonomy applications.

Interfaces and external I/O

Unitree’s B2 interface list includes industrial-friendly ports and power outputs, such as:

• 1000M Ethernet ×4

• USB 3.0 ×4

• 12V ×4, 5V ×1, 24V ×4

• Additional battery/power interfaces

These interfaces enable integration with external sensors, payload controllers, networking infrastructure, and power distribution kits.

Applications and Use Cases

Power inspection and utility patrol

Unitree explicitly presents B2 as suitable for power inspection solutions, where robots perform repeatable patrols and inspection tasks around electrical infrastructure.
In these environments, a legged platform can handle stairs, uneven outdoor paths, and obstacles common around substations and power corridors.

Industrial detection and maintenance support

B2 is also positioned for industrial inspection, including environments requiring stable movement, long endurance, and the ability to carry instruments or inspection payloads. Unitree highlights “infrared scan” and “3D mapping” themes in industrial detection contexts.

Emergency response and hazardous terrain

Unitree’s B2 materials emphasize use in complex terrain such as long staircases, rocky fields, and steep slopes—conditions relevant to emergency response scouting or remote monitoring.
A rugged quadruped can support safer reconnaissance when human access is risky or slow.

Heavy-load logistics and field transport

With sustained walking load quoted above 40 kg, the B2 can be used as a mobile carrier for tools, payload kits, and specialized equipment in industrial yards, large facilities, or research sites.

Research and development in industrial robotics

The B2’s “secondary development” positioning (and expandable compute options) makes it relevant for labs and engineering teams experimenting with:

• SLAM mapping and navigation

• payload integration and autonomy prototypes

• inspection analytics and AI perception pipelines

Advantages / Benefits

High payload capacity for real industrial workflows

Compared to smaller quadrupeds, B2’s ≥120 kg standing load and >40 kg sustained walking load enable practical payload deployments rather than lightweight demos.

Long endurance with quick-change battery operations

Unitree’s quoted >5 hours unloaded walking endurance and reporting of a 45 Ah / 2250 Wh quick-change battery support long missions and operational flexibility.

Strong mobility in complex terrain

Obstacle handling and slope performance—such as ~40 cm steps and >45° slopes—support real deployments where facility layouts and outdoor terrain are not robot-optimized.

Industrial sensor + interface readiness

The B2’s standard perception set (LiDAR + multiple cameras) and enterprise interface options (Ethernet, USB, multi-voltage outputs) reduce friction for integration with inspection payloads and site networks.

FAQ Section

What is Unitree B2 (B2-ROBOT)?

Unitree B2 is an industrial-grade quadruped robot designed for heavy-load, long-endurance missions such as inspection, patrol, and rugged field operations, with high torque and strong terrain adaptability.

How does the Unitree B2 work?

B2 uses a four-leg, 12-DoF locomotion system driven by high-torque actuators. It combines LiDAR and camera sensors for perception and can be integrated with onboard compute modules for autonomy and inspection tasks.

Why is Unitree B2 important?

B2 helps automate difficult and potentially hazardous work—such as industrial inspection and emergency scouting—by combining long runtime, heavy payload capacity, and robust mobility in environments where wheeled robots may fail.

What are the benefits of Unitree B2?

Key benefits include >6 m/s peak speed (special configurations), ≈360 N·m joint torque, ≥120 kg standing load, >40 kg walking load, and >5 hours endurance unloaded, with industrial sensors and I/O for integration.

Summary

Unitree B2 (B2-ROBOT) is a high-performance industrial quadruped robot built for long-duration operations, heavy payload transport, and rugged mobility across complex terrain. With features such as >6 m/s peak running speed (special configurations), ≈360 N·m joint torque, ≥120 kg standing load, >40 kg sustained walking load, and multi-hour endurance, the B2 is positioned for industrial inspection, utility patrol, emergency response scouting, and advanced robotics development. Its sensor suite (LiDAR + multiple cameras) and industrial I/O options further support integration into real operational workflows.
