Iridium 9602N SBD Transceiver (4629A-9603N)
The Iridium 9602N SBD transceiver, designed to be integrated into a wireless data application with other host system hardware and software, provides a complete solution, including tracking of maritime vessels, equipment monitoring, and automatic vehicle location.
In stock
- BRAND:
- IRIDIUM
- MODEL:
- 9602N
- PART #:
- 4629A-9603N
- ORIGIN:
- Thailand
- Warranty:
- 12 MONTHS
- AVAILABILITY:
- USUALLY SHIPS IN 3-5 BUSINESS DAYS
- SKU:
- Iridium-9602-SBD-Transceiver
US$249.99
- Buy 5 for US$244.99 each and save 2%
- Buy 10 for US$242.49 each and save 3%
- Buy 20 for US$237.49 each and save 5%
- Buy 50 for US$232.49 each and save 7%
- Buy 100 for US$224.99 each and save 10%
Iridium 9602N SBD Transceiver
The Iridium 9602N SBD transceiver, designed to be integrated into a wireless data application with other host system hardware and software, provides a complete solution for a specific application or vertical market. The Iridium 9602N is ideal for M2M solutions, including tracking of maritime vessels, equipment monitoring, and automatic vehicle location.
Iridium's global, low latency SBD service is the ideal solution for monitoring everything from containers and trucks to planes and ships. It is integrated by Iridium's Value Added Resellers into vertical market applications in industries such as Oil & Gas, Rail, Maritime, Aeronautical, Utilities and Government/Military.

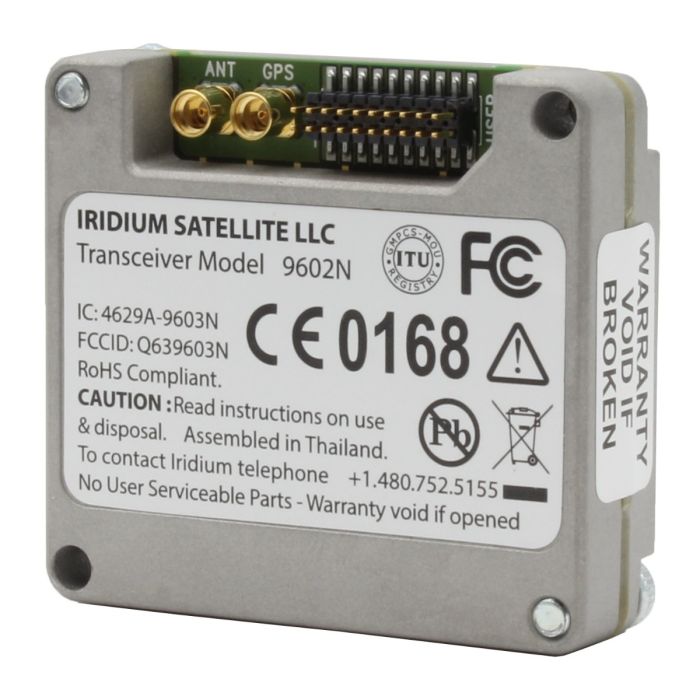

The Iridium 9602N is a single-board transceiver provided as a "black box" transceiver module. All device interfaces are provided by a single multi-pin interface connector, in addition to the antenna connector. Only the core transceiver is provided with the 9602N. All other end user Field Application functions such as GPS, microprocessor based logic control, digital and analog inputs, digital and analog outputs power supply and antenna must be provided by the solution developer. The device interface across the user connector consists of a serial-data interface, DC power input, network available output and a power on/off control line. The Iridium 9602N does not incorporate, nor require, a Subscriber Identity Module (also known as a SIM Card) to be inserted into the Transceiver. The Iridium 9602M is intended to be used as a transceiver module fitted within another host system.
Specifications
| SHIPS FROM | CALGARY, AB, CANADA |
|---|---|
| MODEL | 9602N |
| PART # | 4629A-9603N |
| PRODUCT TYPE | SATELLITE M2M |
| USAGE AREA | 100% GLOBAL |
| BRAND | IRIDIUM |
| NETWORK | IRIDIUM |
| SERVICE | IRIDIUM SBD |
| USE TYPE | MARITIME, VEHICULAR |
| POWER REQUIREMENTS | +5 V +/- 0.5 V |
| OPERATING TEMPERATURE | -40ºC to 85ºC (-40ºF to 185ºF) |
| FREQUENCY | L BAND (1-2 GHz) |
| APPLICATIONS | ENVIRONMENT & SAFETY MONITORING, FLEET MANAGEMENT, PERSONNEL & ASSET TRACKING, REMOTE AUTOMATION & CONTROL |
| CERTIFICATIONS | CE COMPLIANCE, FCC, RoHS |
| HARMONIZED TARIFF NUMBER | 85177900 |
| CONSTELLATION | 66 SATELLITES |
| LENGTH | 41 mm |
| WIDTH | 45 mm |
| DEPTH | 13 mm |
| WEIGHT | 30 grams |
