Iridium Edge Solar (EDGESOLAR9640)
In stock
- BRAND:
- IRIDIUM
- MODEL:
- EDGE SOLAR
- PART #:
- EDGESOLAR9640
- ORIGIN:
- Mexico
- Warranty:
- 12 MONTHS
- AVAILABILITY:
- USUALLY SHIPS IN 7-14 BUSINESS DAYS
- SKU:
- Iridium-Edge-Solar-SBD-Modem
- Buy 2 for US$538.95 each and save 2%
- Buy 10 for US$533.45 each and save 3%
- Buy 20 for US$527.95 each and save 4%
- Buy 100 for US$522.45 each and save 5%

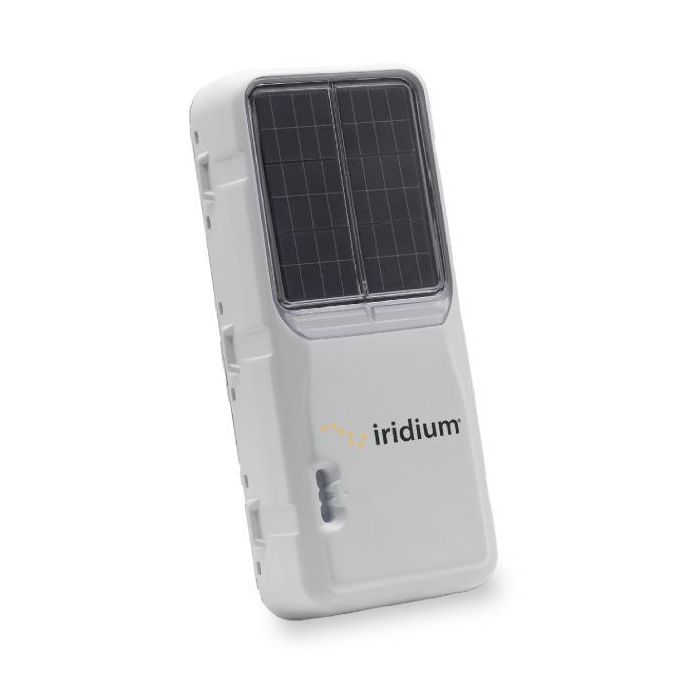

Iridium Edge Solar™
The new Iridium Edge Solar is designed to be a simple, low-cost, solar-based tracking device. Something you can attach to a boat, vehicle or other asset and then forget. Regular GPS tracking reports would then be sent from the unit, with the internal battery being recharged by the in-built solar panel.
The Iridium Edge® Solar is a standalone and programmable, solar-powered Short Burst Data (SBD®) device that offers real-time GPS tracking and local wireless sensor and communication capabilities over Bluetooth. The product’s self charging, low maintenance, long field life and over-the-air configuration allow Iridium Value-Added Resellers to create distinct tracking applications that can also be implemented to create even more complex solutions. The Iridium Edge Solar is for customers who need a very simple tracking device that they can set-and-forget. Therefore if you need a simple autonomous tracker, with global coverage, transmitting every few hours, this could be exactly what you need.
Features of the Iridium Edge Solar include:
• Autonomous GPS tracking
• Bluetooth capability for wireless sensor integration and local device connectivity
• Over-the-Air Configuration Changes
• Interval and Scheduled Reporting Modes
• Start/Stop Reporting/In Motion Reporting
• Fully Encapsulated, No External Connectors, Water Ingress Protected
• Accelerometer and Magnetometer
• LED Status Indicator
Power Management details:
• Photovoltaic Solar Cells, Rechargeable and Primary Batteries
• Smart Power Management System
• Up to 3-year Shelf Life
• Up to 10-Year Operational Service Life
• Back-up battery capacity provides 2x per day reporting for up to 5 years with no solar availability.
Key Markets:
- Fleet Management
- Remote Monitoring
- SCADA
- Asset Tracking
- Maritime
Specifications
| MODEL | EDGE SOLAR |
|---|---|
| PART # | EDGESOLAR9640 |
| PRODUCT TYPE | SATELLITE M2M |
| USAGE AREA | 100% GLOBAL |
| BRAND | IRIDIUM |
| NETWORK | IRIDIUM |
| SERVICE | IRIDIUM SBD |
| USE TYPE | FIXED, MARITIME, VEHICULAR |
| POWER REQUIREMENTS | Internal Non-Rechargeable & Solar Chargeable Batteries |
| OPERATING TEMPERATURE | -40ºC to 85ºC (-40ºF to 185ºF) |
| STORAGE TEMPERATURE | -40ºC to 85ºC (-40ºF to 185ºF) |
| INGRESS PROTECTION | IP 67 |
| FREQUENCY | L BAND (1-2 GHz) |
| APPLICATIONS | AGRICULTURE, ASSET & VEHICLE TRACKING, OIL & GAS, SURFACE MINING, TRANSPORTATION |
| CERTIFICATIONS | CE COMPLIANCE, FCC |
| HARMONIZED TARIFF NUMBER | 85177900 |
| CONSTELLATION | 66 SATELLITES |
| LENGTH | 164 mm |
| WIDTH | 71 mm |
| DEPTH | 33 mm |
| WEIGHT | 470 grams |
Feature
Network:
- Message Size: 240 bytes (Receive), 370 bytes (Transmit)
- Frequency: 1616 – 1626.5 MHz
Interfaces:
- RS232 AT command interface
- On/Off control lines
Power:
- Power Supply ( 9-32V), SAE J1455 Load dump protected
- Reverse Polarity Protection
- Maximum Power: 1.6W (peak for short transmit burst)
- Low Power Modes: < 100uA
Certifications:
- Iridium® satellite network certification
- FCC, IC, CE, Australia approvals
- RoHS compliant
Iridium Global Coverage Map
Iridium is the only provider of truly global satellite voice and data solutions with complete coverage of the earth (including oceans, airways and Polar Regions). Iridium phones deliver essential communications services to and from remote areas where no other form of communication is available.
