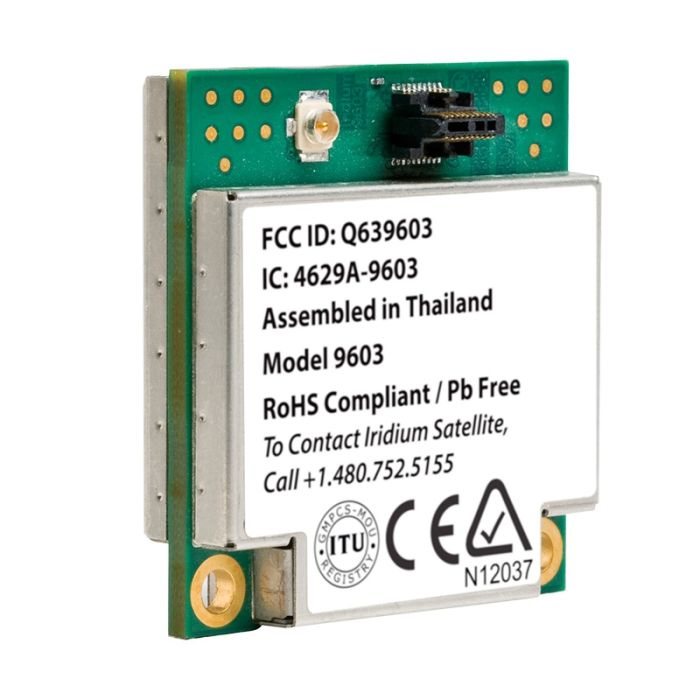

Iridium 9603N SBD Transceiver (SBDN9603E)
In stock
- BRAND:
- IRIDIUM
- MODEL:
- 9603N
- PART #:
- SBDN9603E
- ORIGIN:
- Thailand
- Warranty:
- 12 MONTHS
- AVAILABILITY:
- USUALLY SHIPS IN 2-3 BUSINESS DAYS
- SKU:
- Iridium-9603N-SBD-Transceiver
- Buy 5 for US$197.01 each and save 1%
- Buy 20 for US$195.02 each and save 2%
- Buy 50 for US$193.03 each and save 3%
- Buy 100 for US$189.05 each and save 5%
Iridium 9603N SBD Transceiver
A revolution in scale, the compact Iridium 9603N is the world's smallest commercially available two-way satellite data transceiver, designed for applications where space is at a premium and connectivity is critical.
One-fourth the volume and half the footprint of the Iridium 9602, the innovative Iridium 9603 transceiver combines the global coverage of the Iridium satellite constellation with the low latency of the Iridium Short Burst Data Service to provide highly reliable satellite communications from pole to pole.
With the smallest form factor of any commercial satellite transceiver available today, the Iridium 9603 is ideal for space-constrained applications including monitoring, tracking and alarm systems. It is also highly affordable, costing just slightly more than the previous-generation Iridium 9602.
Delivering two-way communications on a remarkable scale, the Iridium 9603 transceiver further expands the Iridium connected user base worldwide.
Environmental Specifications
Operating Temperature Range: -40ºC to +85ºC
Operating Humidity Range: _ 75% RH
Storage Temperature Range: -40ºC to +85ºC
Storage Humidity Range: _ 93 % RH
RF Interface
Frequency Range: 1616 MHz to 1626.5 MHz
Duplexing Method: TDD (Time Domain Duplex)
Input/Output Impedance: 50 ohms
Multiplexing Method: TDMA/FDMA
DC Power Input
Supply Input Voltage Range: 5.0V +/- .5V DC
Supply Input Voltage Ripple: <40mV pp
Idle Current (Peak): 156mA
Idle Current (Average): 34mA
Transmit Current (Average): 145mA
Transmit Current (Peak): 1.3A
Receive Current (Average): 39mA
Receive Current (Peak): 156mA
SBD Message Transfer – Average Current: 158mA
SBD Message Transfer – Average Power: <= 0.8 W
Specifications
| MODEL | 9603N |
|---|---|
| PART # | SBDN9603E |
| PRODUCT TYPE | SATELLITE M2M |
| USAGE AREA | 100% GLOBAL |
| BRAND | IRIDIUM |
| NETWORK | IRIDIUM |
| SERVICE | IRIDIUM SBD |
| USE TYPE | MARITIME, VEHICULAR |
| POWER REQUIREMENTS | +5 V +/- 0.5 V |
| OPERATING TEMPERATURE | -40ºC to 85ºC (-40ºF to 185ºF) |
| STORAGE TEMPERATURE | -40ºC to 85ºC (-40ºF to 185ºF) |
| FREQUENCY | L BAND (1-2 GHz) |
| APPLICATIONS | ENVIRONMENT & SAFETY MONITORING, FLEET MANAGEMENT, PERSONNEL & ASSET TRACKING, REMOTE AUTOMATION & CONTROL |
| CERTIFICATIONS | CE COMPLIANCE, FCC |
| CONSTELLATION | 66 SATELLITES |
| LENGTH | 31.5 mm |
| WIDTH | 29.6 mm |
| DEPTH | 8.1 mm |
| WEIGHT | 11.4 gr |
Feature
Features
- Single header connector for Power & On/Off Control
- RS232 Interface (Simple AT command interface)
- Network Available
- Light weight (11.4 grams)
- Small single board transceiver (34.5mm X 29.6mm X 8.1mm)
- Iridium Short Burst Data service
- Mobile originated messages up to 340 bytes
- Mobile terminated messages up to 270 bytes
- Low, uniform global latency (less than 1 minute)
- Coverage in areas not serviced by cellular
Iridium Global Coverage Map
Iridium is the only provider of truly global satellite voice and data solutions with complete coverage of the earth (including oceans, airways and Polar Regions). Iridium phones deliver essential communications services to and from remote areas where no other form of communication is available.
