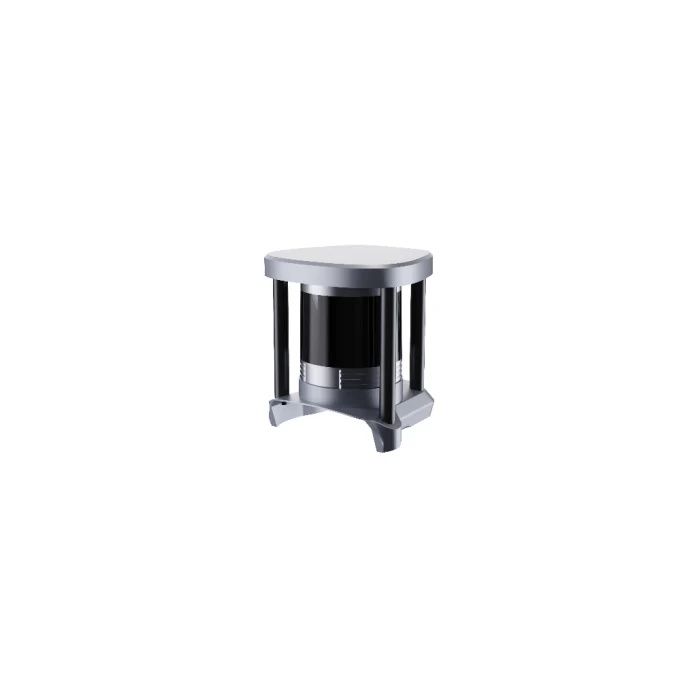

Unitree Helios 5515 Lidar (Helios 5515 Lidar)

Helios 5515 Lidar B2 Series Accessories (Helios 5515 Lidar)

In practical terms, the “Helios 5515” accessory name is widely associated with the RoboSense RS-Helios-5515 sensor platform—a new-generation multi-beam LiDAR designed for robotics navigation, autonomous vehicles, V2X/V2R applications, and mapping.

As a perception sensor, Helios 5515 is primarily used to generate dense 3D point-cloud data for tasks such as SLAM (Simultaneous Localization and Mapping), obstacle detection, environment modeling, and autonomous route planning. It is notable for combining a wide 70° vertical field of view (tilted downward for blind-spot reduction) with long-range detection and industrial-grade environmental protection.

Design and Features

32-beam multi-line 3D scanning

Helios 5515 is described as a 32-beam (32-line) LiDAR, meaning it emits and receives multiple laser channels simultaneously to build a 3D representation of the environment.
This architecture is commonly used when a robot needs a balance of:

• Point-cloud density (for mapping fidelity)

• Real-time responsiveness (for navigation)

• All-direction awareness (for safety and obstacle detection)

Ultra-wide vertical field of view for blind-spot reduction

One of the signature characteristics of the RS-Helios-5515 design is its 70° vertical FoV (approximately −55° to +15°) with a downward tilt, intended to reduce near-field blind zones while still supporting long-range perception.
This geometry is especially useful for mobile robots operating near:

• stairs and ramps

• uneven ground and curbs

• pallets, debris, and low obstacles

• industrial environments with frequent occlusions

360° horizontal awareness

Helios 5515 supports a 360° horizontal field of view, which is typical for rotating multi-beam LiDAR sensors used on robots that must perceive hazards from any direction.

Environmental robustness and interference handling

Commercial descriptions highlight features aimed at real-world reliability, including:

• IP67 protection rating

• Operating temperature down to −30°C

• Functions described as rain/fog/snow/dust denoising

• Shielding against strong light and multi-radar interference (vendor claims)

These traits align with use in robotics deployments where performance must remain stable across variable lighting and weather conditions.

Technology and Specifications

Core sensing specifications

Public technical listings for the RS-Helios-5515 commonly specify:

• Laser beams: 32

• Wavelength: 905 nm

• Laser safety: Class 1

• Maximum range: up to 150 m (often also shown as 80 m @ 10% reflectivity in some listings)

• Blind spot: ≤ 0.1 m

• Points per second: ~576,000 (single return), ~1,152,000 (dual return)

• Horizontal FoV: 360°

• Vertical FoV: 70° (−55° to +15°)

• Horizontal angular resolution: 0.2° / 0.4°

• Vertical angular resolution: up to 1.33°

• Rotation speed: 600 / 1200 rpm

Power and physical integration characteristics

Typical integration details found in reseller technical pages include:

• Input voltage: 9V–32V

• Typical power consumption: ~12W

• Protection: IP67

• Operating temperature: −30°C to 60°C

• Approx. dimensions: ~Ø100mm × H100mm

• Approx. weight: ~1.0 kg (without cabling)

Configuration, monitoring, and firmware management

The RS-Helios-5515 user guide indicates it can be accessed and controlled through a web interface, supporting actions like setting parameters, viewing device status, and updating firmware.
This matters for robotics deployments because it enables:

• consistent calibration workflows

• remote diagnostics

• standardized fleet configuration practices

• controlled firmware lifecycle management

Applications and Use Cases

Autonomous navigation and SLAM for legged robots

On quadrupeds such as Unitree B2-series robots, Helios 5515 is typically chosen to provide reliable 3D sensing for:

• LiDAR-based SLAM

• obstacle detection and avoidance

• autonomous route following in facilities

• mapping for repeatable inspection missions

Because legged robots encounter frequent pitch/roll changes and variable terrain, LiDAR with wide vertical FoV can improve robustness for near-field scene understanding.

Industrial inspection and facility patrol

Industrial environments often include low obstacles, tight corridors, reflective surfaces, and changing conditions. A wide-FoV 3D LiDAR supports consistent perception for:

• structural navigation in warehouses and plants

• patrol routes in large sites

• inspection data collection (paired with cameras and thermal sensors)

Robotics research, mapping, and field experimentation

RS-Helios-5515 appears in applied research contexts, including multi-sensor fusion SLAM systems where it is used as the primary LiDAR input.
Research teams often select 32-beam LiDAR when they need stronger spatial structure than 16-beam sensors but want a smaller, more cost-contained option than very high-channel-count systems.

Outdoor and semi-structured navigation

With long-range measurement and weather-oriented denoising features described by sellers, Helios 5515 is often positioned for outdoor or semi-structured navigation where lighting and environmental noise can affect perception.

FAQ Section

What is Unitree Helios 5515 LiDAR?

Unitree Helios 5515 LiDAR is a 32-beam, 360° 3D LiDAR sensor sold as a perception accessory for Unitree B2-series robots and widely associated with the RoboSense RS-Helios-5515 platform used for robotics navigation and mapping.

How does Helios 5515 LiDAR work?

It works by emitting laser pulses (905 nm) and measuring return times to calculate distances, producing a rotating 3D point cloud. With 32 beams and a 70° vertical field of view, it can detect obstacles and structures across a wide slice of the environment.

Why is Helios 5515 LiDAR important?

It is important because LiDAR is a core sensor for SLAM, obstacle avoidance, and autonomous navigation. Helios 5515’s wide vertical FoV and high point rate help robots perceive near-field hazards and navigate complex spaces more safely.

What are the benefits of Helios 5515 LiDAR?

Key benefits include 150 m-class ranging, 32-beam 3D scanning, 70° vertical FoV, high point-cloud throughput, and industrial durability features like IP67 and a broad operating temperature range.

Summary

The Unitree Helios 5515 LiDAR is a 32-beam, 360° 3D perception sensor commonly offered as a Unitree B2-series accessory and closely aligned with the RoboSense RS-Helios-5515 platform. With a 70° vertical field of view, long-range measurement (up to 150 m), high point-cloud throughput, and industrial durability features such as IP67 protection and a wide operating temperature range, it is widely used for robot navigation, SLAM, mapping, and obstacle detection in industrial and research environments.
