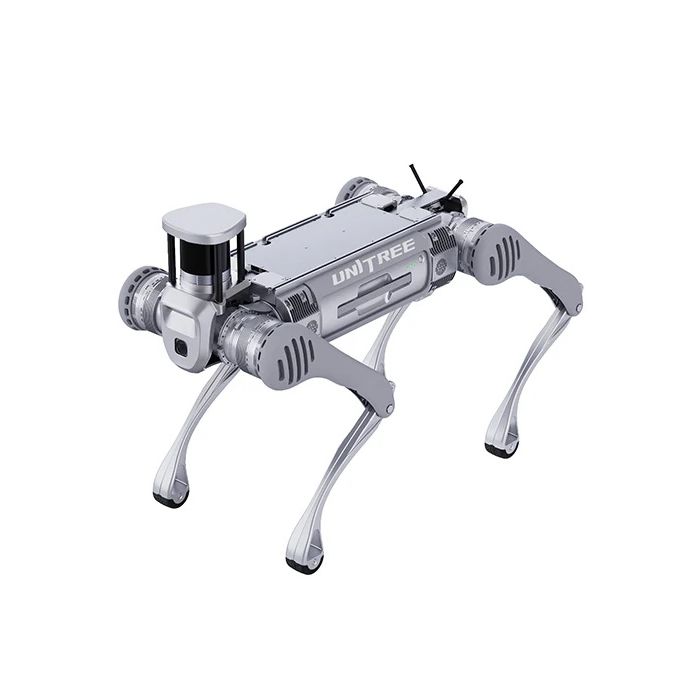

Unitree B2 Quadruped Robot w/ Free Worldwide Delivery

Unitree B2 Quadruped Robot w/ Free Worldwide Delivery

Positioned in the “inspection and response” segment of legged robotics, the B2 is commonly discussed for industrial inspection, emergency response, and research use cases where a legged platform can traverse stairs, uneven ground, and debris more reliably than many wheeled systems. Unitree describes the B2 as an all-scenario industrial intelligence platform, emphasizing endurance, load capability, and terrain adaptability.

In practice, the B2 is typically deployed as a mobile carrier for sensors (e.g., cameras and 3D perception modules), as a teleoperated “first look” robot in hazardous zones, or as a research platform for locomotion and autonomy. Its design reflects a broader industry trend: using legged robots to extend perception and manipulation into spaces where conventional mobile robots struggle—such as stairwells, construction sites, and rugged outdoor corridors.

Design and Features

Mechanical form factor

The B2 uses a four-legged architecture with a compact torso and articulated limbs optimized for dynamic walking, running, and climbing. The overall dimensions depend on posture; Unitree publishes approximate “standing” and “lying prone” sizes for the platform to reflect how it can lower its profile for stability or clearance.

Mobility-focused features

A key feature of the B2 class is terrain negotiation: continuous stair climbing, high step traversal, and steep slope handling are core design priorities. Unitree lists capabilities such as climbing stairs in the 20–25 cm range and negotiating forward-direction steps up to about 40 cm, along with a steep climbing angle rating.
For some configurations, the platform can be ordered with optional wheeled feet, offering a hybrid approach that can improve efficiency on smoother surfaces while retaining legged versatility.

Payload and mission support

Industrial quadrupeds are often evaluated by how much they can carry while stationary versus while walking. Unitree publishes separate load figures for standing and walking, reflecting the realities of dynamic stability and power consumption.
This payload capacity enables practical add-ons such as inspection payloads (visible/thermal imaging, LiDAR), communication modules, and task-specific mounts.

Technology and Specifications

Power and endurance

Unitree lists the B2’s battery as 45Ah (2250Wh) at 58V, with an endurance range commonly cited around 4–6 hours depending on load and duty cycle. It also provides indicative endurance examples (e.g., longer walking time without load and reduced time with payload) and approximate travel distances tied to those scenarios.

Performance envelope (mobility)

The published specification set includes a running speed greater than 6 m/s, along with mobility measures such as jump/ditch crossing ranges and stair/step ratings. These metrics are intended to describe the robot’s usable operating envelope rather than guarantee identical results in every field condition (terrain, payload, and controller tuning can significantly affect outcomes).

Environmental robustness

For industrial deployments, ingress protection and temperature range are practical differentiators. Unitree publishes an IP67 ingress protection rating and an operating temperature range of roughly -20°C to 55°C, supporting use in dust-prone, wet, or temperature-variable environments typical of utilities and outdoor infrastructure.

Sensing and control (high level)

Like many modern quadrupeds, the B2 is designed to support sensor-driven navigation and operator oversight (teleoperation). Unitree’s public materials emphasize “control and perception” as part of the product positioning, commonly pairing the platform with imaging and 3D perception for mapping and inspection workflows.

Applications and Use Cases

Industrial inspection and utilities

A common application is power inspection and industrial inspection, where the robot carries cameras and 3D perception to scan equipment corridors, substations, plants, or remote assets. The ability to walk stairs and step over obstacles can reduce the need for bespoke ramps or site modifications.

Emergency response and hazardous environments

Legged robots are frequently evaluated for emergency rescue scenarios—entering unstable areas, navigating debris, and providing situational awareness before human entry. Unitree’s B2 materials highlight operation across rough terrain such as rock piles, steep slopes, and complex staircases.

Research and education

Universities and R&D teams use platforms like the B2 to test locomotion control, perception pipelines, and autonomy stacks. The published payload and endurance characteristics can be valuable when experiments require onboard compute, multiple sensors, or long-duration trial runs.

Advantages / Benefits

The B2’s value proposition typically centers on four practical benefits:

1. All-terrain mobility: Legged traversal across stairs, uneven ground, and obstacles where many wheeled robots slow down or stop.

2. High payload for a quadruped: Published standing and walking load ratings support real inspection payloads and mission kits.

3. Industrial durability targets: IP67 and a wide temperature range align with outdoor and plant environments.

4. Endurance suited to patrol workflows: Multi-hour operation supports inspection rounds and longer teleop tasks without constant battery swaps.

FAQ Section

What is the Unitree B2 Quadruped Robot?

The Unitree B2 is an industrial quadruped robot designed to walk, climb stairs, carry payloads, and support inspection or response missions using onboard sensing and remote or autonomous control.

How does the Unitree B2 work?

The B2 uses four articulated legs driven by high-performance joint actuators and a control system that stabilizes the body during walking, climbing, and dynamic maneuvers. It can also support sensor payloads (e.g., cameras/3D perception) for navigation and inspection tasks.

Why is the Unitree B2 important?

The B2 matters because it targets real-world industrial constraints—stairs, uneven ground, payload carrying, environmental exposure, and multi-hour endurance—helping organizations gather data or assess hazards in places that are difficult or risky for humans.

What are the benefits of the Unitree B2?

Key benefits include all-terrain mobility, published high payload ratings, IP67 ingress protection, and multi-hour battery life for patrol-style inspection and response workflows.

Summary

The Unitree B2 Quadruped Robot is an industrial legged platform focused on mobility, payload capacity, endurance, and ruggedization for inspection, response, and research. With published specifications covering speed, stair/step traversal, IP67 protection, and multi-hour runtime, the B2 is positioned as a practical quadruped for real-world field conditions where conventional mobile robots may be constrained.

Key Features:

• Unmatched Agility: Experience lightning-fast movements, dynamic jumps, and impressive obstacle avoidance capabilities.
• Powerful AI Integration: Leverage advanced AI algorithms for object recognition, path planning, and complex tasks.
• Modular Design: Customize your B1 with a variety of accessories and payloads, expanding its functionality and versatility.
• Easy-to-Use Interface: Control your robot with intuitive software and a user-friendly interface, making it accessible to users of all skill levels.
• Robust and Durable: Built to withstand challenging environments and perform reliably in various conditions.

Applications:

• Research & Development: Ideal for academic institutions and research labs for robotics, AI, and computer vision research.
• Education: Engage students with hands-on learning experiences in robotics, programming, and STEM fields.
• Entertainment: Bring excitement and innovation to events, exhibitions, and demonstrations.
• Industrial Applications: Explore potential uses in inspection, surveillance, and other industrial settings.
