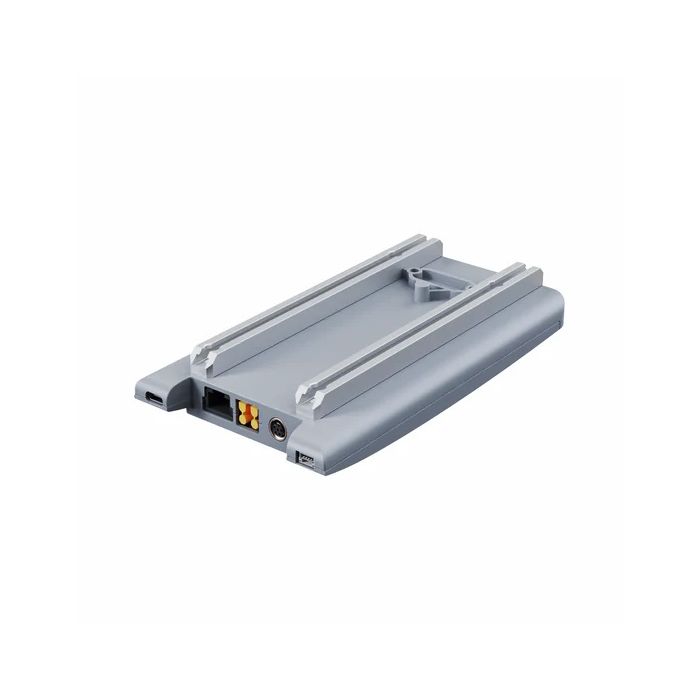

Unitree Go2-W Docking Station (With Orin Nx 100Tops)

Unitree Go2-W Docking Station (With Orin Nx 100Tops)

Go2-W itself is marketed as an “all-terrain driving” quadruped with in-wheel motors and 7-inch pneumatic tires, often used for inspection, patrol, and field robotics development. Unitree lists the platform as supporting secondary development and modular expansion, and identifies the standard expansion module on Go2-W as Orin NX, reinforcing the role of the docking station as part of the Go2-W professional deployment stack.

In reseller catalogs, the Go2-W docking station is also presented as a standalone accessory, frequently bundled with a description emphasizing 16–60V DC input, high-speed USB interfaces, and dual Ethernet connectivity, reflecting its use as a practical interface hub for sensors, external computing, and robotic integration.

Design and Features

Expansion dock architecture for onboard AI workloads

The Go2-W Docking Station is designed as an integrated compute-and-I/O hub that mounts to or interfaces with the Go2-W robot. Its primary purpose is to provide higher-performance AI inference and robotics processing using Jetson Orin NX computing capability. Official Go2 documentation lists expansion module options including Orin Nano 8GB and Orin NX 16GB, and notes that Orin NX can support up to 100 TOPS compute, positioning it for workloads such as real-time perception, mapping, and sensor fusion.

High-voltage wide input range for field robotics integration

A consistent specification across Unitree and reseller listings is the docking station’s 16–60V DC power input range, which is well-suited for robotics electrical systems and industrial field power conditions.
This wide range is commonly considered beneficial for platforms operating across varied power setups, including mobile robotics power buses and regulated DC supplies.

Multi-interface connectivity (USB + Ethernet + aviation connector)

The docking station is typically described as including multiple expansion interfaces intended for attaching peripherals such as depth cameras, LiDARs, external network devices, or storage accessories.

Commonly listed interfaces include:

• USB 3.0 Type-A (x1)

• USB Type-C (multiple ports, depending on revision/listing)

• Dual Gigabit Ethernet (RJ45 x2)

• Aux Ethernet header (GH1.25-4PIN, often listed as 100M Ethernet)

• M8 aviation / AirPlug connector (x1)

Some reseller pages use slightly different wording (for example, listing “100Gb Ethernet” via GH1.25-4PIN), but the recurring theme is that the docking station provides robotics-friendly wiring options and network expansion beyond consumer interfaces.

A foundation for “secondary development” and autonomy enhancement

Unitree presents Go2-W as a platform supporting secondary development, meaning developers can build custom behaviors, integrate third-party sensors, and implement autonomous functions.
In this context, the docking station’s Orin NX compute is used to accelerate AI pipelines—such as object detection, semantic segmentation, SLAM, or multi-sensor fusion—while maintaining an onboard, mobile form factor.

Technology and Specifications

Compute module

• Module class: Jetson Orin NX (commonly Orin NX 16GB)

• AI compute: Supports up to 100 TOPS

Power

• Power input range: 16–60V DC

Expansion interfaces (typical published set)

• USB 3.0 Type-A: x1

• USB Type-C: multiple ports depending on configuration

• Gigabit Ethernet (RJ45): x2

• Ethernet header (GH1.25-4PIN): x1

• M8 aviation connector: x1

Go2-W platform context (why the dock matters)

Unitree lists Go2-W as including multi-radio support (WiFi6 + 4G + Bluetooth), manual controller support, and a modular accessory approach—features that align with using an expansion dock for advanced field deployments.

Applications and Use Cases

Industrial inspection and autonomous patrol

A Go2-W robot equipped with an Orin NX docking station is commonly positioned for inspection and patrol scenarios, where perception and planning workloads can benefit from stronger onboard compute. Examples include facility rounds, perimeter monitoring, corridor traversal, and inspection of equipment zones where consistent data capture and AI interpretation can reduce manual workload.

Because Go2-W is built for mixed terrain and rolling efficiency, the docking station supports longer inspection loops where the robot can both move efficiently and process sensor inputs in real time.

Sensor integration and robotics R&D

The docking station’s mix of USB and Ethernet interfaces enables teams to integrate additional sensors such as depth cameras, LiDAR units, industrial network devices, or custom payload controllers. The Orin NX compute can run robotics stacks for mapping, perception, and navigation without depending on an external PC.

This makes the Go2-W docking station especially relevant for laboratories and engineering groups building custom autonomy features through secondary development.

Remote networking and fleet-style deployment

Dual Ethernet ports on the docking station can simplify reliable networking inside a facility—supporting direct connections to routers, edge compute nodes, or local recording systems. In multi-robot environments, onboard compute also helps reduce reliance on continuous high-bandwidth streaming by running more processing locally.

AI-assisted perception pipelines

The “up to 100 TOPS” compute class is frequently chosen for workloads such as:

• multi-camera perception and image processing

• semantic understanding of scenes for navigation

• object detection for security or inventory awareness

• path planning modules that benefit from faster inference cycles

Advantages / Benefits

Higher onboard AI compute for real-time autonomy

Compared with base CPU-only operation, an Orin NX docking station can significantly improve practical performance for AI inference workloads, helping the Go2-W platform run advanced perception pipelines with lower latency. Unitree explicitly associates Orin NX with up to 100 TOPS, indicating the dock’s role as a performance upgrade.

Robust connectivity for sensors and industrial systems

The combination of USB 3.0 and dual RJ45 Gigabit Ethernet supports professional sensor configurations, stable wired networking, and integration with industrial monitoring setups.

Wide DC input range for engineering flexibility

The 16–60V DC input range suits robotics power systems and field deployment conditions, where power delivery may vary across standardized DC infrastructures.

Supports scalable “secondary development” workflows

Go2-W is explicitly positioned as a platform for secondary development, and the docking station reinforces this by providing the compute headroom and interfaces often required for custom autonomy work and robotics integration.

FAQ Section

What is Unitree Go2-W Docking Station (with Orin NX 100 TOPS)?

It is an expansion computing dock for the Unitree Go2-W robot that integrates an Orin NX-class compute module and is commonly described as supporting up to 100 TOPS of AI performance for advanced robotics workloads.

How does the Go2-W docking station work?

The docking station adds onboard AI compute and expansion interfaces (USB and Ethernet) so the robot can run heavier perception and autonomy pipelines locally, while also connecting additional sensors and networking equipment.

Why is the Orin NX docking station important for Go2-W?

It provides compute headroom for real-time AI tasks—such as perception and navigation—while supporting professional connectivity through wired interfaces, which can be essential for inspection, patrol, and R&D deployments.

What are the benefits of the Go2-W docking station?

Key benefits include up to 100 TOPS compute, 16–60V DC power input, and expansion connectivity such as USB 3.0 and dual Gigabit Ethernet, enabling stronger autonomy performance and easier sensor integration.

Summary

The Unitree Go2-W Docking Station (with Orin NX 100 TOPS) is a specialized compute-and-connectivity expansion module designed to enhance the Go2-W robot’s autonomy and inspection capabilities. By integrating an Orin NX-class AI platform with up to 100 TOPS performance, a 16–60V DC input range, and professional I/O such as USB 3.0 and dual Gigabit Ethernet, it supports advanced perception pipelines, sensor integration, and secondary development workflows. For organizations using Go2-W in industrial inspection, patrol, or robotics R&D, the docking station provides a scalable foundation for deploying higher-performance AI capabilities directly onboard the robot.
