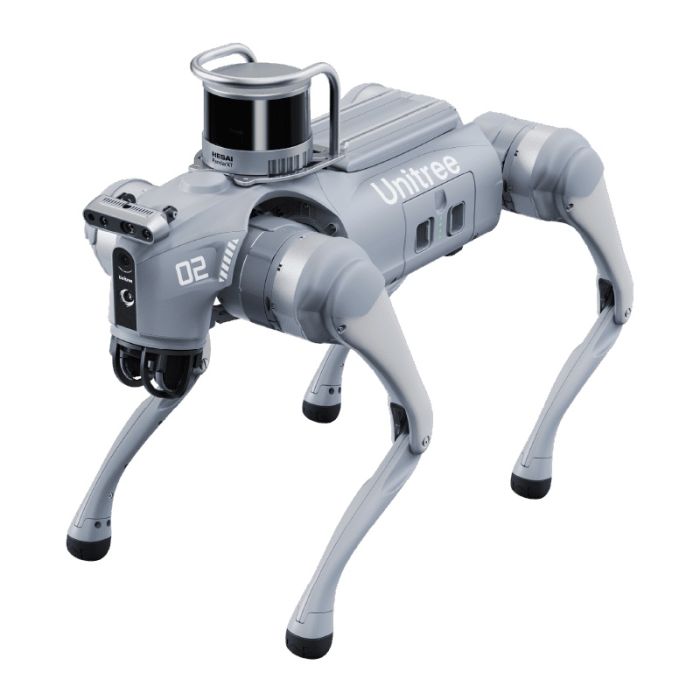

Unitree Go2 Edu Plus Hesai XT16 Quadruped Robot

Unitree Go2 Edu Plus Hesai XT16 Quadruped Robot

Experience the future of robotics with the Unitree Go2, the highly advanced and versatile intelligent robot dog. This cutting-edge quadruped robot redefines the boundaries of what's possible, offering unparalleled mobility, adaptability, and intelligence. Whether you're a tech enthusiast, a researcher, or simply looking for an innovative companion, the Go2 is designed to impress.

The “EDU Plus” designation is commonly used for versions that emphasize secondary development, expanded sensing, and higher computing options compared with entry-level consumer configurations.

A defining feature of the Hesai XT16 variant is its integration of a 360° 3D LiDAR sensor for mapping, perception, and Simultaneous Localization and Mapping (SLAM). Unitree’s developer documentation identifies the Go2 platform as compatible with two LiDAR options—MID-360 and Hesai XT16—used for SLAM navigation, making XT16 a practical choice for teams prioritizing reliable 3D perception and navigation workflows.

In research and academic settings, this configuration is typically positioned as a compact “robot dog” system for hands-on work in autonomous mobility, reinforcement learning, perception pipelines, ROS-based control, and real-world field testing.

Design and Features

Quadruped mobility platform

The Go2 series uses a four-legged (quadruped) chassis to traverse environments that challenge wheeled robots, such as uneven indoor flooring, thresholds, gentle outdoor terrain, and cluttered lab layouts. Retail product listings for Go2 EDU variants commonly describe compact dimensions and a portable footprint for campus or lab deployment.

EDU Plus development orientation

The EDU Plus labeling is widely associated with development features such as secondary development capability, support for programming and integration, and compatibility with higher-level perception modules. Several retailers position Go2 EDU/EDU Plus as a platform intended for education and research markets, including programmable operation and iterative improvements through software updates.

Hesai XT16 LiDAR integration

The Hesai XT16 is a multi-beam 3D LiDAR commonly used for SLAM, object detection, and mapping applications. Key published specifications include:

• 16 channels (laser beams)

• Field of view (FOV): 360° horizontal × 30° vertical

• Point rate: ~320,000 points/second (single return)

• Ranging accuracy: ±1 cm (commonly listed)

In the Go2 EDU Plus XT16 configuration, this LiDAR is used to support 3D environmental awareness, enabling researchers to build navigation stacks that rely on point clouds rather than only vision-based sensing.

Technology and Specifications

Perception and navigation (3D SLAM)

A primary technical motivation for selecting the Hesai XT16 version is SLAM navigation using dense point clouds. Unitree’s Go2 developer materials explicitly reference LiDAR-based navigation and state that Go2 can be equipped with either MID-360 or Hesai XT16 LiDAR for SLAM.

In practical robotics workflows, XT16 LiDAR data may be used for:

• Mapping and localization (2D/3D SLAM approaches)

• Obstacle detection and avoidance

• Autonomous route planning in structured spaces (labs, corridors, warehouses)

• Dataset collection for perception and embodied learning experiments

Battery and runtime

Go2 EDU product descriptions commonly cite a 15,000 mAh battery and a runtime range that can reach up to ~4 hours, depending on motion intensity, payload, and compute load.

Speed and mobility claims (as listed by sellers)

Retail listings for Go2 EDU Plus variants frequently reference a maximum running speed in the range of ~3.7 m/s for certain configurations.
(Note: real-world speed depends on terrain, gait selection, firmware, and safety limits.)

Charging and power details (typical listing values)

Some EDU Plus spec sheets list fast-charging components such as 33.6 V / 9 A chargers and charge times around ~1.5 hours, reflecting a design emphasis on quick lab turnaround.

Applications and Use Cases

Robotics education and university labs

The Go2 EDU Plus XT16 is widely marketed for academic use, where it can serve as a practical platform for courses and student projects involving:

• Mobile robotics fundamentals

• SLAM and navigation development

• Motion planning and control

• Perception engineering using LiDAR point clouds

SLAM research and mapping experiments

Because the Hesai XT16 provides full-surround scanning, it supports experiments involving:

• Indoor 3D mapping

• Corridor localization

• Loop-closure behavior in SLAM pipelines

• Comparing LiDAR-only vs LiDAR+vision navigation performance

Autonomy prototyping for inspection and patrol concepts

In applied R&D, quadrupeds are frequently evaluated for prototyping inspection-like behaviors: scanning rooms, following routes, identifying obstacles, and navigating dynamic spaces where wheeled platforms may struggle.

Developer-friendly integration workflows

Go2 developer documentation and EDU-market positioning encourage integration work such as:

• ROS-based pipelines

• Data logging and dataset generation

• On-robot autonomy experiments using a LiDAR-centric stack

Advantages / Benefits

Strong fit for LiDAR-based autonomy development

The Hesai XT16 option provides a known LiDAR specification profile—360° perception, 16 channels, and high point density—enabling consistent SLAM and mapping experiments.

Quadruped mobility in real-world environments

Compared with purely wheeled platforms, quadrupeds can be evaluated on irregular floors, transitions, and mixed indoor/outdoor test spaces—useful for robotics labs seeking realism without full-scale field robots.

EDU Plus positioning for long sessions

Published battery capacities and runtime claims (15,000 mAh; up to ~4 hours in some listings) support longer lab sessions and repeatable testing cycles.

FAQ Section

What is the Unitree Go2 EDU Plus (Hesai XT16)?

The Unitree Go2 EDU Plus (Hesai XT16) is a research- and education-oriented quadruped robot configuration that integrates a Hesai XT16 3D LiDAR for mapping, perception, and SLAM navigation workflows.

How does the Hesai XT16 LiDAR help the Go2 robot dog work autonomously?

The XT16 produces a continuous 360° 3D point cloud (commonly listed as 360° × 30° FOV with ~320k points/sec), which autonomy software can use for SLAM, obstacle detection, and route planning.

Why is the Go2 EDU Plus important for robotics education and research?

EDU-oriented quadruped systems are used to teach and test real autonomy systems in the physical world. Unitree’s developer documentation highlights Go2’s LiDAR options (including XT16) for SLAM navigation, supporting structured learning and experimentation.

What are the benefits of choosing the Hesai XT16 version over other sensor options?

The XT16’s published specifications (16 channels, 360° × 30° FOV, and high point density) make it a practical choice for LiDAR-centric SLAM and mapping, especially in research pipelines designed around point clouds.

Summary

The Unitree Go2 EDU Plus (Hesai XT16) is a quadruped “robot dog” configuration built for education, research, and embodied AI prototyping, distinguished by its integration of the Hesai XT16 3D LiDAR for SLAM navigation and point-cloud perception. With published LiDAR specifications and widely cited EDU-series battery/runtime claims, it is positioned as a practical platform for teams developing real-world autonomy, mapping, and robotics software in laboratories and controlled field environments.

Key Features:

• 1. Equipped with all the functions of Go2 Edu Plus (100 Tops computing)
  2. 3D LIDAR Mid-360 with navigation algorithms and technical support.
  3. Provide power supply voltage range: 16V-60V, 1 USB3.0-Type A, 2 USB3.0-Type C and 2 Gigabit Ethernet ports (standard RJ45),
  also with 1 100Gb Ethernet (GH1.25-4PIN) and 1 M8 air plug interface.
  4. Optional servo arm
