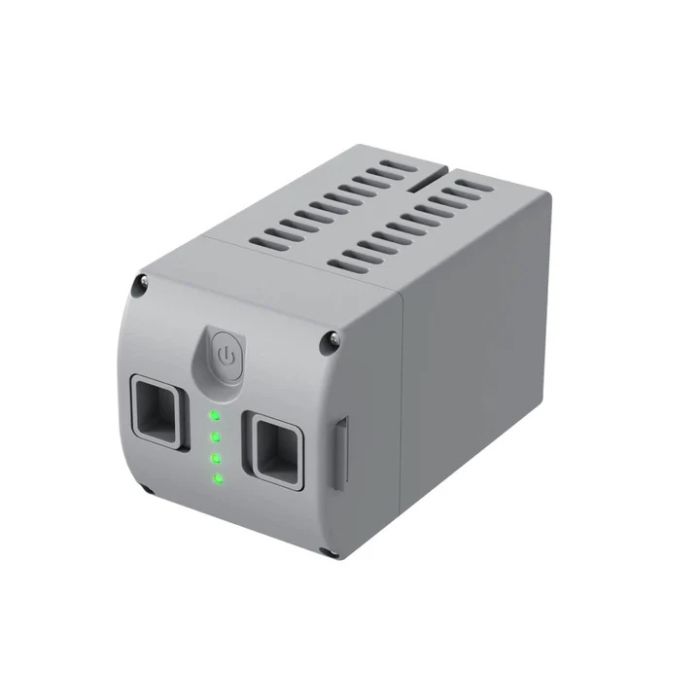

Unitree G1 Battery (G1-BATTERY)

G1 Battery G1 Series Accessories (G1-Battery) (G1-BATTERY)

Unitree markets the G1 with a smart quick-release battery system and a typical battery life of about 2 hours, depending on workload, motion intensity, and configuration. The battery itself is described in official documentation as a “smart battery” featuring integrated charge/discharge management and an independently developed Battery Management System (BMS) that provides safety protections and operational monitoring.

In practice, the Unitree G1 Battery is used both as the primary power module shipped with the robot and as an additional spare battery for uninterrupted operation, rapid turnaround between sessions, and high-duty research or demonstration workflows.

Design and Features

Smart battery with integrated management

The G1 battery is designed as a managed power module rather than a passive cell pack. Unitree’s battery manual states it includes integrated charge and discharge management, supported by an advanced, self-developed BMS intended to provide stable power and safe operation.
This design approach is common in modern robotics batteries, where the battery pack actively monitors voltage, current, temperature, and state-of-charge to protect both the robot and the power system.

Quick-release form factor for fast swaps

On the official G1 product page, Unitree lists the battery as “Smart Battery (Quick Release) 9000mAh”, reflecting an emphasis on rapid exchange rather than long downtime charging-only workflows.
Quick-release batteries are typically favored in humanoid development environments because they support continuous testing, faster demo setup, and simplified logistics for teams that operate the robot in repeated sessions.

Compact housing with indicator and latch features

The battery manual identifies a dedicated mechanical and electrical interface system, including a power switch, fastener/tab structure, LED indicators, and separate charge/discharge interfaces.
These features support predictable installation behavior and visible status checks in the field.

Built-in storage protection behaviors

A notable feature documented in the user manual is storage self-discharge protection: if the battery is stored for 10 days above 65% state-of-charge and not used, it can automatically discharge down to approximately 65% to preserve long-term battery health.
This is an important operational detail for labs or organizations that use the robot intermittently.

Technology and Specifications

Electrical specifications

The Unitree battery manual provides detailed specifications for the G1 battery pack:

• Rated voltage: 46.8 V DC

• Limited charge voltage: 54.6 V DC

• Rated capacity: 9000 mAh, 421.2 Wh

• Over-discharge cutoff behavior: the battery can cut off power output at 39 V to prevent serious damage

Unitree also indicates the G1’s power supply is a 13-string lithium battery, aligning with the pack voltage class shown in the battery manual.

Physical dimensions

The battery is designed to fit the G1’s body structure and quick-release compartment:

• Battery size: 120 mm × 80 mm × 182 mm

These dimensions are also repeated in commercial listings that match the official manual’s figures.

Charger and charging performance

Unitree’s G1 documentation lists a charger spec of 54V 5A, and the battery manual further specifies the charger’s output precisely:

• Charger output: 54.6 V, 5.5 A (300.3 W)

• Charger input: 100–240 V~, 50/60 Hz

• Typical charging duration: approximately 1.5 hours

From an operational standpoint, this is a relatively fast recharge profile for a ~421 Wh robotics battery and supports frequent use cycles.

Temperature and protection limits

The Unitree G1 battery manual outlines key thermal and electrical protection behaviors, including:

• Charging temperature range: 0°C to 55°C

• Discharge (operation) range: −20°C to 60°C

• Over-current protection (charging): charging stops if current exceeds 10 A

• Short-circuit protection: immediate cutoff on detected short circuit

• Load detection protection: battery cannot power on unless correctly inserted; removal can trigger automatic shutdown

These features are especially important in humanoid robots, where large motors and dynamic movement can cause high current peaks and challenging thermal conditions.

Applications and Use Cases

Humanoid robot operation and demonstrations

The primary use is powering the Unitree G1 for everyday operation—walking, balancing, voice interaction features, and demonstration scenarios. Unitree’s official product page states a typical battery life of about 2 hours, which is often sufficient for structured demo blocks, classroom sessions, and controlled pilot deployments.

Research labs and iterative development

In R&D environments, battery workflow can determine how efficiently teams iterate on:

• locomotion tuning and gait experiments

• teleoperation training and safety trials

• sensor calibration and mapping workflows

• AI testing (vision perception, onboard inference, and multimodal control)

Because the G1 battery is quick-release, labs can add spare packs to reduce downtime, keeping the robot available for continuous experiment cycles.

Field testing and high-tempo sessions

For organizations running repeated sessions (multiple training groups, exhibitions, or client demos), additional batteries allow practical rotation: one pack in use while another charges. The charger’s documented ~1.5 hour charging duration supports this operational style.

Storage and fleet management

The storage self-discharge protection to ~65% after extended idle time is specifically relevant for fleet owners who must keep batteries healthy over long intervals between deployments.

Advantages / Benefits

Reliable, safety-managed power delivery

The G1 battery includes a BMS and documented protections such as overcharge/over-discharge cutoffs, short-circuit protection, charge temperature limits, and current protection.
These features reduce risk during charging and operation and help protect costly robotics systems.

Quick-release design improves uptime

Unitree’s quick-release battery concept supports fast swaps, which is critical for humanoid applications where testing and demonstration time can be limited and schedules are tight.

Strong energy capacity for a compact module

With 9000 mAh / 421.2 Wh capacity in a compact enclosure, the battery is engineered for high-power robotics use rather than low-drain consumer electronics.

Fast turnaround with matched charging system

The official charger output rating and ~1.5 hour charge duration allow faster rotation of packs in active environments.

FAQ Section

What is the Unitree G1 Battery (G1-BATTERY)?

The Unitree G1 Battery (G1-BATTERY) is a smart quick-release battery pack for the Unitree G1 humanoid robot, providing managed power delivery with BMS safety protections.

How does the Unitree G1 Battery work?

It works by delivering regulated high-voltage DC power to the robot while the internal BMS monitors voltage, current, temperature, and charge status. The battery includes overcharge, over-discharge, short-circuit, and charging temperature protections.

Why is the Unitree G1 Battery important?

It is important because battery performance determines uptime and mission duration. Unitree lists about 2 hours of battery life for the G1, and the quick-release system supports fast swaps to reduce downtime.

What are the benefits of the Unitree G1 Battery?

Key benefits include smart BMS protections, a quick-release swap design, 421.2 Wh energy capacity, and a matched charging system with an approximate 1.5-hour charge duration under the official charger specifications.

Summary

The Unitree G1 Battery (G1-BATTERY) is a smart, quick-release lithium battery pack engineered specifically for the Unitree G1 humanoid robot. With documented specifications including 46.8V rated voltage, 54.6V charge limit, and 9000 mAh / 421.2 Wh capacity, it provides the high-energy output required for humanoid locomotion and onboard computing. Its integrated BMS adds important protections—overcharge control, over-discharge cutoff, temperature safeguards, short-circuit protection, and storage self-discharge behavior—making it suitable for professional deployment, research labs, and frequent demo workflows where reliability and safe charging are critical.
