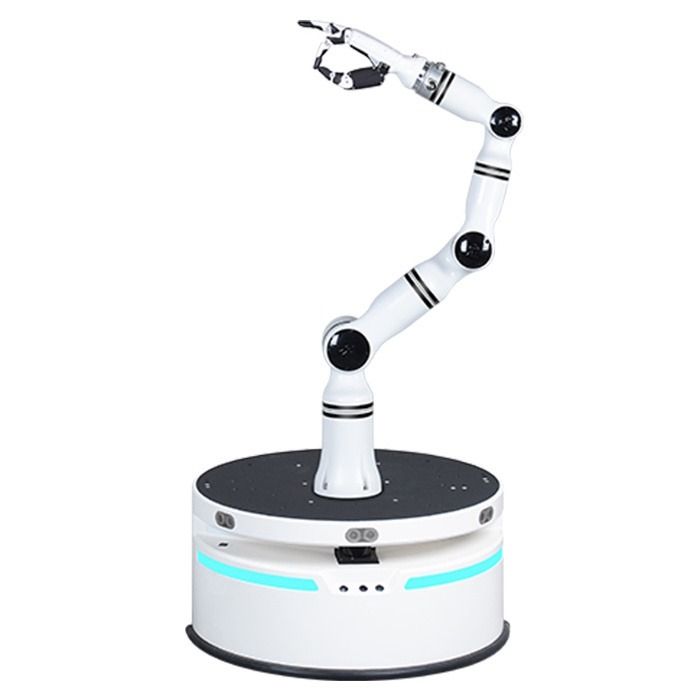

Realman Robotics Compound Robot (RMC-BA)

Compound Robot (RMC-BA)

RealMan describes the RMC-BA concept as integrating a mobile robot and robotic arm that can be equipped with automated grippers, machine vision systems, intelligent screwdrivers, and other execution units. This “compound” integration enables the robot to move materials and also join production processes for task-specific operations that are difficult to address with one-off non-standard automation equipment.

Design and Features

Integrated mobile base + robot arm architecture

The defining feature of the RMC-BA is its single-platform integration of:

• a mobile chassis (AGV/AMR base),

• a robotic arm for manipulation,

• optional end effectors (grippers or dexterous hands),

• optional vision sensing and application tooling.

Tooling and execution units

RealMan’s brochure explicitly notes that the compound robot can be mounted with automated grippers, visual systems, and intelligent screwdrivers as execution units.
In the same document’s component listings, the end-effector ecosystem includes both a gripper and a dexterous hand option (shown as separate component categories).

Safety and obstacle avoidance emphasis

RealMan lists multiple safety/protection functions for the RMC-BA platform, including laser scanning obstacle avoidance, visual obstacle avoidance, and force sensors (with similar safety wording used across its compound platform family).

Technology and Specifications

Core platform specifications (RMC-BA)

In RealMan’s “Leader of Ultra-Lightweight Humanoid Robotic Arm” brochure, the RMC-BA parameter block includes:

• Model: RMC-BA

• Total height: 1355 mm

• Weight: ~53 kg

• Charging power supply: Single-phase three-wire 220 V ±10% 50 Hz

• Positioning accuracy: ±5 cm

• Security protection: laser scanning obstacle avoidance, visual obstacle avoidance, force sensors (etc.)

• External interfaces: Network interface, USB, HDMI

• Working environment: 0°C to 50°C, relative humidity ≤85% (25°C), altitude <4000 m

• Moving speed: 1 m/s

Main control module (embedded compute)

The brochure’s compound platform section also lists a main-control module architecture featuring an NVIDIA Carmel ARM CPU and NVIDIA Volta GPU (384 CUDA cores and 48 Tensor cores), paired with 8 GB LPDDR4x memory and a 128 GB SSD (shown in the main control module block used across compound platforms in the brochure).

Mobile chassis and navigation (family component specification)

In the same brochure section that enumerates compound platform components, the mobile chassis is described with an eight-wheel layout (drive wheels + universal wheels + auxiliary wheels), differential drive + active suspension, hub servo motors (250 W × 2), and LiDAR navigation, plus a battery listing and indicative operating hours. These values are presented as chassis/component parameters for the compound platform ecosystem.

Applications and Use Cases

Intelligent manufacturing and flexible production support

RealMan positions the compound robot as capable of both material movement and participation in task-specific processing operations on a production line—bridging transport and manipulation in one system.
In practice, this design maps to modern “flexible automation” goals, where factories aim to reconfigure workcells quickly without dedicating fixed robots to every station.

Material handling, kitting, and internal logistics

With autonomous movement (navigation + obstacle avoidance) and a robotic arm, compound robots are commonly used for:

• delivering bins or parts to stations,

• removing completed items from fixtures,

• basic picking or handoff workflows between zones.

RealMan explicitly frames the compound robot as suitable for moving materials and operating with tool modules, which aligns with internal logistics and handling tasks.

Tool-based operations (e.g., screwdriving)

Because RealMan mentions intelligent screwdrivers as supported execution units, a typical use case is mobile tool deployment—bringing a controlled tool head to multiple points in a facility without duplicating fixed tooling at each position.

Advantages / Benefits

One platform for “move + manipulate”

The primary benefit of the RMC-BA design is combining autonomous mobility with manipulation. RealMan’s brochure contrasts this capability with traditional robots by highlighting that the compound robot can both move materials and perform specific processing operations rather than being limited to a fixed workcell.

Expandable execution ecosystem (grippers, vision, tools)

RealMan’s compound robot description emphasizes modularity—mounting grippers, vision systems, and specialized tools. This approach supports faster adaptation to new tasks without redesigning the full automation line.

Safety and navigation features for shared spaces

RealMan’s listed safety stack—laser scanning obstacle avoidance, visual obstacle avoidance, and force sensing—targets operation in dynamic indoor environments where robots may share space with people, carts, and other equipment.

FAQ Section

What is the Realman Robotics Compound Robot (RMC-BA)?

The RMC-BA is a compound (mobile manipulation) robot that integrates an AGV/AMR mobile base with a robotic arm, enabling both autonomous movement and task execution using grippers, vision systems, and other tools.

How does the RMC-BA work?

RMC-BA navigates within an indoor environment using autonomous mobility features and safety sensing (including laser and vision obstacle avoidance) and then uses its robotic arm and end effector to perform localized operations such as handling, positioning, or tool-based tasks.

Why is the RMC-BA important?

Mobile manipulation platforms like RMC-BA address automation gaps where work occurs across multiple locations. RealMan positions the compound robot as able to both move materials and participate in specific operations—supporting more flexible, reconfigurable automation than fixed workcells alone.

What are the benefits of the RMC-BA?

Key benefits include integrated mobility + manipulation, support for grippers/vision/tool modules, and a safety stack that includes laser scanning obstacle avoidance, visual obstacle avoidance, and force sensors, designed for operation in complex indoor environments.

Summary

The Realman Robotics Compound Robot (RMC-BA) is a mobile manipulator that integrates an AGV/AMR-style base with a robotic arm and supports modular execution units such as grippers, vision systems, and intelligent screwdrivers. RealMan positions it for complex, high-precision environments where autonomy and mobility are essential, and official specifications list a 1355 mm height, ~53 kg mass, 1 m/s moving speed, ±5 cm positioning accuracy, and multiple safety/protection features including laser scanning and visual obstacle avoidance.
