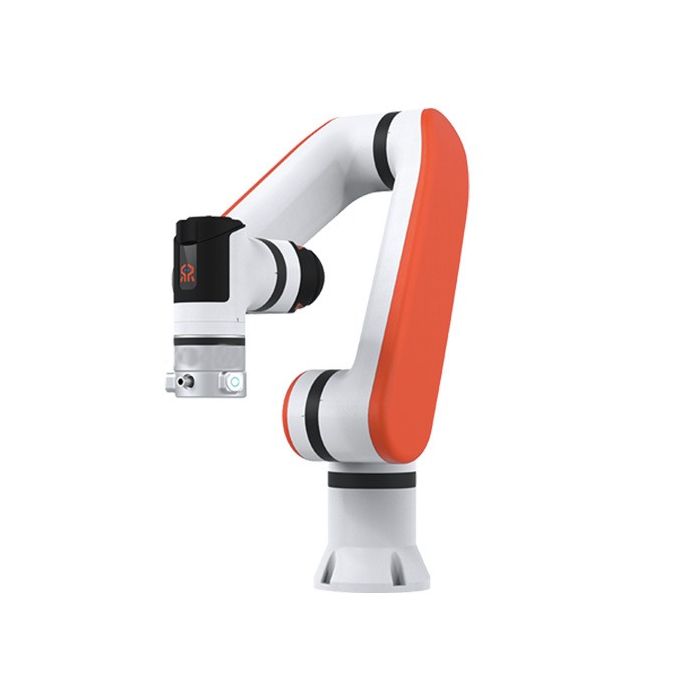

Realman Robotics 6-DOF Ultra-Lightweight Robotic Arm (ECO65-6F)

ECO65-6F 6-DOF Ultra-lightweight Humanoid Robotic Arm (ECO65-6F)

RealMan (also styled “RealMan”) positions its product line around “ultra-lightweight humanoid robotic arms,” and states it has developed key motion-control components in-house (including controllers, drivers, servo motors, and harmonic reducers) as part of its engineering approach.

Design and Features

Ultra-lightweight, integrated architecture

A defining characteristic of the ECO65-6F is its integrated controller—the control cabinet and arm are designed as a single combined system with a total weight of about 7.9 kg.This compact integration can reduce footprint and wiring complexity compared with setups that require a separate control box.

Materials and protective rating

RealMan lists the ECO65-6F construction as aluminum alloy + ABS, and specifies an IP54 rating for the robotic arm body, indicating limited dust ingress and protection from splashing water (commonly relevant for light industrial environments rather than washdown).

6-axis force capability (force-aware manipulation)

The “-6F” variant includes a six-axis force capability; RealMan specifies a force range of 200 N / 7 Nm and a force accuracy of ≤0.1% FS. In practical terms, force/torque sensing can support contact-rich tasks such as compliant insertion, surface following, and safer human-robot interaction behaviors when properly engineered at the system level.

Technology and Specifications

Core specifications (manufacturer-published)

RealMan publishes the following key specifications for the ECO65-6F:

Power and lifecycle notes

RealMan notes that while the arm operates in the DC range above, initialization/self-tuning at power-on may require a higher instantaneous current capability (RealMan suggests a supply that can deliver 20 A or higher momentarily).
The company also states a continuous service life of 30,000 hours under rated load, and reports MTBF testing certification from the Shanghai National Robot Testing Center.

Software openness

RealMan states the controller’s internal programs are not open-source, describing them as core proprietary software, while also describing selective openness for capable developers under agreement in certain contexts.

Applications and Use Cases

Because it combines human-scale reach, DC power, and multiple communications interfaces (including network and serial options), the ECO65-6F is often positioned for integration into compact automation stacks such as:

• Benchtop and light industrial automation: pick-and-place, kitting, small-part handling, dispensing, and basic assembly operations where a ~5 kg payload class is sufficient.

• Force-guided tasks: applications that benefit from force/torque feedback (e.g., compliant insertion, gentle handling, surface contact workflows), leveraging the six-axis force capability specified by the manufacturer.

• R&D, education, and prototyping: API/JSON control and diverse connectivity can support quick experimentation in robotics labs and developer environments.

• Mobile manipulation concepts: the low overall mass and integrated controller can be attractive for mounting on carts or AMR platforms where payload and power budgets are constrained (implementation details depend on the broader mobile base and safety design).

Advantages / Benefits

High load-to-weight ratio for its class

With a 7.9 kg integrated weight and 5 kg rated payload, the ECO65-6F targets a favorable payload-to-mass profile that can simplify mounting and reduce structural requirements for small fixtures and benchtop stations.

Integration and connectivity for faster deployment

RealMan’s published support for Wi-Fi, Ethernet/network, Bluetooth, USB serial, and RS485, plus teaching methods and API/JSON control, can reduce integration friction across industrial PCs, embedded controllers, and common automation architectures.

Force-capable variant for contact tasks

Compared with non-force variants, the ECO65-6F’s stated six-axis force range and accuracy can expand the set of feasible tasks to include more compliant and contact-aware behaviors, when paired with appropriate control software.

FAQ Section

What is the RealMan Robotics ECO65-6F?

The ECO65-6F is a 6-DOF ultra-lightweight humanoid robotic arm with an integrated controller, designed to handle up to 5 kg rated payload with a 638.5 mm working radius, and equipped with six-axis force capability.

How does the ECO65-6F work?

The ECO65-6F uses a multi-joint servo-driven arm (6 axes) coordinated by an integrated controller, supporting operation through teaching methods (including drag-and-drop teaching and a teaching pendant) and programmatic control via API/JSON interfaces.

Why is the ECO65-6F important?

Its combination of low system weight, 5 kg payload class, and six-axis force sensing can make it useful for compact automation and contact-aware tasks where space, mounting constraints, or power budgets are limited.

What are the benefits of the ECO65-6F?

Key benefits include an integrated controller, multiple communication options (Wi-Fi/Ethernet/Bluetooth/USB/RS485), API/JSON control, and six-axis force capability (200 N / 7 Nm range specified by the manufacturer).

Summary

The RealMan Robotics ECO65-6F is a compact, ultra-lightweight 6-DOF humanoid robotic arm built around an integrated controller and six-axis force capability, combining a 5 kg rated payload, 638.5 mm reach, and broad connectivity (including API/JSON control) for flexible integration. With published lifecycle and power guidance and a form factor suited to benchtop and space-constrained deployments, it is positioned as a practical option for organizations seeking force-aware automation in a lightweight package.
