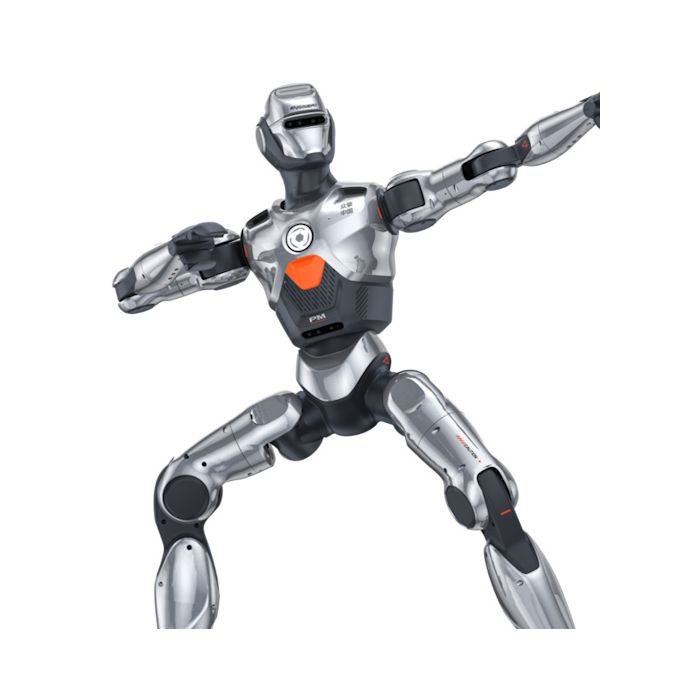

Engineai PM01 Education Version Humanoid Robot

Engineai PM01 Education Version Humanoid Robot

PM01 is part of a broader industry shift toward more affordable, programmable humanoid robots that can be used beyond large industrial pilots—particularly by universities, training centers, and innovation labs. Public demos and product announcements have highlighted PM01’s naturalistic walking behaviors, multiple control modes, and emphasis on open development workflows.

Design and Features

Physical form factor and mobility

EngineAI describes PM01 as a lightweight embodied intelligent agent. The platform is widely reported at approximately 1.38 m tall with a 24-degree-of-freedom (DoF) configuration, enabling full-body bipedal locomotion and expressive upper-body motion.

In official launch materials, PM01 is described as weighing around 40 kg and reaching a movement speed of up to ~2 m/s in supported modes. The waist is stated to support ~320° rotation, improving turning agility and expanding the robot’s reachable workspace for interactive motions and dynamic maneuvers.

Human-facing interaction design

A notable design element frequently mentioned in PM01 coverage is its touchscreen-style interaction interface integrated into the torso, intended for quick command input, status visibility, and on-device interaction. This embedded UI is presented as a practical feature for classroom demos, lab experimentation, and operator control.

Technology and Specifications

Degrees of freedom and actuation concepts

PM01’s 24-DoF body architecture is intended to support stable bipedal walking, turning, and whole-body balance behaviors. EngineAI’s official product messaging also highlights torque density as a key mechanical performance metric, listing 130 N·m/kg peak torque density for PM01.

Compute architecture and AI acceleration

A recurring theme in PM01 technical positioning is its AI-ready compute stack. Launch communications describe a configuration combining an x86-based computing suite with an NVIDIA Jetson Orin module, enabling on-robot acceleration for perception and control workloads and simplifying experimentation with modern robotics software stacks.

Learning-based locomotion and data-driven motion

PM01’s launch announcement describes a workflow grounded in an end-to-end neural network approach supported by optical motion capture collection of human movement data. The same materials cite reinforcement learning (RL) and imitation learning as core techniques for achieving stable locomotion and adaptability across complex environments.

Open-source development and deployable control software

EngineAI maintains a public GitHub repository describing a humanoid locomotion control framework used for RL policy deployment on real robots, with documentation covering dependencies, compilation, and joystick-based control flow. The repository states it is designed to support both learning-based and model-based approaches over time, and references a companion RL training environment.

Applications and Use Cases

Robotics education and teaching labs

The PM01 Education variant is explicitly positioned for education use, aligning with university curricula and hands-on robotics training programs.
Typical deployments include:

• Biped locomotion experiments (balance, gait stability, turning control)

• Reinforcement learning labs (policy training, deployment, sim-to-real workflows)

• ROS-based robotics coursework (message passing, teleoperation, sensor integration)

• Capstone projects in perception, manipulation foundations, and human–robot interaction (HRI)

Research and embodied AI prototyping

PM01 is also used as a general-purpose humanoid research platform for embodied intelligence investigations, where developers test AI behaviors in a human-centric body shape suitable for environments built around people. Reports from CES coverage emphasize PM01’s role in showcasing lower-cost humanoid R&D platforms that still include modern AI acceleration and interaction capabilities.

Demonstrations, outreach, and robotics communication

Humanoid platforms are frequently adopted for public demonstrations because their movements and interaction patterns are easy to interpret. PM01’s combination of bipedal walking, onboard interface, and compact size supports:

• STEM outreach and open-house demos

• Robotics club competitions and exhibitions

• Rapid prototyping for gesture- and voice-driven interactions (where supported)

Advantages / Benefits

Accessible humanoid experimentation

PM01 has been highlighted as part of a “price break” trend in humanoid robotics, reducing barriers for labs that previously could not justify six-figure platforms. Coverage of CES described EngineAI PM01 as available at a promotional price point during a defined window, reinforcing its positioning as a more accessible entry to humanoid experimentation.

AI-forward compute stack

By pairing x86 compute + Jetson Orin acceleration, PM01 is designed to support modern AI workloads and rapid experimentation cycles—useful for institutions that want to test perception and control ideas directly on hardware.

Open development pathway

EngineAI’s public repositories and deployment documentation suggest a deliberate effort to provide developers with a reproducible path from training to real-robot deployment, especially for locomotion control.

FAQ Section

What is EngineAI PM01 Education Version (PM01 Education)?

EngineAI PM01 Education Version is a humanoid robot platform built for robotics education and research, featuring a compact 1.38 m body, 24 DoF, and an AI-oriented compute design for development and experimentation.

How does PM01 Education work?

PM01 Education operates as a bipedal humanoid platform that uses data-driven locomotion approaches (including reinforcement learning and imitation learning) and can be controlled via interactive methods such as a touchscreen interface and developer tooling.

Why is PM01 Education important?

PM01 Education is important because it lowers the barrier to hands-on humanoid robotics learning—enabling universities and labs to teach biped locomotion, AI control, and embodied intelligence with a modern, developer-oriented platform.

What are the benefits of PM01 Education?

Key benefits include a compact humanoid form factor for real-world testing, 24 DoF for biped dynamics, AI-ready compute (x86 + Jetson Orin), and developer-facing open-source deployment resources for locomotion workflows.

Summary

EngineAI PM01 Education Version (PM01 Education) is a compact humanoid robot intended for education and applied R&D, combining a 1.38 m, 24-DoF biped platform with an AI-ready compute architecture and developer-facing resources. With published emphasis on reinforcement-learning-based locomotion, open deployment tooling, and classroom-friendly interaction design, PM01 Education is positioned as a practical entry point for institutions seeking modern, hands-on humanoid robotics experimentation.
