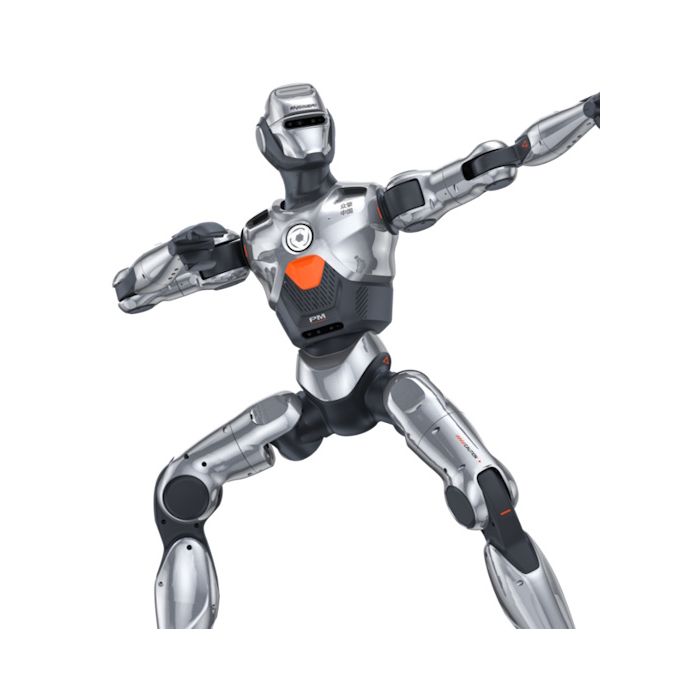

Engineai PM01 Commercial Version Humanoid Robot

Engineai PM01 Commercial Version Humanoid Robot

PM01 gained significant visibility after public demonstrations and media reporting highlighted its compact footprint, high mobility speed (reported up to 2 m/s), and a high-rotation waist joint (reported around 320°) that supports expressive, dynamic motions. Within the PM01 line, the Commercial Version is commonly described as the more deployment-oriented edition, contrasted with an Education/Developer-oriented version that adds compute, sensors, and secondary-development support.

Design and Features

Humanoid form factor optimized for compact operation

PM01 is generally described in launch coverage as roughly 1.38 m tall and around 40 kg, aiming for a size that can operate indoors and in structured public environments while remaining easier to transport than full-size humanoids.
On EngineAI’s official PM01 page, the Commercial Version dimensions are listed as 1400(H) × 535.55(W) × 252.66(D) mm (standing state), with ~42 kg weight including battery.
(These differences reflect that PM01 specs are sometimes reported as 1.38 m / ~40 kg in general news coverage, while the manufacturer’s PM01 commercial-edition listing presents a 1400 mm height and ~42 kg weight for that specific configuration.)

Degrees of freedom and body articulation

A key design attribute is PM01’s multi-joint articulation. General launch reporting describes PM01 at 24 DoF, while EngineAI’s official PM01 page specifies 23 DoF for the Commercial Version and 24 DoF for the Education Version.
This configuration supports complex postures, turning behaviors, and expressive motion—especially when combined with the platform’s waist rotation and leg kinematics.

High-rotation waist joint for expressive movement

State media reporting describes PM01 as having a waist motor capable of about 320° free rotation, enabling a large range of turning and twisting movements useful for demonstrations and service-style interactions.
EngineAI’s own PM01 page also provides waist joint motion range data (expressed as angular limits), reflecting the waist as a central mobility and expressiveness feature of the platform.

Interaction and operator control

General reporting describes PM01 as including an interactive “core screen” used for commands and information display via touch interaction.
However, EngineAI’s official PM01 table indicates the Commercial Version is configured with no touch screen (“触摸屏幕 ×”) while still supporting a handheld controller. This suggests that touch-screen interaction may be present in certain PM01 configurations or in specific demos, while PM01 Commercial emphasizes operator-driven control and simplified user I/O.

Technology and Specifications

Manufacturer-listed specifications for PM01 Commercial

EngineAI’s official PM01 product page provides a detailed parameter section for the Commercial Version, including:

• Dimensions (standing): 1400(H) × 535.55(W) × 252.66(D) mm

• Weight (with battery): ~42 kg

• Total DoF: 23

• Peak supported movement speed: “> 2 m/s (hardware support)”

• Battery (quick-release): 10,000 mAh; runtime ~2 hours

• Charging: 54.6V 4.5A; ~2 hours to full

• Basic compute: “4-core high-performance CPU”; no high-compute module listed

• Secondary development: not supported (二次开发 不支持)

• Perception sensors: listed as “/” for Commercial (i.e., not specified/none in that table row)

• Lighting: eye and hip lights; handheld controller supported

The same official page documents Education Version differences (useful for comparison): 24 DoF, two depth cameras (head + waist), an NVIDIA Jetson Orin NX (16G) “high-compute module,” touch screen enabled, and secondary development supported.

Publicly reported PM01 performance and control approach

State media and financial/tech reporting describe PM01 as reaching 2 m/s movement speed, offering two walking modes often characterized as mechanical gait and a more human-like natural gait, and using learning-based methods (reinforcement learning and imitation learning) combined with optical motion capture data and end-to-end approaches to improve motion realism and generalization.
These descriptions are typically presented as part of PM01’s broader platform story and may reflect software capabilities demonstrated at launch rather than guarantees for every edition in every operating condition.

Applications and Use Cases

Commercial demonstrations and brand experiences

PM01 Commercial is commonly positioned for commercial use, including product showcases, exhibitions, and public demonstrations where a humanoid’s motion capabilities and “human-like” presence are central to engagement.
A humanoid platform with expressive torso motion and stable gait is well-suited to scripted interactions, stage presentations, and guided demonstrations that require repeatability.

Structured service environments

Humanoid robots are often evaluated for structured service environments (e.g., controlled venues, corporate lobbies, and events) where human-facing interaction matters more than heavy payload manipulation. PM01’s compact size and reported speed/waist articulation support navigation and expressive interaction in such spaces, especially when paired with operator control workflows.

Integrator and deployment scenarios where development openness is not required

EngineAI’s official listing indicates the Commercial Version does not support secondary development, which implies a product segmentation: PM01 Commercial targets users who want a ready platform for operation and demonstrations, while PM01 Education targets teams building new autonomy or perception features.

Advantages / Benefits

Lower complexity configuration for faster deployment

By omitting a listed high-compute module and secondary-development support in the Commercial configuration, PM01 Commercial can be framed as a deployment-first edition focused on running validated behaviors and workflows with simplified operational overhead.

High mobility potential in a compact humanoid size

Both manufacturer specs and major reporting emphasize that PM01-class robots aim for fast, dynamic motion relative to their compact size, with speed figures around 2 m/s appearing consistently in launch-era coverage and on the official product page.

Expressive trunk rotation and demo-friendly motion range

The widely reported ~320° waist rotation supports expressive turning, pose transitions, and performance-style movement sequences that are valuable in commercial demonstrations.

FAQ Section

What is EngineAI PM01 Commercial Version (PM01 Commercial)?

EngineAI PM01 Commercial is the commercial configuration of EngineAI’s PM01 humanoid robot, designed for operational use cases where a ready platform is preferred over a full developer stack.

How does EngineAI PM01 Commercial work?

PM01 Commercial uses a multi-DoF humanoid body (manufacturer lists 23 DoF for the commercial edition) with a handheld controller and a battery-based power system. Public reporting describes PM01’s gait and motion generation as learning-assisted (RL + imitation learning), though software capabilities can vary by edition and deployment configuration.

Why is EngineAI PM01 Commercial important?

PM01 Commercial is notable because it represents a lower-complexity, commercially positioned humanoid configuration within a product line that also includes an education/developer edition—supporting broader adoption across demos and structured service scenarios.

What are the benefits of EngineAI PM01 Commercial?

Manufacturer-listed benefits include a compact standing footprint (1400 mm height) with ~42 kg weight, 23 DoF, quick-release 10,000 mAh battery (~2 hours runtime), and hardware support for >2 m/s movement speed—supporting fast demos and structured commercial operation.

Summary

EngineAI PM01 Commercial Version (PM01 Commercial) is a deployment-oriented edition of EngineAI’s PM01 humanoid platform, distinguished on the manufacturer’s official specification table by 23 DoF, ~42 kg weight, a 1400 mm standing height, a 10,000 mAh quick-release battery with ~2 hours runtime, and an operator-centric configuration that does not support secondary development. In broader PM01 coverage, the robot is widely described as capable of ~2 m/s movement speed and a large-range waist rotation enabling dynamic demonstrations, with learning-based motion methods (reinforcement and imitation learning) cited in launch reporting. Edition-level product segmentation—Commercial for operation, Education for deeper development—positions PM01 Commercial as an accessible humanoid option for structured commercial deployments, demonstrations, and service experiences where a reliable humanoid presence is the main requirement.
