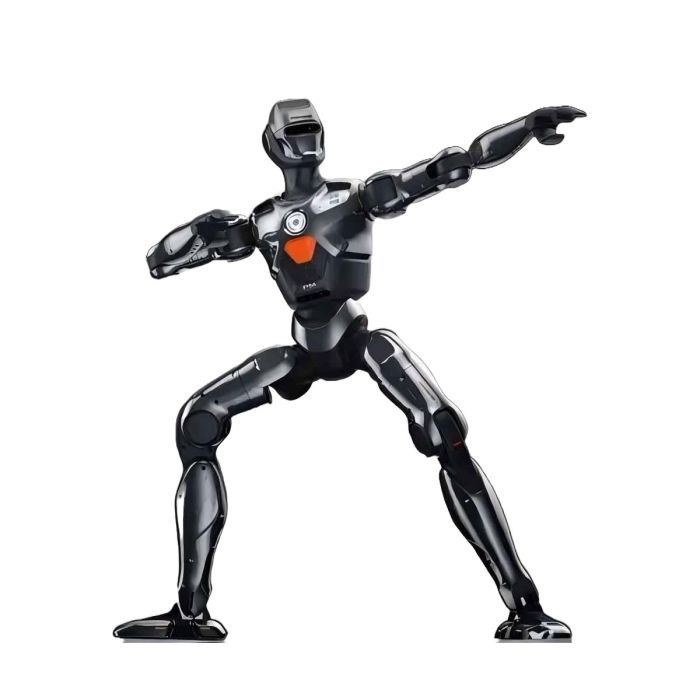

EngineAI PM01 Humanoid Robot

Compact humanoid architecture

A defining feature of PM01 is its compact body size. EngineAI’s official materials list the robot at 138 cm height, and multiple public sources describe it as weighing about 40 kg. That places PM01 in a smaller and more manageable humanoid class than many full-size industrial humanoids, which makes it easier to use in classrooms, labs, demos, and indoor testing environments.

The robot is also promoted as lightweight and highly dynamic. EngineAI’s official PM01 page says it is the company’s most flexible intelligent agent to date and highlights high-difficulty movement demonstrations. Public reporting about PM01’s running demonstrations in Shenzhen also emphasizes smooth gait and dynamic motion, which supports the company’s effort to position PM01 as more than a static research mannequin.

Open-source, developer-oriented platform

One of PM01’s most important characteristics is that EngineAI markets it as open-source. The company’s launch and CES materials explicitly say PM01 serves as an open-source platform for further development, making it suitable for robotics teams and researchers who want to build on the hardware and software rather than use it only as a closed appliance.

This developer orientation matters because it makes PM01 attractive to universities, robotics labs, embodied-AI teams, and advanced technical educators. In current public coverage, PM01 is often described not as a consumer companion robot, but as a relatively affordable humanoid for experimentation, validation, and custom application development.

Humanlike motion focus

EngineAI’s broader company positioning strongly emphasizes humanlike walking gait. While that slogan appears most directly alongside the larger SE01, PM01 is promoted within the same embodied-intelligence lineup and is consistently shown as a dynamic locomotion platform. Public government and media coverage on PM01’s outdoor running demonstrations describe stable motion, smooth joint coordination, and a maximum speed of about 2 m/s, supporting EngineAI’s performance-focused marketing.

Technology and Specifications

Core physical specifications

The most consistent public figures for PM01 are 138 cm height, 24 DoF, and roughly 40 kg weight. EngineAI’s official PM01 product page confirms the height and DoF count, while municipal reporting from Shenzhen and several robotics references support the approximate weight.

Some reseller pages describe a commercial version with 23 DoF and about 42 kg weight. That likely reflects either a sales-channel-specific configuration or a simplified published spec for one edition, since EngineAI’s own PM01 page prominently lists 24-DOF. Because of that difference, the safest reading is that 24 DoF is the official headline figure, while some sales channels may describe a slightly different configuration.

Motion performance

EngineAI and public reporting place PM01’s upper movement capability at about 2 m/s, which is unusually agile for a robot in this size and price category. Shenzhen government coverage of PM01’s public run says it moved smoothly at up to 2 m/s, and reseller descriptions also reference hardware support for speeds above 2 m/s.

A notable mechanical detail cited by independent robotics references is PM01’s 320-degree waist rotation, which contributes to the robot’s high-mobility positioning. Because this specific figure is not visible in the official product snippet returned here, it is better treated as a widely published secondary-source specification rather than the single definitive official value. Even so, it aligns with EngineAI’s overall marketing of PM01 as a flexible, dynamic humanoid.

Compute and sensing

Public specifications indicate that PM01 uses a dual-processor architecture combining Intel N97 and NVIDIA Jetson Orin. This configuration is described in independent product references and aligns with how EngineAI and outside coverage frame PM01 as a platform for AI application development and algorithm deployment.

Recent reporting also describes PM01 as using a high-precision environmental perception system with multi-sensor fusion and millisecond-level real-time motion control. A January 2026 report on EngineAI’s CES 2026 presence said PM01 serves as one of the company’s core robot platforms and relies on this perception-and-control stack for continuous operation in dynamic environments. That report is not the official PM01 product page, but it is useful evidence of the company’s current technical positioning for the robot.

Battery and endurance

Public reporting from Shenzhen says PM01 uses a swappable battery and runs for roughly two hours per charge. Reseller pages likewise describe a 10,000 mAh quick-release battery with around 2 hours runtime, which is consistent with a compact humanoid intended for demonstrations, lab sessions, and development cycles rather than full-day continuous deployment.

Applications and Use Cases

Research and education

The clearest use case for PM01 is research and education. EngineAI’s launch materials explicitly say the robot is available in commercial and educational editions, and the company’s CES coverage describes PM01 as an open-source foundation for embodied-intelligence advancement. That makes it well suited to universities, engineering programs, robotics labs, and technical training environments.

Embodied AI and algorithm development

Because PM01 is marketed as an open humanoid with AI-capable onboard hardware, it is also a strong fit for embodied AI, locomotion research, human-robot interaction, and cross-platform algorithm validation. AI TechPark’s CES coverage specifically says the PM01 supports broad hardware and software capability for cross-platform algorithm deployment and validation, which fits the product’s developer orientation.

Structured public-environment demos and service experiments

Some public coverage frames PM01 as a robot for structured public environments. For example, media reports in 2025 showed PM01 participating in police patrols in Shenzhen, where it drew attention for its interactive presence. That does not necessarily mean PM01 is already a mature police-service product, but it does indicate that EngineAI and local partners are experimenting with the robot in visible public-facing roles.

Commercial development and early deployment pilots

EngineAI launched PM01 in both commercial and educational variants, which suggests the company sees it as more than an academic platform. Public reports also note that PM01 was priced aggressively to compete with other compact humanoids and has been used to build public visibility through demonstrations, running videos, and event appearances. That combination makes PM01 relevant to early commercial pilots, robotics startups, and integrators seeking a lower-cost humanoid entry point.

Advantages / Benefits

One major advantage of PM01 is its accessibility relative to other humanoid robots. EngineAI’s launch materials and multiple outside reports point to an initial domestic price of 88,000 yuan, which was widely described as notably low for a humanoid with 24 DoF and open-source positioning. This price point is a major part of PM01’s identity in the market.

A second advantage is its developer openness. EngineAI repeatedly describes PM01 as open-source and as a platform for future development. For buyers who want to experiment with humanoid control, AI, or interaction rather than simply buy a closed showcase robot, that openness is likely one of PM01’s strongest selling points.

A third benefit is compact high-dynamic mobility. With official size and DoF figures plus public reports of 2 m/s running, PM01 appears to offer a strong balance of portability and motion capability. This makes it easier to deploy than a full-scale humanoid while still being much more capable than toy-class or low-end educational bipeds.

FAQ Section

What is the EngineAI PM01 Humanoid Robot?

The EngineAI PM01 is a compact, open-source humanoid robot designed for research, education, and commercial development. EngineAI’s official product page lists it at 138 cm tall with 24 degrees of freedom.

How does the EngineAI PM01 work?

PM01 combines bipedal humanoid mechanics, onboard compute, multi-sensor perception, and real-time motion control. Public sources describe it as using Intel and NVIDIA processing, multi-sensor fusion, and an open development architecture for embodied AI and locomotion work.

Why is the EngineAI PM01 important?

It is important because it brings open-source humanoid development to a lower price tier than many competing systems while still offering agile movement, 24 DoF, and AI-capable onboard hardware.

What are the benefits of the EngineAI PM01?

Its main benefits are compact size, open-source positioning, relatively low price, agile motion, AI-capable compute, and suitability for research, education, and early commercial development.

How much does the EngineAI PM01 cost?

At launch, PM01 was widely reported at 88,000 yuan in China, with translated figures in English-language coverage around US$12,000 to US$13,700 depending on source and timing.

Summary

The EngineAI PM01 Humanoid Robot is a compact, open-source humanoid platform aimed at developers, researchers, educators, and early commercial adopters. Its defining strengths are 138 cm height, 24 DoF, agile bipedal motion, AI-capable onboard hardware, and a launch price that positioned it as one of the more affordable serious humanoid robots in the market. For teams seeking a relatively accessible embodied-intelligence platform rather than a closed showcase robot, PM01 stands out as one of EngineAI’s most important current products.
