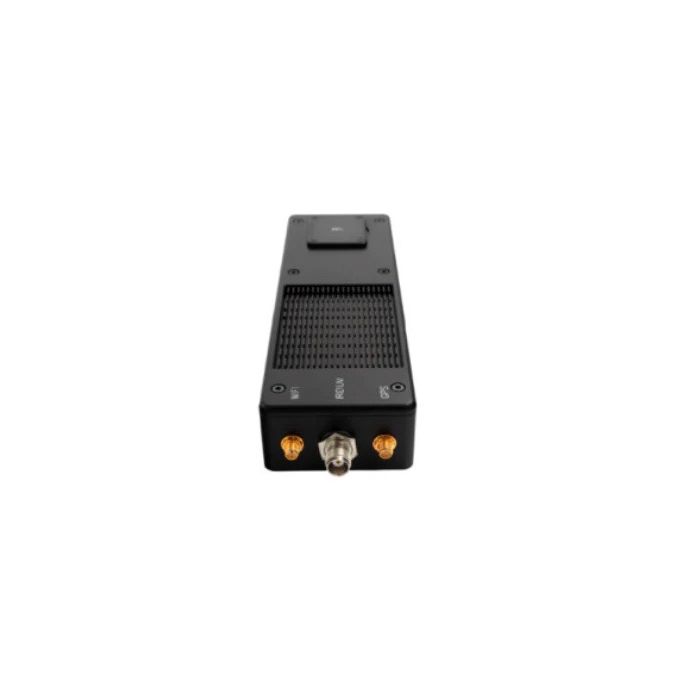

BSN NAL Quicksilver Kit W- Antenna, Data Adapter & Cables (Quicksilver QS-100)

BSN NAL Quicksilver Kit W- Antenna, Data Adapter & Cables (Quicksilver QS-100)

In the field, the QS-100 is commonly used as a drop-in upgrade from narrower-band satellite solutions for applications such as remote command and control (C2), diagnostic monitoring, telemetry, and low-bandwidth IP data transport. The kit form is especially relevant because it bundles the key accessories—antennas, a data adapter, and cabling—needed to deploy the terminal quickly in a vehicle, vessel, remote facility, or portable comms case.

Design and Features

Compact terminal with modular, kit-based deployment

The QS-100 is marketed as a compact “mid-band” terminal that simplifies low-profile installations using a detachable passive omni-directional antenna. This design supports both:

• Standalone use (field-deployable terminal with accessories), and

• Embedded integration (installed within a platform with controlled power and cable routing).

Multi-interface networking: Ethernet + Wi-Fi management

A defining characteristic of the QS-100 is its local web-based management interface, accessible either through 10/100 Base-T Ethernet or Wi-Fi (802.11 b/g/n).
The datasheet emphasizes browser-based management compatible with common browsers (Chrome, Firefox, Edge, Internet Explorer, Safari) and an OS-independent approach (Windows, Linux, iOS, Android).

Local web GUI, API, and “operator + integrator” controls

The QS-100 platform supports multiple control approaches:

• Local GUI website for configuration, monitoring, and control operations

• Web API (web service) for custom applications and embedded workflows

• Serial AT command interface (including compatibility-focused commands and admin recovery workflows)

This combination is aimed at both end users (who want a simple browser UI) and system integrators (who want automation hooks and programmatic control).

Rugged enclosure with IP67 design intent

The QS-100 enclosure is described as IP67 compliant, including the DB-25 connector on the terminal housing; however, the documentation notes that the Data Adapter itself is not IP67 compliant, which matters for deployments in wet or exposed environments.

Kit accessories: antennas, data adapter, and power

The QS-100 user guide describes a “standard Quicksilver kit” as comprising:

• Quicksilver terminal

• Iridium Certus antenna

• Wi-Fi antenna

• GPS antenna

• Data Adapter

• 115 VAC/12 VDC power adapter

Retail listings for the “kit w/ antenna, data adapter & cables” typically align with this accessory bundle concept, though exact pack-outs can vary by distributor and region.

Technology and Specifications

Iridium Certus 100 data service and throughput

The QS-100 is built on the Iridium 9770 Certus transceiver and uses Iridium Certus 100 service to provide IP data with maximum rated speeds of:

• Up to 22 kbps uplink

• Up to 88 kbps downlink

These rates position QS-100 for mid-band messaging and operational data (telemetry, diagnostics, secure chat, small file transfers), rather than high-throughput broadband.

IP networking and protocols

The QS-100 datasheet states support for multiple IP protocols (e.g., TCP, UDP, HTTP, HTTPS) and highlights use cases such as telemetry and remote control.

Built-in GPS and location data access

The user guide notes the QS-100 includes a built-in GPS receiver, with GPS position data viewable through the GUI and accessible via the web API.

Physical interfaces and connectors (terminal + adapter model)

The user guide’s device diagram identifies:

• Wi-Fi antenna port: RP-SMA female

• Iridium antenna port: TNC female

• GPS antenna port: SMA female

• DB-25 terminal connector used with the Data Adapter for Ethernet/serial/power connectivity

Power can be provided via 10–32 VDC through the DB-25 power pins or via the wall adapter associated with the Data Adapter.

Local management IP defaults (operator workflow)

The Rev. D user guide describes default local access URLs:

• Ethernet: https://192.168.20.1

• Wi-Fi: https://192.168.60.1 (with default SSID “Quicksilver”)

The same documentation describes a default admin login (often admin / Password!), and notes that older hardware releases may have used different defaults.

Antenna certification and installation constraints

The user guide notes that, due to Iridium certification requirements, users may only use antennas certified with the QS-100 terminal, and it provides guidance on spacing antennas to reduce radiated interference.

Applications and Use Cases

Remote command & control (C2) and telemetry backhaul

The QS-100 is frequently positioned for remote command and control, telemetry, and diagnostic monitoring, providing a globally reachable IP link for systems that must remain connected outside cellular or terrestrial radio coverage.

Maritime, land-mobile, and aviation connectivity

The QS-100 is marketed across land mobile, maritime, and aviation contexts—particularly where a compact, rugged device is needed for on-the-move or over-the-horizon connectivity.

Secure messaging and “lightweight internet” workflows

The datasheet highlights compatibility with “popular encrypted voice/messaging apps (e.g., Signal),” reflecting a common pattern where Certus 100 bandwidth is used for low-data, high-value communications rather than heavy browsing.

Rapid-deploy kits for field operations

Because the kit includes antennas and a data adapter, it is commonly used as a rapid-deploy SATCOM node for teams operating in remote areas (survey, expeditionary logistics, emergency management), where quick setup and predictable configuration are operational priorities.

Advantages / Benefits

Mid-band IP connectivity in a compact rugged platform

QS-100 combines Certus 100 IP data capability with a ruggedized enclosure and modular accessories, enabling practical “small terminal” deployments without a large stabilized antenna system.

Multiple management paths: GUI + API + AT commands

The presence of a local GUI, web API, and AT/serial interface supports both human operators and system integrators—useful in embedded systems, test rigs, and managed fleet deployments.

OS- and browser-agnostic operations

The product is marketed as operating system independent with broad browser compatibility, which lowers friction when teams use mixed device fleets (Windows laptops, iPads, Android tablets).

Kit packaging reduces integration risk

Bundling antennas, a data adapter, and cables helps standardize performance and reduces common field errors (incorrect connectors, missing antennas, incompatible adapters), especially in remote deployments where spares are limited.

FAQ Section

What is the BSN NAL Quicksilver QS-100 kit?

It is a bundled Iridium Certus 100 IP data terminal kit that typically includes the QS-100 terminal plus Iridium, Wi-Fi, and GPS antennas, a Data Adapter, and a power adapter/cables for deployment.

How does the Quicksilver QS-100 work?

The QS-100 uses an Iridium 9770 Certus transceiver to connect to Iridium Certus 100 service, routing IP data between the satellite link and local devices via Ethernet or Wi-Fi, with configuration managed through a local web GUI or web API.

Why is the Quicksilver QS-100 important?

It provides global IP connectivity for command-and-control, telemetry, and remote operations when cellular or terrestrial networks are unavailable, in a compact form factor suitable for mobile and embedded platforms.

What are the benefits of the Quicksilver QS-100 kit?

Benefits typically include Certus 100 mid-band IP data (up to 22/88 kbps), web-based device management, API integration, and a kit pack-out that includes antennas and adapters for faster deployment.

Summary

The BSN NAL Quicksilver QS-100 kit packages an Iridium Certus 100 mid-band IP data terminal with the antennas, data adapter, and cabling needed for rapid deployment in remote environments. Built on the Iridium 9770 transceiver and supporting a local web GUI, web API, and AT/serial control, the QS-100 is positioned for command-and-control, telemetry, diagnostics, and secure messaging workflows across land, maritime, and aviation operations where dependable beyond-line-of-sight connectivity is required.
