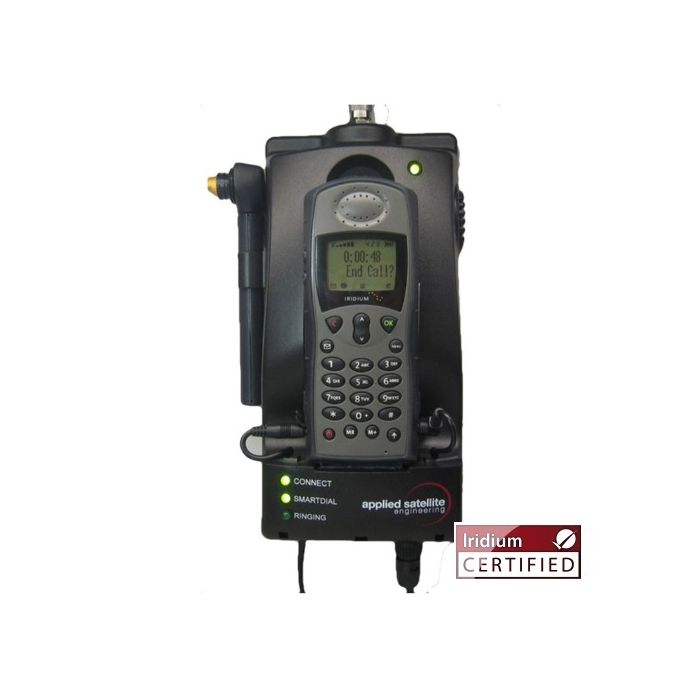

DISCONTINUED - ASE Docking Station w/ POTS & RS232 for Iridium 9505A Satellite Phones (ASE-MC03)

DISCONTINUED - ASE Docking Station w/ POTS & RS232 for Iridium 9505A Satellite Phones (ASE-MC03)

Across reseller catalogs, the product is widely labeled “DISCONTINUED”, indicating it is no longer a standard current-production item in many distribution channels. Even so, refurbished and surplus inventory can still appear, and the model remains relevant for organizations that continue to operate Iridium 9505A handsets in legacy fleets, vessels, and remote-site installations.

Design and Features

Docking cradle for installed operation

ASE-MC03 is designed as a dock-and-go system: when the 9505A is docked, it becomes an installed communications node; when users need portability, the handset can be removed and carried as a standard handheld satphone. This “undock and take it with you” workflow is explicitly described in product descriptions that position it for office and vessel use.

POTS (RJ-11) interface for analog telephony and PBX

A primary feature is the RJ-11 POTS interface, intended to connect to:

• a single analog phone, or

• an analog PBX/telephony system (depending on site configuration)

Vendor descriptions emphasize the ability to use “standard analog phone sets” and PBX systems while the satellite phone remains docked.

This design can be useful in operations rooms and remote offices where staff are trained on conventional desk phones and where the satphone itself should remain secured and ready.

RS-232 data port for legacy connectivity

ASE-MC03 includes an RS-232 serial port described as supporting data connections and compatibility with Iridium workflows such as Direct Internet 2.0 and fax adapter use (where supported by the handset/service configuration).
RS-232 remains common in industrial and maritime environments where legacy equipment, embedded controllers, and long cable runs are standard.

Additional audio option: hands-free / headset jack

Some vendor feature lists for the MC03 platform mention a 2.5 mm hands-free/headset audio interface intended to improve voice usability in installed settings.

Built-in antenna holder (storage / handling convenience)

At least one product listing highlights a built-in antenna holder, described as convenient antenna storage while the phone is docked.
(Exact implementation details can vary by production run and included accessories.)

Technology and Specifications

Supported handset: Iridium 9505A

ASE-MC03 is specifically designed for the Iridium 9505A handset form factor. Reseller catalogs consistently identify the product as a docking station for the 9505A model.

Interfaces and ports

Published feature/spec summaries commonly list:

• POTS (RJ-11) interface

• RS-232 serial port

• 2.5 mm hands-free audio jack (in some listings)

These interfaces were selected to match the practical needs of legacy communications environments—analog telephony and serial data.

Certifications and marine context

An aftermarket listing for the docking station references Iridium certification and additional approvals such as CE and IEC 60945 (a marine electronics standard).
Because this is a secondary-market claim, organizations with strict compliance requirements typically verify certifications using manufacturer documentation or procurement records rather than relying only on aftermarket listings.

Applications and Use Cases

Indoor satellite phone access for remote sites

A common deployment is to keep the satphone indoors (office, site control room, guard post) while still enabling satellite communications through a familiar analog phone interface. In many buildings, handheld satellite phones work inconsistently due to construction materials; docking systems are used to address usability and workflow constraints by standardizing the calling interface.

Marine and vessel communications

Marine operators often need a stable satcom point that integrates with shipboard procedures. The combination of POTS and RS-232 aligns with maritime environments that still use analog voice circuits and serial-connected equipment. Refurbished-product listings specifically mention vessel use as a target scenario.

Vehicle-based installed satphone stations

Fleet and field vehicles can benefit from a mounted satphone solution that reduces fumbling with a handheld device during operations. While MC03 is not limited to vehicles, reseller descriptions explicitly position it for vehicle use alongside office/vessel use.

Legacy data and fax workflows

The RS-232 port is often associated with older but still-used data methods (serial applications and fax adapter workflows). Listings describing compatibility with Direct Internet 2.0 and fax adapters suggest MC03 was designed with those legacy workflows in mind.

Advantages / Benefits

Familiar telephony experience (POTS/PBX)

The RJ-11 POTS interface can reduce training requirements and operational friction by allowing staff to use standard analog phones or PBX systems rather than operating the satphone keypad directly.

Supports legacy integration (RS-232)

RS-232 remains valuable in industrial and maritime ecosystems. By including serial data connectivity, the dock supports deployments that still depend on legacy equipment or serial communication paths.

“Docked when needed, portable when required”

ASE-MC03 product descriptions stress the ability to undock the handset and take it with you, a key advantage over fixed-only terminals.

FAQ Section

What is the ASE-MC03 docking station?

The ASE-MC03 is a (now discontinued) docking station designed for the Iridium 9505A satellite phone that adds POTS (RJ-11) and RS-232 interfaces so the satellite link can be used through standard analog phones, PBX systems, and serial data workflows.

How does the ASE-MC03 work?

You dock the Iridium 9505A handset into the cradle, then connect an analog phone/PBX to the RJ-11 port and/or connect supported data equipment to the RS-232 port. When needed, the handset can be undocked and used as a handheld satphone.

Why is the ASE-MC03 important?

It provides a bridge between Iridium satellite communications and legacy infrastructure (analog telephony and serial data), which is especially useful in vessels, remote sites, and organizations that still rely on older but proven equipment.

What are the benefits of POTS (RJ-11) on a satellite phone dock?

POTS lets users operate the satphone link using standard analog phones and, in some setups, PBX systems—often improving usability and making satellite calling easier for staff who are trained on desk phones.

What does the RS-232 port add?

RS-232 provides a serial data interface commonly used for legacy data workflows; at least one vendor description notes compatibility with Iridium Direct Internet 2.0 and fax adapter use cases (where supported).

Summary

The ASE-MC03 is a discontinued but still relevant docking station for the Iridium 9505A that extends the handset into installed environments using POTS (RJ-11) and RS-232 interfaces. Designed for indoor, marine, and vehicle scenarios, it supports a “dock for installed use, undock for portability” workflow and remains valuable in legacy deployments that rely on analog telephony and serial data integration.
