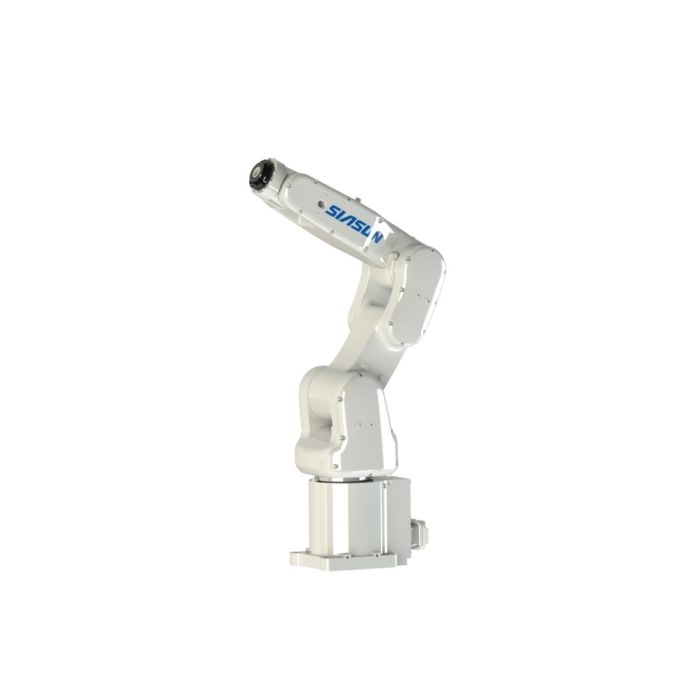

SIASUN Industrial Robot Arm with 580mm Reach, 4kg Max Payload, 6 DOFs (SN4A-4/0.58)

In modern manufacturing and lab automation, small articulated robots like the SN4A-4/0.58 are often selected when floor space is limited, cycle times are short, and tasks involve delicate handling rather than heavy lifting. Their six degrees of freedom (6 DOFs) allow flexible approach angles, which is valuable for workpieces presented at variable orientations or for stations with constrained access (e.g., fixtures inside compact enclosures).

Design and Features

Compact articulated structure

The SN4A-4/0.58 is built around an articulated (jointed) arm architecture with six motorized axes. This provides human-arm-like dexterity—enabling the end effector to approach a target from multiple angles and to reorient parts without requiring additional external rotary stages.

Integration-friendly footprint

Small payload robots are typically deployed in:

• machine-tending cells (e.g., benchtop CNC or small injection molding auxiliaries),

• ESD-safe electronics lines (with appropriate end effectors and grounding),

• inspection or metrology stations where consistent pathing improves measurement repeatability.

The SN4A format is aimed at simplifying integration into tight layouts while maintaining the kinematic flexibility of a full 6-axis arm.

Technology and Specifications

Key published parameters for the SIASUN SN4A-4/0.58 include:

• Degrees of freedom: 6 axes

• Maximum payload: 4 kg

• Maximum reach: 580 mm

• Repeatability: 0.02 mm

Motion control and accuracy concepts

Industrial robot performance is usually discussed in terms of:

• Repeatability (how closely the robot returns to the same point repeatedly),

• trajectory performance (smoothness and accuracy along a path),

• cycle time (how quickly it can execute a standard motion sequence).

A repeatability figure around 0.02 mm is typically associated with applications like precision pick-and-place, small-part handling, and consistent positioning for camera-based inspection—assuming the overall system (fixtures, vision calibration, tooling rigidity) is engineered to match the robot’s capability.

Applications and Use Cases

Electronics and small-part assembly

With a light payload and short reach, the SN4A-4/0.58 is well suited to:

• connector insertion and component placement support,

• kitting operations (sorting small items into trays),

• adhesive dispensing for small housings.

Machine tending and light loading/unloading

In compact cells, it can be used for:

• loading small workpieces into benchtop machines,

• removing finished parts and placing them into bins or conveyors,

• simple deburring or air-blow cleaning (tooling dependent).

Vision-based inspection and test automation

Small 6-axis robots are frequently paired with:

• fixed cameras and controlled lighting,

• test probes or gauges,

• barcode/label verification stations,
  where consistent poses and repeatable motion reduce measurement variance.

Advantages / Benefits

Space efficiency

A ~580 mm reach robot is typically easier to place inside:

• safety enclosures,

• lab benches,

• tabletop assembly cells.

High repeatability for precision tasks

Published repeatability around 0.02 mm supports precision positioning workflows—especially when the tooling and fixturing are designed for stiffness and alignment.

6-axis flexibility

Compared with 4-axis SCARA or Cartesian solutions, a 6-axis arm can:

• approach from multiple angles,

• reorient parts mid-air,

• work around obstacles in tight cells.

FAQ Section

What is the SIASUN SN4A-4/0.58?

The SIASUN SN4A-4/0.58 is a 6-axis industrial robot arm rated for about 4 kg payload and 580 mm reach, intended for compact automation cells such as assembly, inspection, and light handling.

How does the SN4A-4/0.58 work?

It uses six servo-driven joints controlled by an industrial robot controller to execute programmed motions. Tooling (a gripper, vacuum cup, dispenser, etc.) is mounted at the wrist to perform the task.

Why is a small 6-axis robot important?

Small 6-axis robots combine space efficiency with multi-angle dexterity, making them useful where SCARA/cartesian robots cannot easily reach or orient parts—especially in tight enclosures or complex fixture layouts.

What are the benefits of the SN4A-4/0.58?

Common benefits include a compact reach, 6-axis flexibility, and high repeatability suitable for precise small-part automation tasks.

Summary

The SIASUN SN4A-4/0.58 is a compact, 6-axis industrial robot arm optimized for light-payload, high-repeatability automation in constrained workcells. With a published 4 kg payload, 580 mm reach, and 0.02 mm repeatability, it fits precision-oriented applications such as small-part handling, inspection automation, and compact machine tending.
