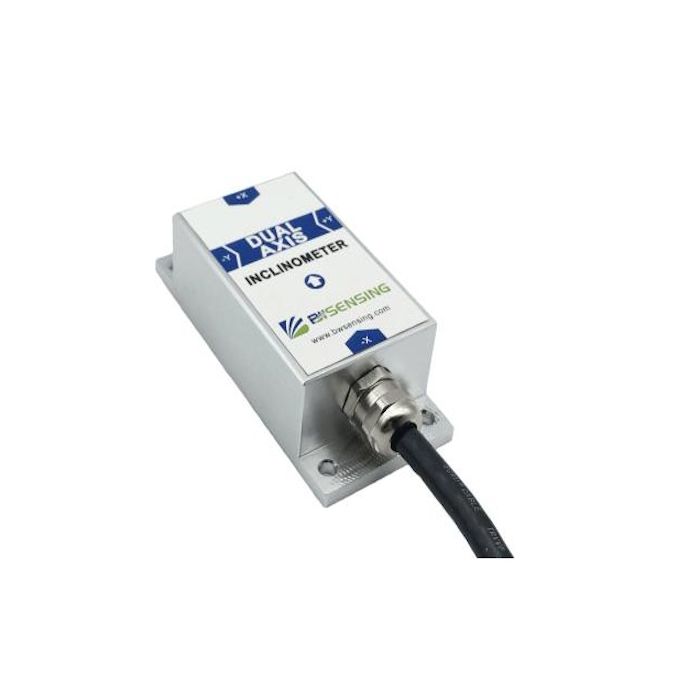

BWSENSING Cost-Effective Dual-Axis Inclinometer (BWM427)

BWSENSING Cost-Effective Dual-Axis Inclinometer (BWM427)

In industrial instrumentation, inclinometers like the BWM427 are commonly used wherever “level,” “slope,” or “tilt angle” must be measured continuously and transmitted to controllers, data loggers, or IoT gateways. The BWM427 is typically described as a rugged, sealed sensor with IP67 protection and digital interfaces aimed at integration into control and monitoring networks.

Design and Features

Sealed industrial form factor

The BWM427 is presented in manufacturer listings as an IP67-rated inclinometer, indicating protection against dust ingress and temporary water immersion under standard test conditions. This is relevant for outdoor or mobile equipment exposed to rain, washdowns, mud, or dust.

Compact installation footprint

Product information for the series describes a compact body size of approximately 90 × 40 × 26 mm with a four-hole mounting pattern, supporting common machine-frame or bracket installation methods.

Digital output options for integration

The BWM427 is commonly listed with multiple digital interface options—RS-485, RS-232, and TTL—supporting integration with PLCs, industrial PCs, or embedded controllers. Some catalogs and listings also reference CAN as an available output mode depending on variant or ordering configuration.

Technology and Specifications

Measurement principle

Dual-axis inclinometers in this class typically use MEMS-based sensing to measure the projection of gravity on sensor axes and compute tilt angles. The BWM427 is marketed within a catalog family of digital inclinometers intended for real-time angle measurement and control integration.

Key published specifications

The following specifications are commonly associated with the BWM427 in product listings and catalog excerpts:

• Measuring range: up to ±88°

• Resolution: 0.001°

• Accuracy: 0.01° (max) (listed in catalog excerpts; interpretation can vary by test condition and range)

• Output update rate / frequency: listings indicate support for up to ~100 Hz output frequency

• Ingress protection: IP67

• Input voltage: catalog excerpts list 9–35 VDC

• Interfaces (common): RS-485 / RS-232 / TTL (CAN also referenced in some materials)

Practical interpretation of accuracy and resolution

• Resolution (0.001°) indicates the smallest reported increment in the output value, which supports fine-grained monitoring and control.

• Accuracy (0.01° max) is typically influenced by temperature, vibration, mounting flatness, alignment, and calibration method. In real deployments, system-level accuracy depends on installation quality and environmental conditions.

Applications and Use Cases

Construction and heavy equipment leveling

Dual-axis inclinometers are frequently used on:

• excavators, cranes, and aerial work platforms for tilt/level alarms

• pavers and graders for slope control

• lifting and stabilization systems for outrigger leveling

Structural and geotechnical monitoring

Inclinometers are widely applied to monitor tilt changes in:

• retaining walls and temporary supports

• bridge components and bearings

• foundations and settlement zones

• towers and poles

Industrial automation and alignment

In manufacturing and process environments, a dual-axis digital inclinometer may be used to:

• verify machine bed leveling

• align conveyors, hoppers, and chutes

• monitor tilt on automated guided systems and mobile platforms

• provide real-time angle feedback to PLC logic via serial communication (RS-485/RS-232)

Renewable energy and outdoor infrastructure

Tilt sensing is also used for:

• solar tracker alignment and fault detection

• platform leveling for inspection equipment

• remote structures requiring periodic tilt checks

Advantages / Benefits

Cost-effective dual-axis measurement

The BWM427 is positioned as a lower-cost option within dual-axis digital inclinometer categories, offering two-axis tilt output without requiring two separate sensors.

Flexible digital connectivity

Support for RS-485 / RS-232 / TTL (and CAN referenced in some materials) enables integration with a broad range of controllers and industrial networks, including Modbus-style deployments commonly used over RS-485.

Field-ready environmental protection

IP67 sealing supports deployment in outdoor or mobile environments where water and dust exposure are routine.

High resolution for control and monitoring

A stated 0.001° resolution can be helpful for smooth control loops, trend monitoring, and early detection of gradual tilt changes.

FAQ Section

What is the BWSENSING BWM427 dual-axis inclinometer?

The BWM427 is a dual-axis digital inclinometer designed to measure tilt angles on two axes and output the readings through industrial digital interfaces for monitoring and control.

How does the BWM427 inclinometer work?

A dual-axis inclinometer measures the direction of gravity relative to the sensor body (commonly via MEMS-based sensing) and converts that into two tilt angles often interpreted as pitch and roll then transmits results digitally to a controller or logger.

Why is a dual-axis inclinometer important?

Dual-axis measurement helps capture tilt in two directions simultaneously, which is important for leveling, stability monitoring, and alignment tasks where a single-plane measurement could miss critical movement.

What are the benefits of the BWM427 inclinometer?

Commonly cited benefits include IP67 protection, high resolution (0.001°), multi-interface digital integration (RS-485/RS-232/TTL, with CAN referenced in some materials), and a cost-oriented positioning for industrial deployments.

Summary

The BWSENSING BWM427 is a cost-effective, dual-axis digital inclinometer aimed at industrial tilt measurement where ruggedness (IP67), fine resolution, and flexible digital interfaces matter. With published specifications commonly listing ±88° range, 0.001° resolution, and integration-friendly outputs (notably RS-485/RS-232/TTL, with CAN referenced in some materials), it is suited to applications spanning equipment leveling, structural tilt monitoring, and automation alignment in challenging environments.
