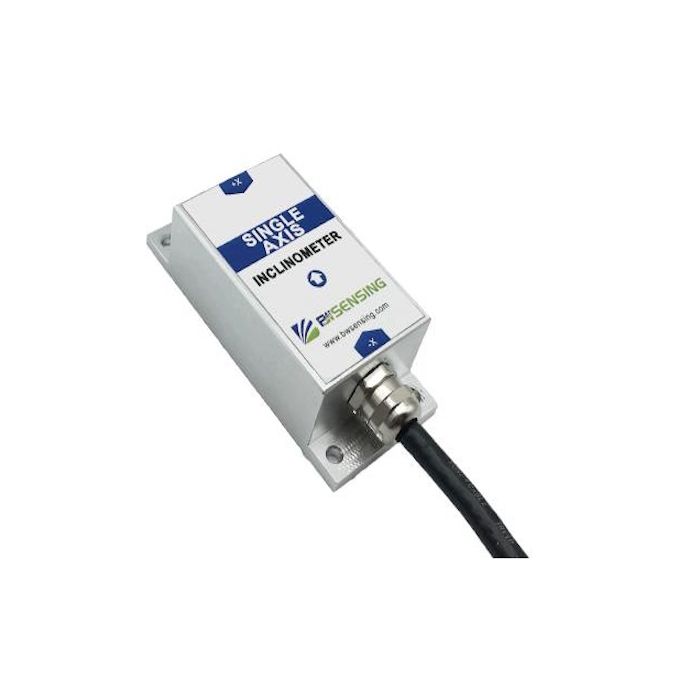

BWSENSING Cost-Effective Single-Axis CAN Output Inclinometer (BWM415)

BWSENSING Cost-Effective Single-Axis CAN Output Inclinometer (BWM415)

Inclinometers like the BWM415 are widely used in automation and monitoring because they can translate small changes in orientation into measurable electrical signals, enabling control systems to correct alignment (e.g., auto-leveling) or detect gradual movement (e.g., settlement or structural shift). The BWM415’s combination of ±180° range, up to 0.01° accuracy, and CAN output targets deployments where long cable runs, noise immunity, and multi-drop networking are helpful.

Design and Features

MEMS sensing approach

The BWM415 is built around a high-precision MEMS accelerometer that senses the direction of gravity (the static gravity field) and converts that into an inclination angle. In a typical static or quasi-static use case (slow tilting), the gravity vector provides a stable reference for calculating tilt relative to the sensor’s axis.

Compensation and filtering

To improve practical field performance, the device incorporates automatic compensation and filtering algorithms intended to reduce measurement error caused by environmental changes (for example, temperature drift and noise). The manual also describes using high-resolution conversion and internal signal handling to stabilize readings over time.

Industrial enclosure and protection

The BWM415 is specified with an IP67 protection level, supporting use in harsh environments where dust and temporary immersion protection are needed. The mechanical design includes a magnesium-aluminum alloy oxidation shell and installation using three M4 screws, reflecting typical industrial mounting expectations for repeatability and durability.

Technology and Specifications

Core performance specifications (manufacturer)

Key specifications published in the BWM415 technical manual include:

• Measurement axis: X (single axis)

• Measurement range: ±180°

• Highest accuracy: 0.01° (room temperature)

• Resolution: 0.001° (completely still condition)

• Zero bias (temperature coefficient): ±0.008°/°C over −40°C to +85°C

• Start-up time: < 3 seconds

• Output frequency: 5–100 Hz adjustable (up to 100 Hz)

• Power supply: DC 9–35 V

• Working current: 20–40 mA (no-load condition range)

• Operating temperature: −40°C to +85°C

• Storage temperature: −55°C to +100°C

• Ingress protection: IP67

• Dimensions: 90 × 40.5 × 26 mm

• MTBF: ≥ 90,000 hours

• Impact resistance: 2000 g, 0.5 ms, 3 times/axis

CAN electrical interface and wiring

The BWM415 outputs over CAN and provides a wiring definition consistent with field integration (power, ground, CAN-L, CAN-H). The manual specifies a 1.5 m cable and a metal joint connector style.

Installation considerations

Like many inclinometers, installation quality strongly affects real-world accuracy. The manual emphasizes firm contact between the sensor mounting surface and the measured surface, avoiding included angles and minimizing errors induced by acceleration/vibration. In practice, this aligns with standard tilt-sensor deployment guidance: use rigid mounting, avoid loose brackets, and consider mechanical isolation if vibration is significant.

Applications and Use Cases

Structural deformation and civil monitoring

In structural health monitoring, a single-axis inclinometer can be installed to track gradual tilt changes in walls, columns, retaining structures, or platforms. Over time, drift-controlled measurements can help identify slow movement that warrants inspection or remediation—especially when combined with threshold alerts in a monitoring platform.

Tower and mast tilt monitoring

The BWM415 is explicitly positioned for tower tilt monitoring, a common requirement for telecom towers, lighting masts, and utility poles. CAN networking can be advantageous when multiple sensors are installed across a structure and consolidated into a single data bus.

Industrial automation and auto-leveling

In production and machine automation, inclinometers are used for industrial automatic leveling of platforms and equipment, ensuring consistent positioning and reducing setup time. A fast start-up time and adjustable output frequency are practical benefits in control-loop integration.

Photovoltaic tracking systems

Solar tracking systems often need continuous tilt or orientation feedback to maximize energy capture. The BWM415 is listed for photovoltaic automatic tracking use, where durability and weather protection are important for outdoor installations.

Surveying and mapping instruments

For surveying tools or alignment-dependent instrumentation, a stable tilt reference can assist in calibration, alignment workflows, and compensated measurement routines.

Advantages / Benefits

CAN bus integration for industrial systems

A CAN interface supports robust communication in electrically noisy environments and can simplify multi-device wiring topologies compared with point-to-point serial connections. For industrial automation and vehicle-adjacent deployments, CAN is also a widely supported ecosystem.

Wide range and fine resolution

A ±180° range makes the BWM415 suitable for pendulum-type or broad orientation scenarios, while the 0.001° resolution (in still conditions) provides sensitivity for detecting small changes when the mechanical setup is stable.

Environmental durability

IP67 protection and a metal enclosure support long-term outdoor or industrial use, especially in monitoring applications where devices may remain installed for years.

Field-friendly power input

A 9–35 V input range is compatible with common industrial DC supplies (e.g., 12 V and 24 V systems), simplifying integration into existing control cabinets or monitoring installations.

FAQ Section

What is the BWSENSING BWM415 inclinometer?

The BWSENSING BWM415 is a single-axis, MEMS-based inclinometer that measures tilt relative to gravity and outputs the angle via CAN bus, with a specified ±180° measurement range and up to 0.01° accuracy under room-temperature conditions.

How does a CAN bus inclinometer work?

A CAN bus inclinometer measures tilt using an internal sensor (commonly a MEMS accelerometer) that detects the gravity vector, converts that into an angle, and transmits the result as digital data frames over the CAN network to a controller, logger, or gateway.

Why are inclinometers important in monitoring and automation?

Inclinometers provide a direct way to detect orientation changes—useful for auto-leveling, preventing unsafe tilt in equipment, and identifying slow movement in structures (for example, towers or supports) before it becomes a critical failure.

What are the benefits of the BWM415?

Common benefits include CAN bus output, IP67 environmental protection, a wide ±180° range, fine resolution (0.001° in still conditions), and an industrial-friendly 9–35 V input range—supporting both monitoring deployments and automation systems.

Summary

The BWSENSING BWM415 is a CAN-output, single-axis MEMS inclinometer engineered for practical industrial tilt measurement across monitoring and automation use cases. With ±180° range, IP67 protection, and specifications emphasizing accuracy, resolution, and temperature capability, it fits deployments such as tower tilt monitoring, structural deformation monitoring, and photovoltaic tracking where reliable inclination data is essential
