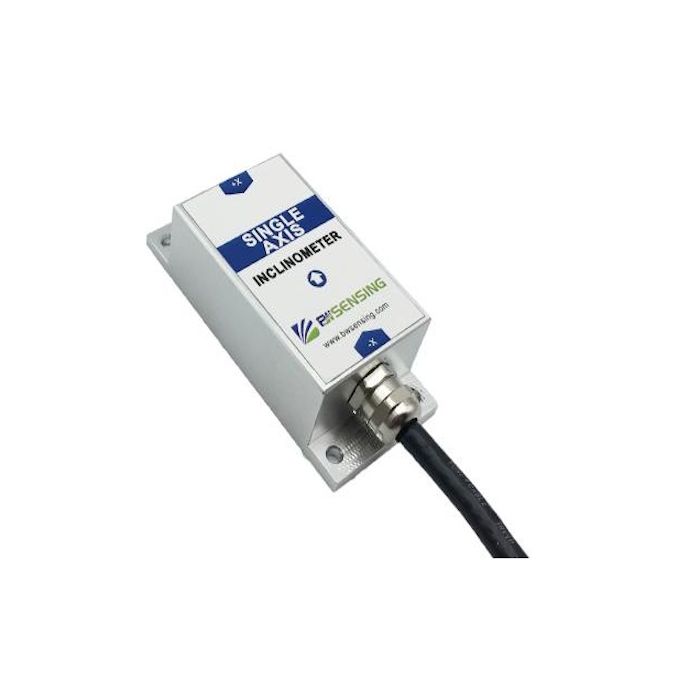

BWSENSING Low Cost Single-Axis Current Output Inclinometer (BWL318)

BWSENSING Low Cost Single-Axis Current Output Inclinometer (BWL318)

Inclinometers are widely used in automation, civil engineering, energy systems, and heavy equipment to detect changes in orientation (tilt) that could affect performance, safety, or measurement accuracy. In the BWL318’s class, the “single-axis” designation indicates it measures tilt about one axis (commonly labeled X), which can simplify deployment where only one direction of inclination is relevant (e.g., mast/tower lean, platform pitch, actuator angle, or valve position feedback).

Design and Features

Single-Axis Tilt Measurement Architecture

The BWL318 is built for single-axis tilt measurement and is specified with a measurement range of ±180°, allowing it to represent a full half-rotation of tilt about the measured axis.

Industrial Current Output Options

A defining feature of the BWL318 is its analog current output, offered in 4–20 mA / 0–20 mA / 0–24 mA variants (depending on configuration).
Current-loop outputs are commonly chosen in industrial environments because they are relatively tolerant of electrical noise and voltage drop across long cable runs, helping maintain signal integrity between a field sensor and a control cabinet.

Ruggedization and Environmental Protection

The sensor is specified with an IP67 protection level, indicating dust-tight sealing and resistance to temporary water immersion under standardized conditions—useful for outdoor and harsh industrial settings.

Physical Form Factor

BWSENSING lists the device dimensions as L90 × W40.5 × H26 mm, which fits typical compact industrial sensor mounting envelopes.

Technology and Specifications

This section summarizes published technical parameters for the BWL318.

Performance Specifications (Tilt Measurement)

• Measurement range: ±180°

• Measurement axis: X (single axis)

• Highest accuracy: 0.1° (room temperature condition)

• Resolution: 0.01° (when completely still)

• Start-up time: < 3 seconds

• Output frequency: 5–100 Hz adjustable (up to 100 Hz)

Electrical and Environmental Specifications

• Power supply: 12–36 V

• Operating current: typically listed around 20–60 mA depending on load/conditions

• Max output load: 500 Ω

• Operating temperature: −40 to +85 °C

• Storage temperature: −55 to +100 °C

• MTBF: ≥ 90,000 hours

• Insulation resistance: ≥ 100 MΩ

• Impact resistance: 2000 g, 0.5 ms, 3 times/axis

• Weight: approximately 210 g (without outer packaging)

Applications and Use Cases

BWSENSING positions the BWL318 for a range of industrial and infrastructure tasks, including:

• Industrial automatic leveling (platforms, machinery bases, alignment systems)

• Medical instruments (equipment alignment and angle monitoring)

• Photovoltaic automatic tracking (solar panel tilt control and feedback)

• Tower tilt monitoring (lean detection and structural monitoring)

• Special valve applications (angle/position feedback in specialized assemblies)

• Oil drilling equipment (orientation monitoring under harsh conditions)

• Industrial converter installations (tilt/angle feedback for industrial systems)

• Lifting equipment inclination control (cranes, hoists, platforms, safety interlocks)

Advantages / Benefits

Robust Signaling for Industrial Control

A 4–20 mA current loop is widely supported by industrial controllers and is commonly selected for field sensors due to strong compatibility with PLC I/O cards and industrial signal conditioners. The BWL318’s multiple current-output options make it adaptable across different control standards and regional practices.

Wide Measurement Range in a Single Axis

With ±180° coverage, the BWL318 can support applications that require broad angular measurement without needing multiple sensors or mechanical constraints.

Field-Ready Environmental Specs

The combination of IP67 sealing and a −40 to +85 °C operating range supports outdoor, mobile, and rugged machinery deployments where weather, dust, and temperature swings are expected.

Tunable Output Frequency

The ability to adjust output frequency (5–100 Hz) allows system integrators to balance responsiveness with filtering and control stability—important for applications like leveling loops, tracking systems, or motion-affected platforms.

FAQ Section

What is the BWSENSING BWL318 inclinometer?

The BWL318 is a single-axis inclinometer that measures tilt over ±180° and outputs the measured angle using an industrial current signal (such as 4–20 mA), designed for automation and monitoring systems.

How does a current-output inclinometer work in an industrial system?

A current-output inclinometer converts tilt into a proportional current signal (e.g., 4–20 mA) that a PLC or data acquisition system reads through an analog input channel. This approach is commonly used for reliable transmission over longer cables and noisy industrial environments.

Why is a single-axis inclinometer important?

Single-axis inclinometers are important when only one direction of tilt needs monitoring (for example, tower lean in one plane, platform pitch, or actuator angle). This can reduce cost and simplify installation compared with multi-axis sensors.

What are the benefits of the BWL318 compared with other tilt sensors?

Key benefits include 0.1° accuracy (room temperature), 0.01° resolution, IP67 protection, a wide operating temperature range, and current-loop output options that fit standard industrial control systems.

Summary

The BWSENSING BWL318 is a compact, cost-effective single-axis inclinometer engineered for industrial environments that favor analog current outputs and rugged field deployment. With ±180° range, 0.1° accuracy, 0.01° resolution, IP67 sealing, and configurable 5–100 Hz output frequency, it aligns with common applications such as leveling, photovoltaic tracking, tower tilt monitoring, and equipment inclination control.
