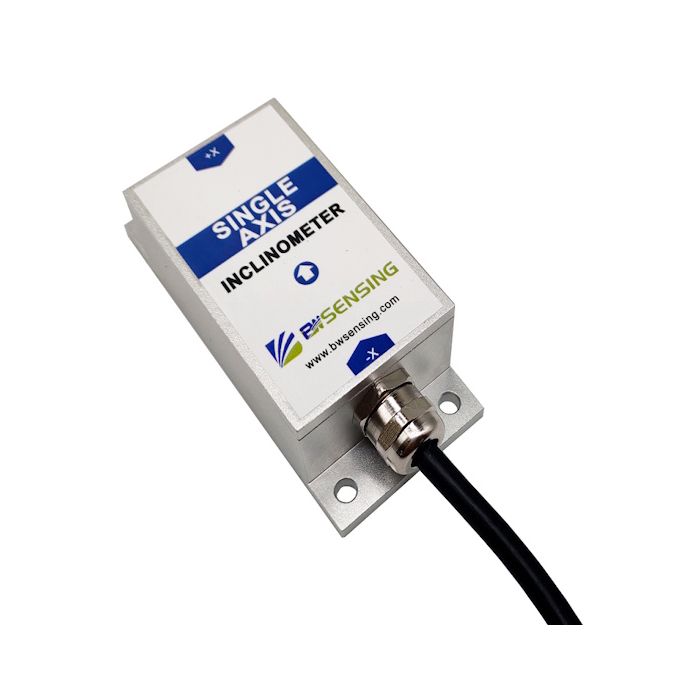

BWSENSING Cost-Effective Single-Axis Digital Output With Modbus Inclinometer (BWM417)

BWSENSING Cost-Effective Single-Axis Digital Output With Modbus Inclinometer (BWM417)

The BWM417 is positioned as a cost-effective option in digital tilt measurement, combining a wide measurement range with fine resolution and rugged environmental protection. According to the manufacturer, the model supports selectable digital interfaces and is intended for applications such as tower tilt monitoring, photovoltaic tracking, equipment automation, and surveying instrumentation.

Design and Features

Single-axis tilt measurement architecture

The BWM417 is specified for single-axis inclination measurement (listed as the X axis), which is common where a single plane of motion or slope is the primary concern (for example, boom angle, platform pitch, or structural lean).

Rugged enclosure and environmental rating

The device is rated IP67, indicating dust-tight protection and resistance to temporary immersion in water—features often required for outdoor installations and industrial machinery.

Compact form factor for embedded and field deployments

BWSENSING lists the unit’s dimensions as L90 × W40.5 × H26 mm, supporting installation in constrained mechanical spaces such as equipment housings, pole/tower enclosures, or sensor brackets.

Technology and Specifications

Measurement performance

Manufacturer-stated performance highlights include:

• Measurement range: ±180°

• Resolution: 0.001° (under “completely still” condition)

• Highest accuracy: 0.01° (room temperature)

These specifications make the BWM417 suitable for both real-time angle feedback (e.g., leveling) and precision monitoring where small angle changes matter.

Electrical and environmental operating conditions

Key electrical/environmental characteristics listed by the manufacturer include:

• Power supply: 9–35 V (typical 12 V)

• Working current: typical ~30 mA (no load), with min/typ/max ranges shown

• Operating temperature: -40°C to +85°C

• Storage temperature: -55°C to +100°C

Output interfaces and sampling configuration

BWSENSING lists RS232 / RS485 / TTL as optional outputs for the BWM417.
It also lists an output frequency that is adjustable from 5–100 Hz, enabling users to tune reporting rate for control responsiveness versus bus load and power consumption.

Reliability and robustness indicators

The manufacturer includes additional durability-related specifications:

• MTBF: ≥90,000 hours

• Impact resistance: 2000 g, 0.5 ms, 3 times/axis

• Insulation resistance: ≥100 MΩ

“Modbus” in context (industrial integration)

The BWM417 is marketed as a Modbus inclinometer. In industrial practice, Modbus is a widely-used communications protocol (commonly implemented over serial links such as RS-485) for connecting sensors and instruments to PLCs, RTUs, and SCADA systems.
RS-485 itself is a common physical layer for industrial serial networks due to its differential signaling and suitability for multi-drop bus topologies.

Applications and Use Cases

BWSENSING explicitly lists multiple target applications for the BWM417, including:

• Industrial automatic leveling

• Photovoltaic automatic tracking (panel tilt optimization)

• Tower tilt monitoring (communications towers, wind towers, utility structures)

• Structural deformation monitoring (settlement/lean trend detection)

• Surveying and mapping instruments

• Equipment automation and lifting equipment inclination control

In practice, single-axis Modbus inclinometers are often used where a tilt angle must be:

• Logged over time for compliance or safety (trend monitoring)

• Integrated into alarms (threshold-based alerts)

• Fed into closed-loop control (leveling platforms, orientation control, automated tracking)

Advantages / Benefits

Digital output simplifies PLC/SCADA connectivity

By focusing on digital communication outputs (including RS485 options), the BWM417 can reduce analog scaling errors and simplify integration into industrial control networks where Modbus-style device polling and register mapping are common.

Wide range with fine resolution

A ±180° range with 0.001° resolution supports both large-angle motion and fine-grained detection in stable conditions, useful for monitoring slight lean changes on structures or calibration/leveling tasks.

Outdoor-ready protection level

An IP67 rating helps support deployment on exposed assets (towers, solar structures, construction equipment) where dust, rain, washdown, or splash exposure can be expected.

FAQ Section

What is the BWSENSING BWM417?

The BWSENSING BWM417 is a single-axis inclinometer designed to measure tilt angle over a wide range and output the result through selectable digital interfaces (including RS485 options) for industrial monitoring and automation.

How does the BWM417 work?

An inclinometer measures inclination relative to gravity (tilt). The BWM417 senses tilt on one axis (listed as X axis) and reports the angle digitally, enabling controllers or monitoring systems to read the value at a configured update rate.

Why is a Modbus inclinometer important?

Modbus is widely used in industrial systems for connecting sensors to PLCs and SCADA networks. A Modbus-oriented inclinometer can simplify integration and standardized data acquisition in automation environments that already rely on Modbus-style device polling and register-based data exchange.

What are the benefits of the BWM417 compared with other tilt sensors?

Key manufacturer-listed benefits include IP67 protection, ±180° range, 0.001° resolution, 0.01° accuracy at room temperature, and configurable 5–100 Hz output frequency—features that support both rugged deployment and precise angle monitoring.

Summary

The BWSENSING BWM417 is a cost-effective, single-axis digital inclinometer aimed at industrial and outdoor monitoring tasks where wide-range tilt measurement, fine resolution, and robust IP67 protection are required. With configurable digital interface options (including RS485) and adjustable update rates, it is suited to applications spanning automation leveling, solar tracking, tower tilt monitoring, and structural deformation monitoring, especially in environments that benefit from standardized industrial communications
