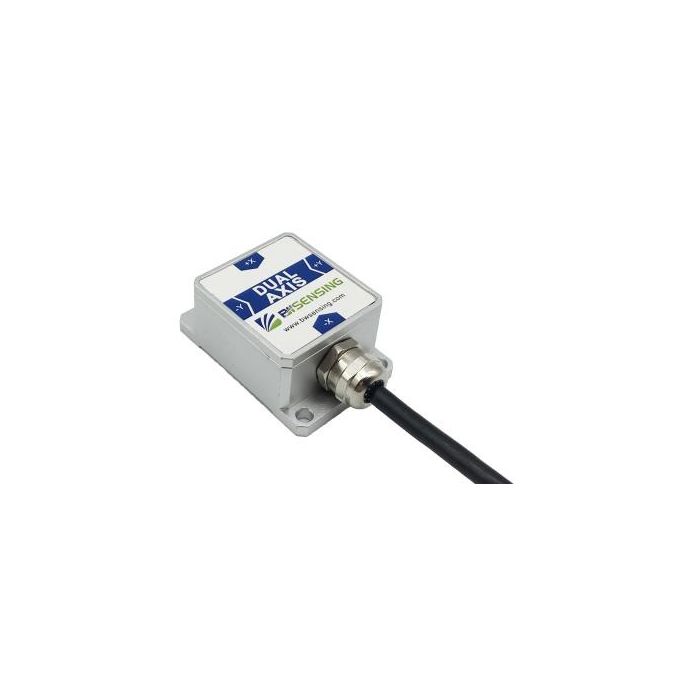

BWSENSING Digital Dual-Axis Inclinometer (BWL326S)

BWSENSING Digital Dual-Axis Inclinometer (BWL326S)

According to the BWL326S technical documentation, the device is positioned as a low-cost, compact, industrial-grade inclinometer that uses a MEMS accelerometer as its sensing element and targets installations where space, weight, and budget are constrained, but robust field operation is still required.

Design and Features

Compact industrial enclosure

The BWL326S is described as a small, lightweight inclinometer intended for tight integration spaces, with product documentation emphasizing its suitability for “space-restricted” installations.

Environmental protection and mechanical design

Industrial tilt sensors are often deployed on mobile machinery and outdoor assets where dust, vibration, and water ingress are common. The BWL326S documentation specifies IP67 protection and a metal connector, indicating an enclosure designed for harsh environments.
In IP coding practice, IP67 generally corresponds to dust-tight protection and resistance to temporary immersion, which is commonly referenced in industrial equipment selection.

Installation-oriented features

The BWL326S manual excerpts highlight installation guidance intended to reduce mounting-related measurement error (e.g., ensuring the sensor mounting surface is flat and aligned).

Technology and Specifications

Sensing principle

The BWL326S is documented as using an industrial-grade MEMS accelerometer to infer inclination by measuring the gravity vector projection onto the sensor axes. This is a standard approach for static or quasi-static tilt measurement in modern compact inclinometers.

Key performance specifications (manufacturer documentation)

The following specifications are explicitly described in BWL326S documentation excerpts:

Digital communications context

Many industrial inclinometers integrate via serial communication (commonly RS-485 in noisy environments) because it supports longer cable runs and differential signaling. RS-485 is widely used in industrial networks for robust data transmission.
(While RS-485 is common in this device class, always confirm the exact interface variant and protocol from the specific BWL326S ordering/configuration documents provided with your unit.)

Applications and Use Cases

The BWL326S is positioned for attitude/tilt measurement in industrial settings, where dual-axis inclination is useful for both monitoring and closed-loop control. Typical application patterns for dual-axis digital inclinometers include:

Mobile machinery and construction equipment

• Boom, mast, or platform leveling (cranes, lifts, aerial platforms)

• Pitch/roll monitoring for safety interlocks and stability logic

• Machine body inclination feedback for operator displays and automation

These use cases align with the sensor’s documented ±90° range, rugged protection rating, and emphasis on resistance to external disturbance in the product description.

Industrial automation and alignment

• Jigs, fixtures, and alignment stations for angular setup

• Platform leveling for inspection, packaging, and robotic cells

• Position verification where small, repeatable tilt thresholds matter

Infrastructure and structural monitoring

• Tilt monitoring on structures, supports, and frames where gradual inclination changes can be an early indicator of movement

• Temporary deployments where low power and compact size simplify installation

(For structural health monitoring, sampling strategy and calibration procedures are as important as sensor choice; consult the device manual and your engineering requirements.)

Advantages / Benefits

Cost-effective digital tilt measurement

The BWL326S is explicitly described as a low-cost dual-axis digital inclinometer, aiming to deliver practical performance without the pricing of higher-precision or multi-sensor inertial systems.

Strong environmental fit for field deployments

With IP67 protection and industrial design features such as a metal connector, the model is positioned for outdoor equipment and demanding plant environments.

Practical integration characteristics

Documented features such as compact size, low weight, and temperature range support deployment across varied industrial climates and machinery compartments.

FAQ Section

What is the BWSENSING BWL326S?

The BWSENSING BWL326S is a low-cost dual-axis digital output inclinometer designed to measure tilt angles (two axes) over a ±90° range using a MEMS accelerometer.

How does the BWL326S work?

Like many modern inclinometers, it uses a MEMS accelerometer to measure gravity’s direction relative to the sensor body, then converts that into inclination angles for two axes.

Why is the BWL326S important in industrial systems?

Dual-axis tilt measurement is foundational for leveling, stability monitoring, and attitude feedback in machinery and structures. A compact digital inclinometer can improve reliability in harsh environments where analog signals are more susceptible to noise.

What are the benefits of the BWL326S?

Documented benefits include ±90° range, up to 0.1° accuracy, 0.01° resolution, −40 to +85 °C operation, and IP67 protection, packaged in a compact form factor suited for industrial deployment.

Summary

The BWSENSING BWL326S Digital Dual-Axis Inclinometer is an industrial MEMS-based tilt sensor engineered for cost-effective, compact, and rugged inclination measurement. With a ±90° measuring range, up to 0.1° stated accuracy, 0.01° resolution, wide −40 to +85 °C operating temperature, and IP67 protection, it fits common requirements in mobile machinery, automation alignment, and field monitoring scenarios where dependable dual-axis tilt feedback is needed.
