In XAG’s ecosystem, the XRTK7 is positioned as a multi-role tool that can support point-marking survey workflows, signal/communication relaying, and portable base station functionality, with the goal of maintaining high-precision positioning even in areas with limited connectivity by combining onboard communications and positioning methods.

Unlike fixed RTK base stations permanently installed on buildings or masts, the XRTK7 is intended to be deployed where needed—at the edge of a field, near a work zone, or at a temporary reference point—then packed away and reused across sites. It is typically paired with the XAG One mobile application for device onboarding, configuration, firmware updates, and survey workflows.

Design and Features

Portable, field-ready form factor

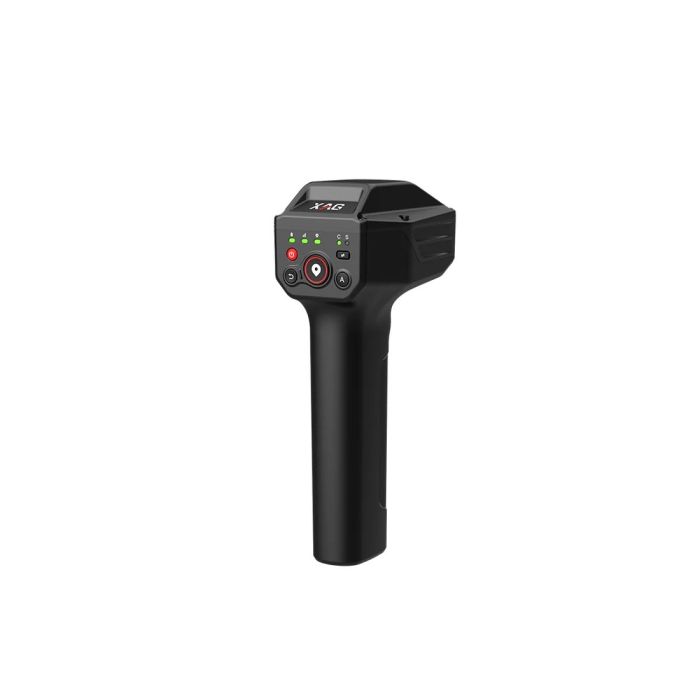

The XRTK7 is built as a handheld, portable unit with an integrated RTK antenna, physical controls for marking/undo marking and mode switching, and a USB Type-C charging port. The user manual describes major components such as the RTK antenna, SIM card slot (for cellular data), power and function buttons, and a handle containing a communication antenna.

Two primary operating modes

The XRTK7 supports two headline modes in common workflows:

• Point Marking for Mapping: Used for walking field boundaries and marking boundary points, obstacles, and non-spraying zones (geofencing-style features commonly used in precision ag task planning).

• Mobile Station (Positioning Station) Mode: Used as a portable reference station once reference coordinates are established, allowing other devices in the workflow to use it as a reference source.

Tripod-mounted base station setup

When used as a positioning station, the XRTK7 is commonly mounted to a tripod. The manual specifies use of a 1/4" UNC tripod thread and recommends setting the station in an open area with adequate sky visibility (e.g., no obstructions above a specified elevation angle) to sustain satellite tracking and signal quality.

Technology and Specifications

Positioning and correction methods

The XRTK7 is described as combining multiple methods and links to support high-precision positioning across scenarios, including:

• PPP (Precise Point Positioning) technology as part of its high-precision positioning approach

• A 4G module for network-based workflows where coverage exists

• XLink communication link for ecosystem communications and relaying functions

The manual also outlines reference-coordinate approaches such as Network RTK, PPP satellite-based positioning, and CORS (using third-party CORS accounts), reflecting common RTK/PPP deployment patterns in agriculture and surveying.

Device onboarding and management

Operationally, the XRTK7 is added to the XAG One app via QR code/serial entry or Bluetooth pairing. Firmware updates are handled through the same app interface, consistent with consumerized device management patterns in modern agricultural robotics and precision ag tools.

Physical specifications

The user manual lists the following baseline specifications for the XRTK7 device (model M3RTK7AH):

• Dimensions: 222 × 112 × 75 mm

• Weight: 0.55 kg

Wireless and cellular frequency support

The manual provides detailed radio frequency ranges (useful for deployment planning and regulatory context). Highlights include:

• Wi-Fi: 2.4 GHz and 5.8 GHz ranges (regional ranges noted for FCC/CE)

• 2G (CE): GSM 900 and DCS 1800 with stated power classes

• 3G (CE): WCDMA Bands I, V, VIII

• 4G: LTE Bands including 1, 3, 5, 7, 8, 20, 28 (frequency ranges enumerated in the manual)

These ranges are typically relevant for integrators and operators evaluating SIM options, regional carrier compatibility, and field connectivity constraints.

Applications and Use Cases

Precision agriculture field mapping

A primary use case is field boundary mapping via point marking: walking boundaries, marking obstacles, and recording non-spraying zones to support mission planning and safer, more accurate automated operations. The manual emphasizes correct handling (e.g., holding the device vertically and avoiding signal blockage) to protect mapping accuracy.

Portable RTK positioning station for temporary sites

In positioning-station mode, the XRTK7 can be set up as a temporary base/reference station for operations that require a local reference source, especially when moving between farms or work sites. The manual describes establishing reference coordinates and verifying “Fix”/normal status to confirm successful setup.

Operations in mixed-connectivity environments

XAG positions the XRTK7 as helpful for maintaining precision in environments with weak or absent network signal, using the XRTK7 to support positioning continuity in the broader system.

Advantages / Benefits

Flexible deployment vs. fixed base stations

Because it is portable and tripod-mountable, the XRTK7 can reduce the need for permanent installations when operators frequently change locations. This is particularly useful for contractors or multi-farm operations that need consistent positioning without installing infrastructure at every site.

Consolidated workflows in one device

The XRTK7 is presented as a multi-function station combining mapping (survey point marking), relay/networking functions, and positioning station capabilities. This consolidation can simplify field kits and reduce the number of separate tools required for setup and verification.

App-based device management

App onboarding, device naming, and firmware update flows through XAG One align with operational needs for fleets and teams, where consistent setup and updates matter for reliability and repeatable accuracy.

FAQ Section

What is the XAG XRTK7 Mobile Station?

The XAG XRTK7 Mobile Station is a portable positioning and mapping device used in XAG’s precision agriculture ecosystem. It supports point-marking field mapping and can operate as a portable positioning station (base station) after reference coordinates are established.

How does the XAG XRTK7 Mobile Station work?

In mapping workflows, it is used to mark boundary points and obstacles while connected to the XAG One app. In positioning-station mode, it is mounted (commonly on a tripod), establishes reference coordinates via available methods (such as network RTK, PPP satellite-based positioning, or CORS), and then serves as a reference source for other devices.

Why is the XAG XRTK7 Mobile Station important?

For precision agriculture and automated operations, accurate positioning underpins reliable route planning, boundary compliance, and repeatable execution. XAG also describes the XRTK7 as supporting centimeter-level positioning continuity in weak-signal environments as part of broader operational workflows.

What are the benefits of the XAG XRTK7 Mobile Station?

Key benefits include portability, support for both survey point marking and positioning-station workflows, app-based onboarding and firmware management, and multi-band wireless/cellular connectivity features as described in the user manual.

Summary

The XAG XRTK7 Mobile Station (09-016-00083) is a portable GNSS/RTK field tool designed to unify field mapping by point marking, device networking/relaying, and portable positioning-station setup in a single device. With app-based configuration via XAG One, tripod-ready deployment, and documented multi-band connectivity, it is commonly used in precision agriculture workflows where accurate field geometry and reliable positioning references are essential for efficient, repeatable operations.
