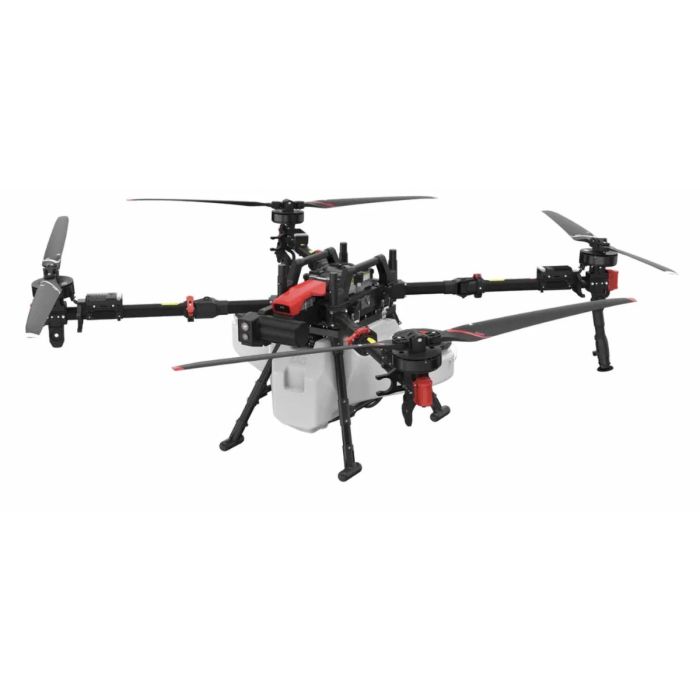

XAG P150 Standard 7KW 6B2C Kit

XAG P150 Standard 7KW 6B2C Kit

In distributor catalogs, the “6B2C” label typically denotes the included six batteries (6B) and two chargers (2C), while “7KW” refers to the kit’s charging ecosystem tier intended to support rapid battery turnaround and extended field workdays. The kit is marketed as a complete, field-ready package that combines the aircraft, spraying module, power system, remote controller, and RTK positioning support in one bill of materials.

Within the broader P150 family, this kit is often presented as a “standard” package for professional operators who want a balance between throughput and infrastructure complexity—more scalable than entry bundles, but simpler than multi-drone “swarm” configurations. Its typical deployment scenarios include broad-acre crop protection, orchard spraying, and other applications where aerial coverage, repeatability, and time-to-treatment can influence agronomic results.

Design and Features

Bundle-oriented design (what the kit includes)

A representative listing for the XAG P150 Standard 7KW 6B2C Kit describes the following configuration:

• 1× XAG P150 Max agricultural drone with RevoSpray 5

• 6× B141050 Smart SuperCharge batteries (20,000 mAh)

• 2× CM13600S smart chargers

• 2× XAG 2024 battery cooling towers

• 1× SRC5 smart remote controller

• 1× XRTK7 mobile station (RTK rover)

Although the kit name references “P150 Standard,” the same listing frames the aircraft as P150 Max with RevoSpray 5, reflecting how sellers sometimes align P150 “standard” tiers with P150 Max hardware and the RevoSpray 5 spraying system.

Airframe and field logistics

The P150-series platform emphasizes a foldable, transport-oriented quad-rotor design intended to be practical for field deployment across multiple job sites. Official P150 specifications cite folded and unfolded dimensional states that reflect this transport-first approach.

Precision navigation and safety sensing

The kit listing highlights RTK positioning (±10 cm) and 4D radar obstacle avoidance as core operating features, paired with terrain-following behavior for maintaining consistent application height over uneven ground. This combination is aimed at supporting repeatable coverage patterns and reducing risk in complex environments such as orchards, irregular field boundaries, and rolling terrain.

Technology and Specifications

Because agricultural drone performance depends on configuration and conditions, it is useful to separate (1) official platform specifications from (2) kit-level performance claims.

Aerial platform specifications (official P150 specs)

XAG’s official P150 specifications include:

• Protection rating: IPX6K

• Maximum flight speed: 18 m/s (noted with footnote context)

• Hovering precision with RTK enabled: ±10 cm (horizontal), ±10 cm (vertical)

• Rated takeoff weight (spraying): 114 kg; max takeoff weight (spraying): 125 kg (as listed in the official spec table)

These official values provide baseline expectations for the P150 platform family and help differentiate it from seller-specific performance summaries.

Kit-level performance and configuration (P150 Max + RevoSpray 5 listing)

A representative kit listing describes a high-throughput spray configuration with:

• Spray tank: 80 L / 80 kg payload

• Flow rate: up to 32 L/min (dual pumps)

• Droplet size: 60–500 μm

• Spray width: 5–10 m

• Max flight speed: 20 m/s

• Max takeoff weight: 136 kg (spraying) / 140 kg (spreading)

• Motors: 4 × 4850 W rated power

• Battery: B141050 (1050 Wh, 20,000 mAh)

• Charge time: referenced as “7 minutes (parallel supercharge)” (seller-published)

The same listing also describes granular spreading capacity (when configured with a spreader module), including a 115 L granule container, up to 300 kg/min spread rate, and 5–9 m spread width, along with radar detection range details.

Interpreting performance claims

Operational results depend on factors such as application rate, field shape, refill logistics, wind and canopy conditions, and regulatory constraints. Seller listings typically note that performance varies by environment and that operators must follow local regulations and label guidance.

Applications and Use Cases

Broad-acre crop spraying

For broad-acre operations, the kit is positioned around throughput—high liquid capacity and high flow rate are intended to reduce refill frequency and increase treated area per hour when conditions allow. Seller materials cite productivity figures (e.g., hectares per hour) in the context of maximizing application output.

Orchard and dense-canopy spraying

The quad-rotor configuration is often framed around generating a strong downwash to improve droplet penetration and uniformity in denser canopies. The kit listing explicitly connects its 80 L configuration and flight speed capability with orchard efficiency and reduced refills.

Terrain-adaptive operations

Terrain-following features, supported by radar and RTK positioning, are marketed for consistent height control over uneven ground—useful in hilly farmland and mountainous orchard blocks where fixed-altitude flight can lead to uneven application or safety risk.

Contractor and multi-farm workflows

The 6B2C power configuration is designed for continuous operations via battery rotation: multiple batteries plus fast charging and cooling towers support a workflow where one set operates while others are charging/cooling, reducing downtime and helping crews maintain daily schedules across multiple farms.

Advantages / Benefits

Operational continuity (6B2C + cooling towers): Six high-capacity batteries, two chargers, and two cooling towers are aimed at reducing charging bottlenecks and sustaining field pace during peak spray windows.

High-throughput spraying envelope: An 80 L class tank and dual-pump system (as listed) support higher application throughput where label rates and weather allow, especially for commercial operators.

Precision and repeatability: RTK-level positioning and radar-assisted sensing support repeatable mission paths, consistent swath spacing, and stable hovering/turning behavior over irregular fields.

Weather-resilient design claims: IPX6K protection is cited in both official P150 specifications and kit materials, aligning with the demands of agricultural environments involving dust, humidity, and spray exposure.

FAQ Section

What is the XAG P150 Standard 7KW 6B2C Kit?

It is a bundled agricultural drone package that combines an XAG P150-series aircraft (commonly listed as P150 Max with RevoSpray 5) with a scaled power ecosystem: 6 batteries, 2 chargers, and cooling towers, plus an SRC5 controller and an RTK rover station.

How does the XAG P150 Standard 7KW 6B2C Kit work?

The drone performs planned aerial missions for spraying (and, in some configurations, spreading). The 6B2C bundle supports battery rotation—one battery is used in flight while others are charging and cooling—helping maintain steadier daily output. RTK and radar features support more repeatable routes and consistent application height.

Why is the XAG P150 kit important for professional agriculture?

It is designed to reduce the time and labor constraints of large-scale application by increasing aerial throughput and improving repeatability—especially when short weather windows and field access challenges make timing critical.

What are the benefits of the 6B2C configuration?

The main benefits are reduced downtime and more continuous operations: six batteries and two chargers, supported by cooling towers, are intended to keep the aircraft working longer each day by smoothing the charging/cooling cycle.

Summary

The XAG P150 Standard 7KW 6B2C Kit is a commercial agricultural drone bundle designed to deliver high daily productivity by combining a P150-series aircraft and modern application systems with a scaled power-and-cooling ecosystem. With published positioning around RTK precision, radar-assisted sensing, and a kit structure built for battery rotation, it is commonly targeted at professional users who need repeatable coverage and reliable uptime for time-sensitive spraying operations across broad-acre fields and orchards.
