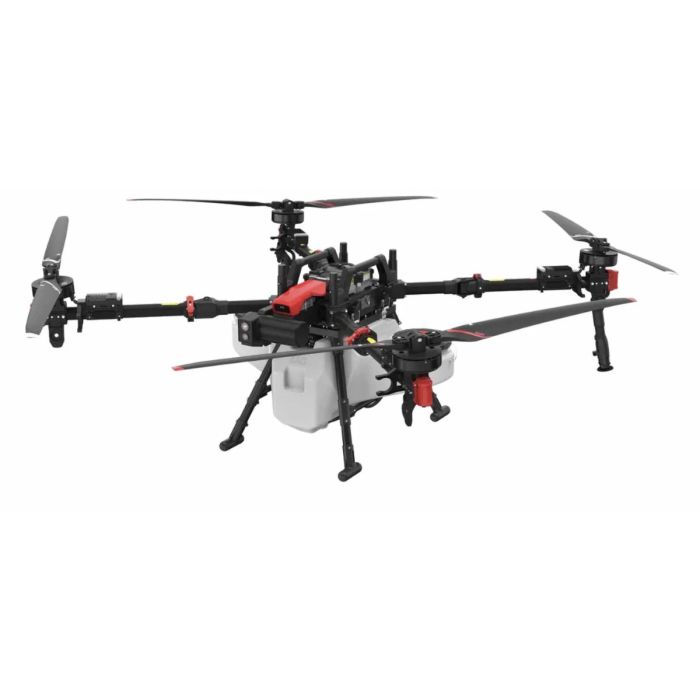

XAG P150 Max Agricultural Drone Starter 7KW 2B2C Kit

XAG P150 Max Agricultural Drone Starter 7KW 2B2C Kit

XAG positions the P150 Max as a multi-role platform for autonomous spraying, spreading, field mapping, and material transport, emphasizing high payload capacity, rapid mission turnaround, and integrated digital agriculture workflows. The P150 Max product page highlights an 80 kg payload, 80 L smart liquid tank, up to 32 L/min standard spraying flow rate (or up to 46 L/min when upgraded to a four-nozzle configuration), and 5–10 m effective spray width with an adjustable droplet-size range.

In practice, the Starter 7kW 2B2C kit is commonly positioned as a lower-cost on-ramp into the P150 Max ecosystem—providing the aircraft, control system, positioning/mapping support, and the minimum battery/charging stack needed to begin sustained field work, while leaving room for later upgrades (such as additional batteries, higher throughput charging, or four-nozzle spraying).

Design and Features

P150 Max heavy-lift airframe and modular mission concept

The P150 Max is built around a high-capacity agricultural UAV architecture designed to support multiple mission types. XAG presents the platform as capable of spraying, granule spreading, and sling-load transport, with integrated mapping and modern remote-control tooling for field operations.

RevoSpray 5 spraying system

Most public descriptions of the Starter kit specify the drone bundled with RevoSpray 5, XAG’s spraying module intended to deliver consistent coverage across a wide swath. XAG’s official P150 Max page lists a 5–10 m effective spray width and 60–500 μm droplet-size adjusting range, reflecting a design aimed at matching spray characteristics to crop, canopy, and application objectives.

Included control, charging, cooling, and RTK/mapping components

A representative “what’s included” description for the Starter 7kW 2B2C bundle lists: P150 Max with RevoSpray 5, SRC5 smart remote controller, 2× smart supercharge batteries (B141050), 2× CM13600S chargers, a 6kW parallel charging kit, a battery cooling tower, and an XRTK7 mobile station.

This set reflects a common operational pattern in agricultural drones: pairing a high-output aircraft with a basic-but-functional power rotation (two batteries) and a supporting charging/cooling workflow to keep missions moving during time-sensitive application windows.

Technology and Specifications

Key platform specifications (P150 Max)

XAG’s official P150 Max specifications and feature highlights include:

• Max payload capacity: 80 kg

• Max tank capacity: 80 L smart liquid tank

• Max flow rate: 32 L/min (standard); up to 46 L/min when upgraded to a four-nozzle kit

• Effective spray width: 5–10 m

• Droplet size adjusting range: 60–500 μm

• Pumps: flexible impeller pumps, 16 L/min per pump, with XAG noting chemical-resistant impeller design and extended service-life claims

XAG also presents the P150 Max spreading subsystem (RevoCast 5) as supporting a 115 L granule container and up to 300 kg/min maximum spread rate with an effective spread width figure shown as 9 m.

Field mapping and positioning workflows

XAG highlights integrated mapping capability and “map-free 3D flight” concepts for field operations, and the P150 Max page references onboard mapping capacity “up to 20 hectares” per flight in its headline feature summary.
The Starter bundle’s inclusion of an XRTK7 mobile station aligns with the broader role of RTK/PPP-capable GNSS tools in precision agriculture—supporting repeatable field geometry, route planning, and accurate mission boundaries when operating in variable terrain and connectivity conditions.

Charging ecosystem (Starter 7kW 2B2C context)

In kit naming conventions used by multiple distributors, 7kW indicates a lower-tier charging throughput class compared with higher bundles such as 14kW 4B4C.
The Starter kit’s listed inclusion of a 6kW parallel charging kit suggests the 7kW label is used as a practical “kit tier” rather than a single-component rating, with charging throughput depending on charger configuration, power source, and operating conditions.

Applications and Use Cases

Autonomous crop spraying at commercial scale

With an 80 L tank and high stated flow-rate capability (including 46 L/min with a four-nozzle upgrade), the P150 Max is positioned for large-field crop protection tasks where time windows are short and uniform coverage matters.

Granular spreading and broad-acre input distribution

The P150 Max ecosystem includes a 115 L granule container and high stated maximum spread rate, supporting use cases such as fertilizer distribution, seeding, or other granular applications where aerial spreading can reduce ground compaction and expand workable conditions.

Field mapping and boundary creation

Integrated mapping references (“map-free 3D flight” and hectares-per-flight mapping highlights) indicate use cases beyond application: boundary mapping, obstacle marking, and mission planning workflows that feed into variable-rate programs and more structured input management.

Entry-level fleet deployment for service providers

The Starter 2B2C battery/charger count is often suited to operators beginning with one aircraft, smaller acreage, or shorter daily duty cycles—then scaling into higher-throughput power stacks (more batteries and/or higher-tier charging kits) as utilization grows.

Advantages / Benefits

Lower initial barrier to P150 Max adoption

Compared with higher-tier bundles (e.g., 14kW 4B4C, Swarm/28kW kits), the Starter 7kW 2B2C kit is commonly priced at a lower point (public listings show US$28,900), making it a more accessible entry into the P150 Max platform.

A “complete workflow” bundle rather than drone-only

By bundling the aircraft, smart controller, batteries, chargers, cooling support, and a mobile station, the kit is structured to reduce integration uncertainty for first-time operators who want a coherent operational stack out of the box.

Upgrade pathway for higher throughput

XAG’s own P150 Max page notes higher flow rate when upgraded to a four-nozzle kit (up to 46 L/min), and reseller ecosystems offer larger battery/charging bundles—supporting a stepwise scale-up model from Starter to Standard/Ultimate configurations.

FAQ Section

What is the XAG P150 Max Starter 7kW 2B2C Kit?

It is a bundled package that includes the XAG P150 Max agricultural drone plus a starter power ecosystem. “2B2C” typically means two batteries and two chargers, and the kit is commonly listed at US$28,900 by multiple resellers.

How does the XAG P150 Max work?

The P150 Max is a multi-role agricultural UAV designed for automated field work. XAG highlights an 80 kg payload, an 80 L smart liquid tank for spraying, and modular subsystems for spreading and transport, supported by onboard mapping and modern remote-control workflows.

Why is the XAG P150 Max important in precision agriculture?

High-capacity agricultural drones can reduce turnaround time in field operations by combining large payloads with automated routes and consistent application. XAG positions the P150 Max around high throughput (e.g., 32 L/min standard spraying; up to 46 L/min with four nozzles) and wide spray coverage to improve productivity in large-field missions.

What are the benefits of the 7kW 2B2C Starter configuration?

The main benefits are lower upfront cost and a bundled workflow that includes charging and positioning support. It provides a starting point for operations, with an upgrade path to larger battery/charger bundles as utilization increases.

Summary

The XAG P150 Max Agricultural Drone Starter 7kW 2B2C Kit is an entry-tier bundle built around XAG’s P150 Max high-capacity agricultural UAV and a practical starter charging ecosystem. With official platform highlights including an 80 kg payload, 80 L tank, and 32 L/min spray flow (or up to 46 L/min with a four-nozzle upgrade), the kit targets professional operators who want a complete, scalable workflow—starting with two batteries and two chargers—and the ability to expand into higher-throughput configurations as operational demand grows.
