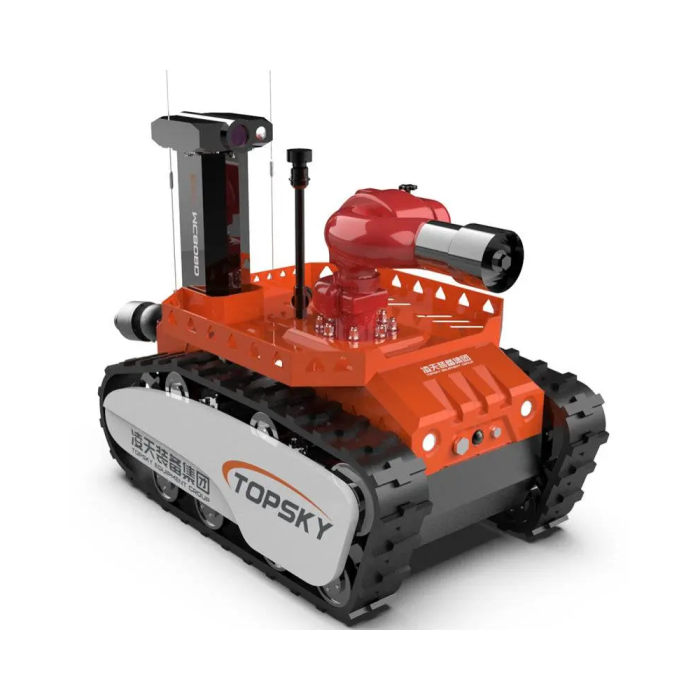

Topsky Tianlong Conquest D5 Explosion-Proof Fire Fighting Robot (RXR-MC80BD)

Topsky Tianlong Conquest D5 Explosion-Proof Fire Fighting Robot (RXR-MC80BD)

The D5 (RXR-MC80BD) belongs to a class of tracked fire robots intended to reduce firefighter exposure to extreme heat, smoke, and hazardous atmospheres by enabling standoff suppression and real-time situational awareness. Vendor descriptions emphasize its high explosion-proof rating, environmental sealing, and operational features such as a long-range water/foam cannon, long-distance wireless control, and the ability to move hoses and equipment closer to a fireground while the operator remains at a safer distance.

Design and Features

Explosion-proof construction for hazardous industrial scenes

A defining characteristic of the Tianlong Conquest D5 is its intended use in environments where flammable vapors or explosive atmospheres may be present. Product listings commonly specify a high explosion-proof grade ExdIIB+H2T6Gb and a high protection level IP67, reflecting a design philosophy centered on safer operation under harsh, wet, and potentially ignition-prone conditions.

Topsky’s own product overview for the RXR-MC80BD states the platform is designed and certified for explosive environments and emphasizes its role in improving rescue safety and reducing casualties in high-risk missions.

Tracked mobility and obstacle handling

The D5 platform uses a tracked chassis designed to maintain traction on slippery or uneven surfaces such as wet concrete, foam-covered floors, and debris-littered industrial yards. A published specification table for the RXR-MC80BD lists high-temperature resistant tracks, 220 mm obstacle crossing, 500 mm wading depth, and a 40° stability/climb capability, supporting deployment in environments where traditional vehicles or crew approaches may be blocked.

Long-range firefighting cannon (water and foam)

RXR-MC80BD is typically configured with a high-capacity firefighting monitor designed for both water and foam discharge. A published parameter set lists:

• Water range: ~80 m

• Foam range: ~73.2 m

• Flow: 80 L/s (water) and 80 L/s (foam)

• Water inlet: 2 × DN80

• Working pressure: 0–1.2 MPa

This combination is intended for standoff tasks such as flame knockdown, cooling of equipment and structures, and sustained suppression in industrial environments where high flow and reach are valuable.

Remote control and standoff operations

A core operational advantage of the D5 is remote operation at significant distance. The same technical table lists a wireless control distance of 1110 m, enabling the operator to remain outside the most dangerous area during early-stage suppression or reconnaissance.

Fireground logistics and equipment transport

Beyond extinguishing, the Tianlong Conquest D5 is marketed as a practical support tool that can transport equipment and materials, including moving hoses closer to an incident scene. Vendor descriptions note that it can carry equipment and assist with hose-related tasks, which is relevant for large sites where extending suppression lines can be physically demanding and hazardous.

Sensor-ready reconnaissance capabilities

Although exact sensor payloads vary by configuration, the RXR-MC80BD category is generally marketed as a firefighting + scouting robot. Distributor descriptions often reference toxic and harmful gas detection and the role of the robot in reconnaissance as part of an integrated emergency response workflow.

Technology and Specifications

Chassis and mobility specifications

• Robot weight: 529 kg

• Robot size: 1305 × 800 × 1065 mm

• Traction: 3800 N

• Speed: 0–1.81 m/s

• Obstacle crossing: 220 mm

• Wading depth: 500 mm

• Climb/stability angle: 40°

• Protection rating: IP68 (listed in the technical table)

• Wireless control distance: 1110 m

• Work time: 2–6 hours (listed range)

• Charging time: 6–8 hours

Fire cannon specifications

• Spray angle (max): 120°

• Range: Water 80 m / Foam 73.2 m

• Water inlet: 2 × DN80

• Flow: 80 L/s (water), 80 L/s (foam)

• Working pressure: 0–1.2 MPa

• Elevation / aiming: −18° to 90° (longitude) and −90° to 90° (horizontal) as listed

Industrial sealing and explosion-proof listing

Some distributor listings for the D5 specifically call out ExdIIB+H2T6Gb and IP67 as headline safety attributes.
(Exact certification packages can vary by procurement region and compliance requirements.)

Applications and Use Cases

Petrochemical plants and refineries

Topsky’s RXR-MC80BD is explicitly positioned for petrochemical refining environments where fires can involve volatile fuels, high radiant heat, and explosion risk. In such contexts, the robot may be used for initial approach, cooling of process equipment, and standoff suppression to limit escalation.

Oil, gas, and fuel storage facilities

Fuel terminals and tank farms often require rapid deployment of high-flow streams and remote reconnaissance during incidents. The D5’s long-range cannon and tracked chassis are aligned with tasks such as cooling adjacent tanks, protective water curtains, and knockdown operations where human proximity is unsafe.

Chemical manufacturing and hazardous material incidents

Chemical storage and manufacturing sites may involve unknown atmospheres and toxic byproducts. A scouting-capable firefighting robot supports safer operations by enabling remote approach, agent application, and situational monitoring during the most hazardous phase of response.

Large industrial yards, tunnels, and low-visibility operations

In smoke-heavy environments, visibility and navigation are reduced, increasing risk for personnel. Tracked robotic platforms can be used to push forward into hazardous zones while maintaining operator standoff and supporting continued suppression with stable, high-flow discharge.

Advantages / Benefits

Reduced risk to firefighters and emergency teams

The central benefit of Tianlong Conquest D5 (RXR-MC80BD) is reducing exposure to heat, smoke, and explosive atmospheres by enabling remote suppression and reconnaissance, especially during the earliest stages when conditions are most volatile.

High-capacity suppression for industrial-scale incidents

An 80 L/s water/foam flow rating and long-range performance are designed for practical industrial impact—cooling equipment, controlling radiant heat spread, and applying significant volumes quickly.

Robust mobility in water/foam environments

The listed combination of IP sealing, 500 mm wading depth, and obstacle handling supports operation in wet firegrounds where spray, runoff, and foam blanket coverage can impair conventional vehicles.

Long-distance control for safer operating positions

A published 1110 m remote control distance supports safer incident geometry, allowing command teams to establish protected operating positions while the robot advances toward the hazard.

FAQ Section

What is Topsky Tianlong Conquest D5 (RXR-MC80BD)?

Topsky Tianlong Conquest D5 is an explosion-proof firefighting and scouting robot based on the RXR-MC80BD platform, designed for remote suppression and reconnaissance in high-risk industrial environments.

How does Tianlong Conquest D5 work?

It is remotely operated over long distance and uses a tracked chassis to move into hazardous areas. The robot applies water or foam through a high-flow firefighting cannon and supports reconnaissance workflows used in explosive or smoke-heavy incidents.

Why is Tianlong Conquest D5 important?

It reduces the need for firefighters to enter the most dangerous zones during early response, helping improve safety in incidents involving flammable vapors, toxic smoke, or extreme heat.

What are the benefits of Tianlong Conquest D5?

Key benefits include high-flow water/foam delivery (80 L/s), long-range discharge (water ~80 m), tracked mobility with obstacle and wading capability, and long-distance wireless control (~1110 m).

Summary

Topsky Tianlong Conquest D5 (RXR-MC80BD) is an explosion-proof, tracked firefighting and reconnaissance robot designed for high-risk industrial incidents such as petrochemical fires and fuel storage emergencies. With published specifications including 80 L/s water/foam flow, water range ~80 m, 2 × DN80 inlet, 0–1.81 m/s mobility, and ~1110 m wireless control distance, the platform is engineered to deliver meaningful suppression capability while improving responder safety through remote operation and standoff tactics.
