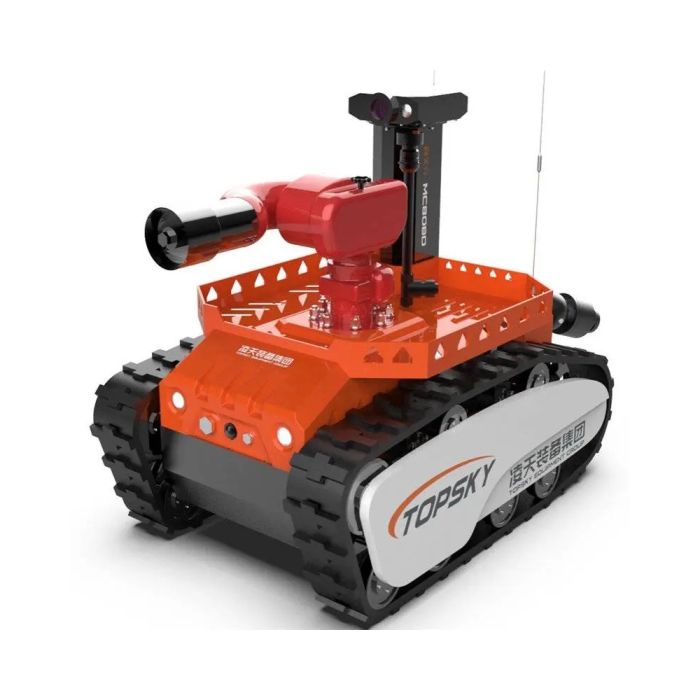

Topsky Dragon Conquest D4 Explosion-Proof Firefighting And Scouting Robot (RXR-MC80BD)

Topsky Dragon Conquest D4 RXR-MC80BD (Dragon Conquest D4 RXR-MC80BD)

The system is typically classified as a tracked unmanned ground vehicle (UGV) equipped with a high-flow water/foam monitor, multi-sensor situational awareness, and integrated gas/environment detection for emergency response missions in petrochemical and industrial settings.

The Dragon Conquest D4 naming is commonly used by distributors to identify a specific configuration within Topsky’s broader RXR industrial firefighting robot family. In listing descriptions, the D4 is positioned as a fast-moving, high-protection robot with explosion-proof certification, IP-rated sealing, and live telemetry reporting via a cloud-connected monitoring platform.

Design and Features

Tracked chassis for hazardous terrain and hose-dragging

Dragon Conquest D4 is built on a tracked platform optimized for debris-strewn, water-soaked, and low-visibility environments. Topsky’s RXR-MC80BD design emphasizes impact resistance, obstacle crossing capability, and high traction—including the ability to drag two long DN80 fire hoses filled with water, a capability frequently highlighted for industrial firefighting operations where the robot must advance supply lines toward the fire scene.

Explosion-proof certification and IP sealing

A defining design goal of the Dragon Conquest D4 RXR-MC80BD is operational safety in explosive atmospheres, including fuel storage areas and chemical handling zones. Distributor specifications describe a high explosion-proof grade (ExdIIB+H2T6Gb) and a high protection level (IP67).
Topsky’s own RXR-MC80BD materials also emphasize explosion-proof certification and high protection levels, describing the platform as designed for explosive environments such as petrochemical refining and oil/gas storage.

Heat-tolerant track construction

Topsky lists track construction using heat-tolerant, fire-retardant rubber with a metal lining, supporting operations in high-temperature environments and improving survivability near radiant heat sources.

Water curtain self-cooling protection

To maintain survivability near active flames, RXR-MC80BD configurations are described as featuring an automatic water curtain cooling system, providing protective spraying over the chassis to reduce heat stress on components.

Remote monitor control (water and foam)

Dragon Conquest D4 is built around a remotely operated firefighting monitor capable of rotation, pitch adjustment, and multiple spraying modes, with the ability to switch between water and foam application—important for different fire classes (e.g., hydrocarbon fires vs. general combustibles).

Multi-sensor reconnaissance and telemetry

Beyond suppression, Dragon Conquest D4 is also designed for reconnaissance, including:

• HD video monitoring for real-time situational awareness

• audio collection (现场声音采集 / real-time sound monitoring)

• integrated gas/environment detection, including listed channels such as CO₂, CO, H₂S, CH₄, humidity, temperature

• optional thermal/“heat eye” detection through infrared thermal imaging

Some distributor descriptions also reference connection to a robot networked cloud platform that can report position, battery level, audio/video, and gas environment readings in real time.

Technology and Specifications

Mobility performance

Distributor specs for Dragon Conquest D4 list:

• Maximum linear speed: up to ≥1.81 m/s (≈5.51 km/h)

• Obstacle crossing height: ≥220 mm

• Wading depth: ≥500 mm

• Climbing ability: ≥83.9% (≈40°)

• Traction force: ≥2800 N

Topsky’s RXR-MC80BD technical specification page for this product family lists similar performance ranges, including 0–1.81 m/s speed, 220 mm obstacle crossing, 500 mm wading depth, and stability angles around 40° (configuration-dependent).

Dimensions and weight (vary by configuration)

Dragon Conquest D4 distributor listing:

• Dimensions: 1055 mm (L) × 490 mm (W) × 1055 mm (H)

• Weight: ≤490 kg

Topsky’s RXR-MC80BD family listing shows an alternate configuration set:

• Size: 1305 × 800 × 1065 mm

• Weight: 529 kg

These differences are typically attributed to chassis variants, protective structures, and included modules (e.g., sensor mast/PTZ assemblies).

Fire monitor (water/foam) performance

Topsky’s technical specifications for RXR-MC80BD commonly include:

• Flow: 80 L/s (water and foam)

• Range: Water ~80 m, Foam ~73.2 m

• Working pressure: 0–1.2 MPa

• Water inlet: 2 × DN80

These figures align with third-party descriptions that position RXR-MC80BD as a high-flow industrial suppression platform.

Remote operation range and communications

Topsky describes long-distance control enabled by advanced communications, with a remote control distance exceeding 1 kilometer, supported by dual-channel transmission for data and video.
Optional 4G/5G uplink is also referenced in Topsky’s feature list, supporting extended telemetry transmission.

Environmental sensing and gas detection

RXR-MC80BD configurations commonly integrate gas detection and environmental sensors to support safer response decisions. Topsky lists integrated gas detection devices and provides example detection channels such as CO₂, CO, H₂S, CH₄, humidity, and temperature.

Applications and Use Cases

Petrochemical and refinery firefighting

Dragon Conquest D4 RXR-MC80BD is specifically positioned for explosive and hazardous industrial environments, including petrochemical refining, oil storage depots, and chemical manufacturing or transport sites, where explosion-proof certification and remote suppression reduce risk to responders.

Fuel storage and hazardous material incident response

High-flow water/foam delivery and integrated gas monitoring are especially relevant for incidents involving:

• flammable vapor release risk

• toxic gas accumulation

• low oxygen (hypoxic) environments

• heavy smoke conditions

Tunnel, subway, and enclosed-structure fires

Third-party product summaries for RXR-MC80BD frequently mention applicability to tunnels and subway environments, where smoke density and navigation constraints can prevent safe human entry.

Reconnaissance, mapping, and command-center telemetry

The D4’s multi-channel video, environment sensors, and network telemetry support a reconnaissance-first workflow: assess conditions, locate hazards, then apply suppression with greater confidence. Topsky explicitly lists audio/video reconnaissance, toxic and hazardous gas reconnaissance, and environmental reconnaissance as core functions.

Equipment transport and hose logistics

A major operational advantage is logistics support: Topsky describes payload and towing support for transporting rescue materials (hoses, protective equipment, tools) and towing functions via a towing ring.

Advantages / Benefits

Reduced firefighter exposure in explosive atmospheres

Explosion-proof construction and long-distance remote control enable suppression and reconnaissance without requiring personnel to enter the hottest or most ignition-sensitive zones.

High-flow suppression for industrial-scale fires

The listed 80 L/s water/foam flow capacity and long-range monitor performance allow the robot to deliver meaningful extinguishing power at standoff distances.

Integrated gas and environmental intelligence

Built-in gas and environmental detection provides real-time hazard awareness for the incident commander, improving decisions on ventilation, approach routes, and responder entry timing.

Mobility and traction for damaged or wet terrain

Tracked mobility and obstacle/wading specs support movement through flooded zones, foam-covered floors, scattered debris, and industrial yard terrain.

FAQ Section

What is Topsky Dragon Conquest D4 RXR-MC80BD?

Topsky Dragon Conquest D4 RXR-MC80BD is an explosion-proof, remote-controlled firefighting and reconnaissance robot designed to operate in hazardous environments such as refineries, fuel storage sites, and chemical facilities.

How does Dragon Conquest D4 RXR-MC80BD work?

The robot uses a tracked chassis for mobility and a remotely operated water/foam monitor for suppression. Cameras, audio, and integrated gas/environment sensors send real-time information back to the operator, enabling safe remote decision-making.

Why is Dragon Conquest D4 important?

It helps reduce risk to firefighters by allowing fire extinguishing and reconnaissance in environments with explosion hazards, toxic gases, heavy smoke, and high heat—conditions where human entry can be life-threatening.

What are the benefits of Dragon Conquest D4 RXR-MC80BD?

Key benefits include explosion-proof protection, IP-rated sealing, high-flow 80 L/s water/foam suppression, long-range operation, and integrated gas/environment detection for safer incident response.

Summary

Topsky Dragon Conquest D4 RXR-MC80BD is a specialized explosion-proof firefighting and scouting robot designed for high-risk industrial incidents in petrochemical, chemical, and fuel-storage environments. Combining a rugged tracked chassis, long-distance teleoperation, high-flow water/foam suppression, and integrated audio/video + gas/environment sensing, the D4 configuration supports safer emergency response by reducing the need for personnel to enter hazardous zones. With published specifications emphasizing speed, traction, obstacle/wading capability, and industrial telemetry, Dragon Conquest D4 RXR-MC80BD represents a modern approach to remote fire suppression and reconnaissance in dangerous, complex environments.
