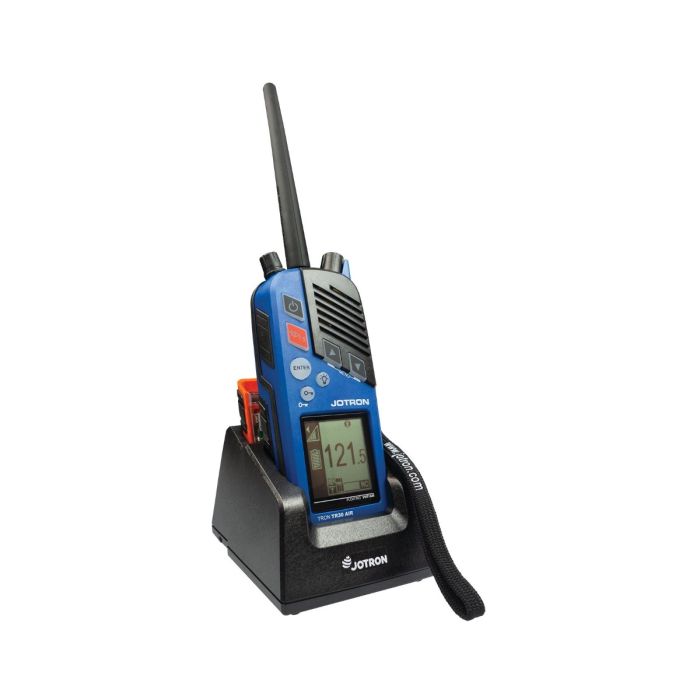

Jotron Tron TR30 AIR (2200148)

Jotron Tron TR30 AIR (2200148)

Jotron markets the Tron TR30 AIR as the only approved floating emergency VHF AM radio complying with SOLAS 1974 Regulation IV/7 and IMO performance guidance MSC.80(70), and as a mandatory safety emergency radio for SOLAS passenger vessels, MODUs (Mobile Offshore Drilling Units), and Polar Code-compliant vessels.

Unlike standard marine VHF radios (which typically use FM modulation and marine VHF channels), the TR30 AIR is optimized for VHF AM and is intended to be used on internationally recognized aeronautical emergency-related channels (notably 121.5 MHz and 123.1 MHz).

Design and Features

Purpose-built for aeronautical SAR voice communications

The Tron TR30 AIR is designed to improve the clarity and reliability of voice communications with aircraft during a maritime emergency. Jotron highlights an innovative noise-cancelling microphone and high-output loudspeaker, intended to filter background noise and support intelligible communication “in extreme environments,” including noisy aircraft operations.

Floating, waterproof construction (IP67)

A defining safety feature of the TR30 AIR is buoyancy and environmental sealing. Jotron states the radio is waterproof and floating with either battery and carries an IP67 rating. This combination is intended to ensure the radio remains usable in spray, immersion, and survival-craft conditions.

Emergency kit contents designed for regulated carriage

Jotron specifies that the TR30 AIR is delivered as a complete kit, typically including:

• Sealed emergency battery

• Test battery

• Hand strap

• Holder for the radio and battery

This packaging reflects its role as regulated safety equipment, where the radio must be ready for immediate use and easy to stow in an accessible location.

Accessory support for operational flexibility

Jotron notes that the radio can be used with optional waterproof speaker-microphone accessories for hands-free use, particularly during noisy aircraft operations. This is relevant when the user must maintain grip/position in a liferaft or on deck while communicating with a helicopter or fixed-wing aircraft.

Technology and Specifications

RF and receiver characteristics (VHF AM “air band”)

The Tron TR30 AIR is a VHF AM radio. Jotron’s manual lists two receiver channels:

• 121.5 MHz

• 123.1 MHz

• AM modulation

• 25 kHz channel spacing

These frequencies are widely used within aeronautical emergency and coordination contexts, and the TR30 AIR’s channel design reflects its role in contacting aircraft engaged in SAR.

Environmental and physical specifications

From the user manual, key physical/environmental specs include:

• Operating temperature: −20°C to +55°C

• Dimensions (W × H × D): 61 × 157 × 40 mm (depth 47 mm with belt clip)

• Weight: approximately 300 g (including battery)

• Full buoyancy: Yes

Battery and logistics considerations

The TR30 AIR system uses sealed battery modules. Jotron publishes product safety information indicating that the emergency battery module contains primary lithium battery cells and emphasizes safe handling and transport compliance documentation (e.g., UN 38.3-related materials).

Because these are safety-critical batteries, they are generally handled through approved service processes and dealer supply chains, rather than informal user substitution.

Certifications and approvals

Jotron lists a broad certification set for the TR30 AIR, including MED-B, MER, FCC, CE, and other country/type approvals available via the product page download set. In practice, this is important for SOLAS and class/flag compliance workflows and for vessel audits.

Applications and Use Cases

SOLAS passenger vessels

Jotron explicitly lists SOLAS passenger vessels as a required segment for TR30 AIR carriage, reflecting the need for direct voice coordination with aeronautical SAR assets in passenger-ship incident scenarios.

Mobile Offshore Drilling Units (MODUs)

MODUs operate far from shore and often rely heavily on helicopter logistics. A dedicated emergency VHF AM handheld supports direct communication with aircraft during an emergency evacuation or rescue response. Jotron lists MODUs as a required application for the TR30 AIR.

Polar Code-compliant vessels

In polar regions, SAR response can be challenging due to distance, weather, and limited infrastructure. Jotron lists Polar Coded vessels as a required segment, aligning with the need for robust, immersion-resistant emergency communications equipment.

Survival craft communications and post-abandonment coordination

The TR30 AIR is designed to remain functional in survival craft conditions—floating, waterproof, and glove-friendly—so survivors can communicate with aircraft after abandoning ship. The kit’s test battery and clear user interface support readiness checks without compromising the sealed emergency battery.

Advantages / Benefits

Direct compatibility with aeronautical SAR voice channels

A core benefit is the radio’s focus on VHF AM emergency/coordination channels (121.5/123.1 MHz). This addresses a real operational gap when a distress situation involves helicopter or fixed-wing assets that do not work on marine VHF FM channels.

Robust survivability features for real-world emergencies

The combination of IP67 sealing and full buoyancy is designed to keep the radio available after immersion, spray, or rough handling—conditions that commonly occur during abandon-ship and recovery operations.

Strong human-factors design for high-noise environments

Jotron emphasizes noise cancellation and high audio output, supporting the practical reality that helicopter downwash, wind, engines, and sea state can severely degrade voice communications during rescue operations.

Compliance-oriented procurement and documentation

The TR30 AIR’s approval/certification package and defined kit contents support regulated procurement, vessel surveys, and lifecycle management programs common in SOLAS fleets.

FAQ Section

What is Jotron Tron TR30 AIR (2200148)?

It is a handheld Emergency VHF AM (air band) radio for maritime use, designed to communicate with aeronautical SAR services, and commonly mapped in catalogs as 2200148 (Themys) / 101700 (Jotron).

How does Jotron Tron TR30 AIR work?

It provides voice communications on VHF AM channels used for aeronautical emergency/coordination purposes—specifically listed as 121.5 MHz and 123.1 MHz—and is engineered to float and remain waterproof in survival environments.

Why is Jotron Tron TR30 AIR important?

It supports direct communication with aircraft during a maritime emergency, addressing a key operational need when rescue helicopters or aircraft are coordinating recovery and need a compatible air band AM handheld on scene.

What are the benefits of Jotron Tron TR30 AIR?

Key benefits include IP67 waterproofing, full buoyancy, noise-cancelling audio design, and compliance positioning for SOLAS passenger vessels, MODUs, and Polar Code vessels—plus a complete kit with emergency and test batteries.

Is the Tron TR30 AIR compliant with SOLAS requirements?

Jotron states the radio complies with SOLAS 74 Reg. IV/7 and MSC.80(70) and is MED-B certified within its approval set.

Summary

The Jotron Tron TR30 AIR (2200148 / 101700) is a compliance-oriented, survival-ready Emergency VHF AM handheld radio built to support direct communication with aeronautical SAR services. By combining IP67 waterproofing, full buoyancy, a focused air band channel set (121.5/123.1 MHz), and a complete emergency kit with sealed and test batteries, it is positioned as a specialized safety radio for SOLAS passenger vessels, MODUs, and Polar Code vessels where reliable aircraft coordination can materially improve rescue outcomes.
