Jotron Tron TR30 GMDSS And Maritime VHF Radio (2200124)

Jotron Tron TR30 GMDSS And Maritime VHF Radio (2200124)

In distribution catalogs, the product is often referenced under vendor kit part numbers (for example, Jotron part number 87950) and may also appear under reseller catalog codes such as 2200124.

Design and Features

Dual-mode concept: emergency-ready and everyday use

A central design objective of the Tron TR30 is to reduce friction during emergencies without sacrificing routine usability. Jotron states that the TR30 switches automatically between:

• Standard maritime simplex/duplex channels (regular onboard use), and

• A restricted emergency simplex channel set (21 channels) intended for survival craft communications,

based on whether the rechargeable battery or sealed (primary) emergency battery is connected.

This battery-dependent behavior is intended to minimize the likelihood of incorrect configuration in high-stress situations while still allowing the same device platform to be used for normal crew communications.

Floating, high-visibility, survival-craft-oriented construction

Jotron positions the Tron TR30 as a floating handheld radio. The user manual describes it as waterproof down to 1 meter and able to float in water with the battery installed, and notes a self-draining loudspeaker design.

The product’s high-visibility safety-orange housing and rugged ergonomic design are targeted at lifeboat/liferaft conditions, where gloves, spray, and low light are common.

Human factors: fast operation under stress

Jotron emphasizes usability details such as a high-contrast display with backlighting and user-friendly controls, and describes a preset emergency mode when the primary battery is installed—limiting access to emergency-relevant functions to reduce time spent adjusting settings.

Audio performance and waterproof accessories

The Tron TR30 is marketed with noise-cancelling microphone behavior and “exceptional sound quality,” aiming for intelligibility in high wind and engine-noise environments.

Jotron also highlights compatibility with IP67-rated (waterproof) accessories, including an IP67 speaker microphone and headset solutions with PTT modules, supporting hands-free or deck-operations workflows.

Technology and Specifications

Note: Exact channel lists and regulatory region configurations can vary by firmware and country approvals. The figures below reflect publicly available manufacturer documentation.

Frequency and channel characteristics

Jotron’s published brochure lists:

• Frequency range: TX 154 MHz / RX 161.875 MHz

• Channel spacing: 25 kHz

The brochure also notes support for “4-digit display channel view,” aligning with modern maritime VHF channel presentation conventions.

Battery system (primary emergency vs rechargeable)

The TR30’s two operating profiles are enabled by two different battery types:

• Emergency battery (primary / non-rechargeable): Li/FeS₂, 6 V, 2900 mAh

• Rechargeable battery: Li-polymer, 7.4 V nominal, 1550 mAh

The emergency battery is treated as a sealed safety component, and Jotron publishes separate accessory listings (and dangerous goods documentation) for shipping and replacement.

Typical endurance (manufacturer-stated examples)

The brochure provides typical operating-time examples under specified duty cycles:

• Emergency battery: 12 hours (10-10-80 duty cycle)

• Rechargeable battery: ~12 hours typical (5-5-90 duty cycle at medium power)

Actual runtime varies with transmit power, scan usage, temperature, and battery age.

Environmental and operating range

Jotron lists an operating temperature range of −20°C to +55°C, supporting cold-weather lifeboat operations as well as warm, humid environments.

Charger and installation considerations

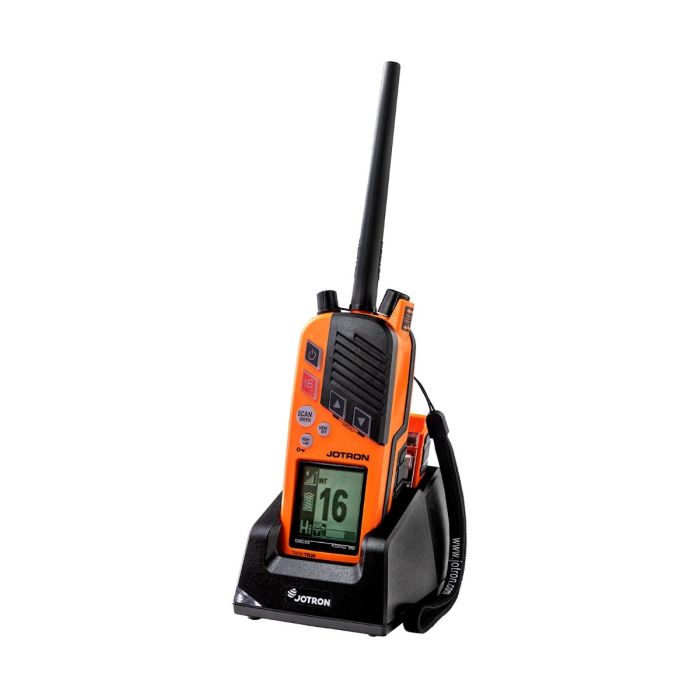

The TR30 kit includes a two-position charger intended for simple installation (wall or table mounting), allowing users to view information on the display while charging.

Compliance and approvals (document set availability)

Jotron’s official product page provides downloadable documentation and certificates (including regional approvals and marine equipment certification sets such as MED variants, plus declarations and dangerous goods documents), indicating that compliance evidence is packaged for professional maritime procurement and audits.

Applications and Use Cases

GMDSS survival craft handheld VHF

The Tron TR30 is designed for lifeboats and liferafts, where a floating, waterproof handheld VHF is a core safety tool for distress coordination and survival craft communications. The battery-driven emergency preset is particularly relevant to drills and real emergencies where users may be under time pressure.

Onboard crew communications and ship operations

With the rechargeable battery installed, the TR30 is positioned for “general onboard communications,” including access to full maritime duplex channels. This supports routine operational coordination on deck, during cargo operations, in port, and during safety exercises—while preserving the ability to revert to emergency-ready configuration when required.

Fleet standardization and spares planning

Because the TR30 is sold as a defined kit (radio, primary battery, rechargeable battery, charger, and accessories), it is often used in fleet contexts where standardization of handhelds simplifies training, spares stocking, and inspection routines.

Advantages / Benefits

• Two-in-one design reduces device count: One handheld platform can cover emergency-ready and routine VHF roles via battery-based configuration.

• Preset emergency mode reduces setup time: The primary battery triggers an emergency-focused profile intended to minimize critical adjustments.

• Floatation and waterproof behavior: Designed to float and withstand water exposure in survival craft scenarios (when correctly assembled).

• Accessory flexibility: IP67-rated speaker microphones and headset/PTT options support different working styles on deck or in noisy environments.

• Professional documentation set: Certificates, declarations, and transport documents are distributed via the manufacturer’s product page to support regulated procurement and shipping.

FAQ Section

What is the Jotron Tron TR30 GMDSS And Maritime VHF Radio (2200124)?

It is a floating handheld GMDSS and maritime VHF radio sold as a kit (Jotron kit 87950) and sometimes referenced by reseller catalog code 2200124, designed to support both survival craft and routine onboard VHF communications.

How does the Tron TR30 work?

The radio automatically switches operating profile based on the installed battery: a primary emergency battery triggers a preset emergency mode with restricted emergency channel access, while the rechargeable battery enables broader maritime VHF operation including duplex channels.

Why is the Tron TR30 important?

Handheld VHF is a critical safety layer for survival craft and onboard operations. The Tron TR30 is important because it combines emergency readiness (preset mode) with everyday usability, while being designed to float and tolerate water exposure when correctly assembled.

What are the benefits of the Tron TR30?

Key benefits include the two-in-one battery-driven design, preset emergency mode, floatation, manufacturer-stated endurance targets under defined duty cycles, and support for IP67-rated audio accessories.

What comes in the Tron TR30 kit?

Jotron’s kit contents typically include the Tron TR30 radio, emergency battery, rechargeable battery, wrist strap, power supply, and charger (and documentation depending on supplier).

Summary

The Jotron Tron TR30 (2200124 / Jotron kit 87950) is a professional handheld maritime VHF designed to serve both GMDSS survival craft and routine onboard communications through a battery-driven “two-in-one” operating concept. Its floating, waterproof-oriented construction, preset emergency behavior, and ecosystem of waterproof accessories make it a widely adopted option for operators seeking a single handheld platform that supports training familiarity, operational convenience, and emergency readiness.
