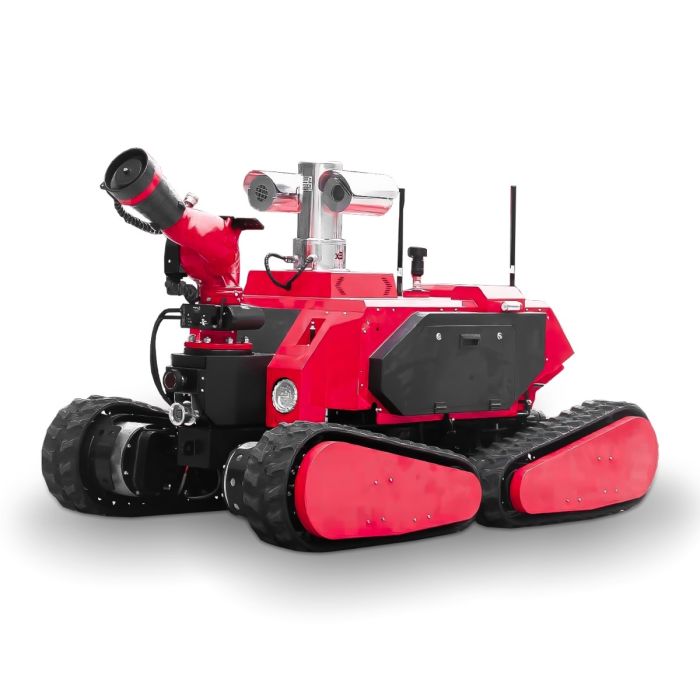

Guo Xing Electric-driven Explosion Proof 4WD Firefighting Robot (RXR-MC100BGD)

Guo Xing Electric-driven Explosion Proof 4WD Firefighting Robot (RXR-MC100BGD)

The RXR-MC100BGD belongs to a class of industrial firefighting robots developed for hazardous facilities such as chemical plants, oil and gas installations, tunnels, underground spaces, and other high-risk industrial sites. Guoxing’s official application language specifically highlights chemical leak sites, oil and chemical plants, nuclear facilities, and tunnels or underground facilities as target scenarios.

At a high level, the robot combines remote firefighting, video-based situational awareness, four-wheel-drive mobility, and explosion-proof protection. Public product pages and listings also emphasize a 1 km control distance, 360° PTZ monitoring, and IP67 waterproofing, positioning the machine as a rugged remote-response system rather than a standard service robot.

The RXR-MC100BGD is especially relevant in the context of industrial fire response because it addresses a core challenge of hazardous firefighting: how to apply fire suppression and gather scene intelligence without exposing human crews to blast risk, toxic gases, structural instability, or extreme heat. Guoxing’s official description repeatedly frames the robot’s purpose in exactly those terms.

Design and Features

Explosion-Proof 4WD Architecture

One of the defining features of the RXR-MC100BGD is its explosion-proof design. Guoxing states that the model is built to the GB3836-2010 standard, and a later Guoxing explainer on explosion-proof standards says the company’s RXR-MC100BGD is among the firefighting robots that have obtained both China explosion-proof certification and ATEX certification for hazardous environments.

The platform is also described as a 4WD firefighting robot. Guoxing’s official marketing materials emphasize the four-wheel-drive system as a major reason for the robot’s maneuverability in difficult terrain, while product imagery and listings show a heavy-duty chassis designed for industrial ground conditions rather than smooth indoor floors.

Remote Firefighting and Reconnaissance

The robot is designed to support both fire suppression and remote scene assessment. Guoxing describes it as capable of reconnaissance and firefighting in hazardous zones, and its product page highlights 360° PTZ monitoring as a core feature. That combination is important because industrial firefighting often requires operators to understand heat, flame spread, obstructions, and access conditions before committing water or foam streams.

A seller listing also describes the RXR-MC100BGD as using water or foam and gives a headline extinguishing capacity of 100 L/s flow with range up to 90 m. Because that figure comes from a marketplace listing rather than the clearest official spec table, it is best treated as seller-published configuration data rather than a universally confirmed manufacturer specification.

Waterproof and Hazard-Ready Construction

Guoxing’s official product page highlights IP67 waterproofing, which is significant in a firefighting platform because it suggests suitability for wet conditions, spray exposure, and harsh outdoor or industrial use. The same page also emphasizes the robot’s role in environments involving smoke, toxic gases, and oxygen-deficient conditions.

Technology and Specifications

Confirmed Public Specifications

Publicly available sources provide a mix of official and reseller-published specifications for the RXR-MC100BGD. The most consistently confirmed details are:

• Model: RXR-MC100BGD

• Brand: Guo Xing / Guoxing

• Explosion-proof standard: GB3836-2010

• Control distance: 1000 m in open space

• Monitoring: 360° PTZ system

• Waterproof rating: IP67

• Origin: China

• Warranty: 12 months on reseller listings

A reseller/specification snippet also lists external dimensions up to 2100 × 1250 × 1300 mm and product weight up to 1200 kg, which is consistent with the platform’s industrial firefighting role. That same snippet confirms 1000 m remote control distance.

Cameras, PTZ, and Communications

Guoxing’s official product page includes partial technical details for the robot’s PTZ system, describing an explosion-proof PTZ camera with horizontal 0°–360° continuous rotation, vertical -90° to +90°, and RS485 communication using Pelco-D protocol. Those details indicate a surveillance and teleoperation system designed for industrial compatibility rather than consumer video streaming.

Mobility and Terrain Handling

The product is marketed as a four-wheel-drive explosion-proof robot with strong off-road and crossing ability. Official and seller descriptions emphasize maneuverability over difficult terrain, while one seller listing says the robot can climb 40° slopes. That climbing number is useful, but since it comes from a marketplace listing, it should be understood as seller-published performance data unless verified against a formal factory datasheet.

Hazardous-Environment Ratings

One marketplace listing identifies the explosion-proof marking as Ex d ib IIB T4 Gb, again suggesting the robot is intended for combustible-gas industrial zones. Because this specific code was surfaced from a seller listing rather than the clearest official product table, it should be treated as published marketplace configuration information.

Applications and Use Cases

The RXR-MC100BGD is clearly aimed at industrial and hazardous-environment firefighting. Guoxing’s own application notes identify four especially important scenarios: chemical or hazardous-material leak sites, oil and chemical plants, nuclear facilities, and tunnels or underground facilities.

These use cases make sense because the robot is optimized for conditions where firefighters face layered risks: heat, explosive atmospheres, toxic gas exposure, limited visibility, and confined-space access. In petrochemical environments, for example, remote suppression can be valuable even before crews approach the seat of a fire. Guoxing’s marketing for Sinopec-linked applications explicitly positions this class of explosion-proof firefighting robot as a preferred solution in high-risk oil and gas settings.

The platform is also relevant for reconnaissance before human entry. Even where the robot is not the sole suppression tool, its camera, PTZ system, and remote-control range can help incident commanders assess scene conditions and plan safer intervention. This is an inference from the official monitoring and application descriptions.

Advantages / Benefits

The most important benefit of the RXR-MC100BGD is firefighter risk reduction. Guoxing’s official description says the robot is intended to replace fire and rescue personnel in dangerous scenes involving inflammable materials, toxic gases, smoke, and oxygen-deficient conditions.

A second advantage is hazardous-environment compliance. Between the official GB3836-2010 reference and Guoxing’s later statement that the RXR-MC100BGD obtained both Chinese explosion-proof and ATEX certifications, the product is positioned for environments where ordinary firefighting machinery would not be appropriate.

A third advantage is combined suppression and observation. The robot is not only a mobile platform; it also provides PTZ-based visual monitoring and long-range remote control, which helps responders assess conditions while keeping standoff distance.

FAQ Section

What is the Guo Xing RXR-MC100BGD firefighting robot?

The Guo Xing RXR-MC100BGD is an electric-driven, explosion-proof, four-wheel-drive firefighting robot built for hazardous environments such as chemical plants, oil facilities, tunnels, and other dangerous industrial fire scenes.

How does the Guo Xing RXR-MC100BGD work?

It works as a remotely operated firefighting and reconnaissance platform, combining a rugged 4WD chassis, explosion-proof design, PTZ camera monitoring, and a long-range remote-control system so operators can assess and fight fires from a safer distance.

Why is the Guo Xing RXR-MC100BGD important?

It is important because it reduces firefighter exposure in flammable, toxic, smoke-filled, hypoxic, and potentially explosive environments where direct human entry may be too dangerous.

What are the benefits of the Guo Xing RXR-MC100BGD?

Its main benefits are explosion-proof operation, remote firefighting capability, PTZ-based visual awareness, long control distance, and suitability for hazardous industrial environments where conventional firefighting response is riskier.

Is the RXR-MC100BGD ATEX certified?

Guoxing states in a later standards article that the RXR-MC100BGD is one of its firefighting robots that has obtained both China explosion-proof certification and ATEX certification.

Summary

The Guo Xing Electric-driven Explosion Proof 4WD Firefighting Robot (RXR-MC100BGD) is a purpose-built industrial fire-response robot for some of the most dangerous operational settings in modern firefighting. Its combination of explosion-proof engineering, 4WD mobility, 1 km remote control, PTZ monitoring, IP67 protection, and hazardous-environment targeting makes it especially relevant for petrochemical, chemical, tunnel, and confined-space incidents. While some detailed performance figures in public circulation come from seller listings rather than full official datasheets, the overall role of the RXR-MC100BGD is clear: it is a remote firefighting robot designed to keep people farther from the most dangerous parts of the fireground.
