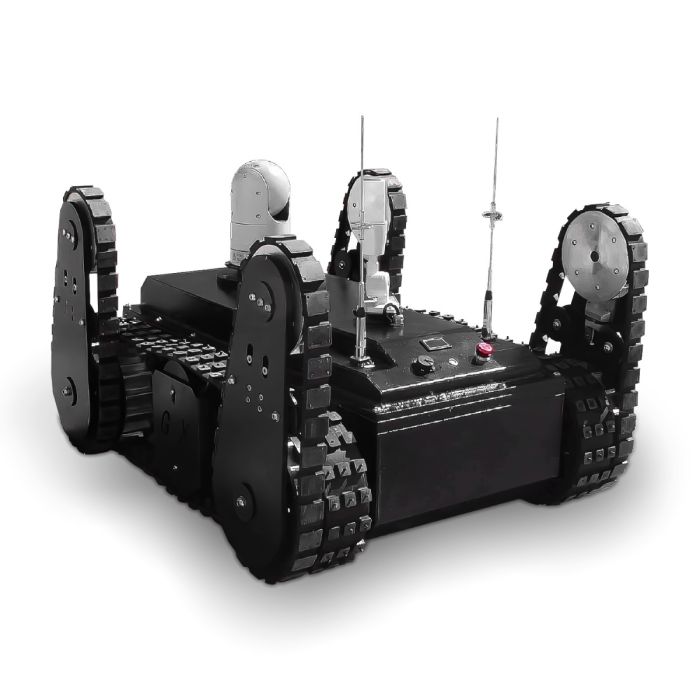

Guo Xing Tracked Robot Chassis Platform (PS1000)
In stock
- BRAND:
- GUO XING
- PART #:
- PS1000
- Warranty:
- 12 MONTHS
- AVAILABILITY:
- CURRENTLY SHIPS IN 6 TO 8 WEEKS
- SKU:
- Guo-Xing-PS1000
The double swing arm robot chassis should have the ability to efficiently cross obstacles and ditches for non-structural road conditions, and can swing part of the arm separately to complete climbing and crossing. It is widely used in military EOD rescue and other fields. Expand functionality: Development of special-purpose robots for firefighting inspection, military rescue and bomb disposal, specialized filming, and special transportation. Configuration: External dimensions Open: 1580770660, Folding: 970770660, Drive speed 0~1.2m/s, IP level IP67, Total weight 210kg, Climbability 35°, Vehicle material Aluminium alloy, Load weight 100kg, Shock absorption system Independent on left and right 6 shock absorbers, Track material Rubber embedded with metal and Kevlar fibers, Maximum obstacle crossing 300mm, Rated torque 82NM, Rated power 1000w2, Motor 48V DC brushless motor. (PS1000)
Specifications
| PART # | PS1000 |
|---|---|
| BRAND | GUO XING |
What's included
Guo Xing Tracked Robot Chassis Platform (PS1000)
