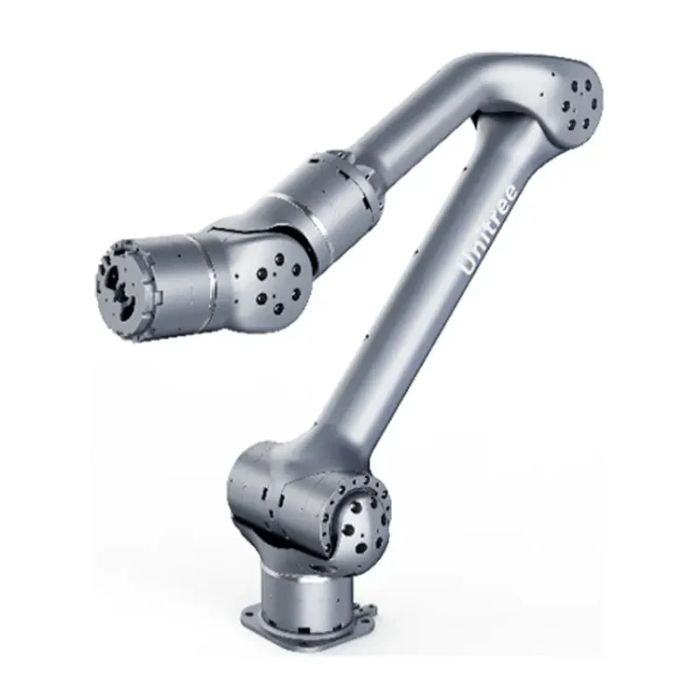

Unitree Z1 Air Robot Arm (Z1-AIR)

Unitree Z1 Air Robot Arm (Z1-AIR)

In the broader robotics ecosystem, the Z1 Air is positioned as an “enabling” component: rather than replacing an industrial cobot in high-throughput factories, it targets education, prototyping, perception-driven grasping, and mobile robot manipulation, where low mass, manageable power requirements, and accessible networking/control interfaces are often prioritized.

Design and Features

Mechanical architecture

The Z1 Air is a 6-degree-of-freedom (6-DoF) arm intended to provide a human-like reach and joint articulation for pick-and-place, inspection, and interaction tasks. Publicly listed specifications describe a reach of about 740 mm and an arm mass around 4.3 kg, making it relatively portable compared with many industrial arms.

Payload and manipulation intent

Z1 Air is typically specified for payloads up to 2 kg, supporting lightweight end-effectors and common research objects (small packages, tools, test samples, and household-sized items). This payload class aligns with its use in education and mobile robots, where the full system’s stability and energy budget can be constrained.

Accuracy and repeatability

A published repeatability figure of 0.1 mm places the Z1 Air in a precision range suitable for laboratory handling, demonstration tasks, and structured workcell prototypes.

Modular integration with mobile platforms

A recurring theme in Z1 series positioning is “attachability”—the arm is presented as being able to mount on Unitree quadruped platforms (Aliengo, B1) and other robots, enabling perception-based grasping and mobile manipulation scenarios such as object retrieval or tool delivery.

Technology and Specifications

Control and communications

The Z1 Air is commonly described with an Ethernet interface and support for Ubuntu as a user operating system environment, reflecting standard robotics development workflows (networked control PCs, ROS-based stacks, and perception pipelines).

Unitree’s developer documentation for the Z1 platform also emphasizes network-based control and robotics-oriented software integration (often used for research and prototyping), reinforcing the arm’s role as a developer-facing system rather than a closed appliance.

Power and electrical characteristics

A published electrical profile for the Z1 Air lists:

• Power supply: 24 V, current > 20 A

• Maximum power: up to 500 W

These requirements are consistent with compact actuated arms that must deliver torque for dynamic motion while still remaining feasible to power from mobile robot power systems (with appropriate regulation and battery sizing).

Motion and joint limits

Z1 Air listings commonly describe:

• Max joint speed: 180°/s for all six joints

• Joint ranges (example set): ±150° (J1), 0–180° (J2), −165–0° (J3), ±80° (J4), ±85° (J5), ±160° (J6)

These limits support a wide working envelope and multi-angle approach trajectories—important for grasping where the robot may need to “come in” from different orientations.

Force-related control and sensing

Z1 Air is marketed with a control interface that includes position + force control. In addition, motor/drive details are often described with torque-related sensing feedback (e.g., torque/angle/velocity feedback), supporting compliance behaviors, contact detection, or basic force regulation during manipulation.

A related technical parameter commonly cited for the Z1 Air actuator/control stack is a 1 kHz control frequency, which is a typical range for responsive torque/impedance control loops in research manipulators.

Actuation and drivetrain design

Published Z1 Air motor/drive descriptions include:

• Harmonic reducer

• Industrial-grade cross-roller bearing

• Backlash: 6 arcmin

• Max torque (listed): 33 N·m

• Encoder resolution: 15-bit

• Force control accuracy (listed): 0.2 N·m

• Communication method: RS-485

These details reflect a design goal common to compact robotic arms: balancing stiffness and precision (harmonic drives, cross-roller bearings) with a control stack capable of smooth motion and basic force interaction.

Applications and Use Cases

Education and research laboratories

In universities and R&D groups, the Z1 Air is suited to:

• Manipulation coursework (kinematics, dynamics, control)

• Perception-driven grasping experiments using depth cameras

• Reinforcement learning (RL) and imitation learning tasks

• Human–robot interaction demonstrations

Its relatively small size and Ethernet/Ubuntu-oriented workflow can reduce integration friction for lab environments.

Mobile manipulation on quadrupeds

Mounted on a quadruped platform, a Z1-series arm can support:

• Object pickup and placement in unstructured environments

• Tool transport (light tools, sensors, or payload modules)

• Remote inspection tasks (positioning cameras or probes)

This “robot dog + arm” concept is increasingly used in research and pilot deployments where navigation and manipulation must be combined.

Light logistics and daily-task prototyping

Product positioning often highlights:

• e-commerce logistics (light parcels, sorting demos)

• “daily life” tasks (simple object movement, fetch-and-carry prototypes)

• General-purpose moving/handling scenarios

Advantages / Benefits

Compact form factor for development teams

At roughly 4.3 kg, Z1 Air can be easier to mount, transport, and test than heavier industrial arms, especially when paired with small mobile bases.

Research-friendly control profile

Features commonly associated with research use—Ethernet connectivity, Ubuntu compatibility, and position + force control—support rapid iteration for robotics software teams working on perception, control, and autonomy.

Precision appropriate for prototyping

Published 0.1 mm repeatability supports many manipulation prototypes, calibration tasks, and controlled lab demonstrations where consistent positioning matters.

FAQ Section

What is the Unitree Z1 Air (Z1-AIR)?

The Unitree Z1 Air is a 6-axis robotic arm in Unitree’s Z1 series, designed for compact manipulation tasks, research, and integration with mobile robots such as quadrupeds.

How does the Unitree Z1 Air work?

The Z1 Air uses electrically driven joints (with drivetrain components such as harmonic reducers) controlled through a robotics-oriented interface that supports Ethernet connectivity and position + force control, enabling precise motion and basic interaction behaviors.

Why is the Unitree Z1 Air important?

Compact robot arms like the Z1 Air help bridge the gap between navigation robots and practical manipulation. In research and pilot deployments, this enables mobile robots to not only move through spaces but also interact with objects—a key capability for real-world automation.

What are the benefits of the Unitree Z1 Air?

Commonly cited benefits include its compact size, 6-DoF reach (~740 mm), precision repeatability (0.1 mm), and development-friendly control interfaces (Ethernet/Ubuntu workflows and position/force control).

Summary

The Unitree Z1 Air (Z1-AIR) is a lightweight 6-axis robotic arm aimed at research, education, and mobile manipulation, combining a compact mechanical design with Ethernet-based control, Ubuntu-oriented workflows, and published precision metrics suitable for laboratory and prototype deployments.

Key Features:

• Advanced AI Capabilities: Integrated AI algorithms enable intelligent motion planning, object recognition, and adaptive control, allowing the Z1 to handle complex tasks with ease.
• Unmatched Precision: Experience smooth and highly accurate movements, ensuring consistent and reliable performance in even the most demanding applications.
• Modular and Versatile: The Z1's modular design allows for easy customization and integration with various tools and peripherals, adapting to your specific needs.
• User-Friendly Interface: Intuitive software and programming tools make the Z1 accessible to both experienced roboticists and those new to automation.
• Robust and Durable: Built with high-quality materials and rigorous engineering, the Z1 is designed for long-lasting performance in challenging environments.
• Wide Range of Applications: Ideal for tasks such as assembly, material handling, welding, painting, inspection, and more.

Benefits:

• Increased Efficiency: Automate repetitive and time-consuming tasks, freeing up human workers for more strategic initiatives.
• Improved Accuracy: Minimize errors and ensure consistent quality with the Z1's precise movements.
• Enhanced Safety: Reduce workplace hazards by automating dangerous or physically demanding tasks.
• Boosted Productivity: Maximize output and streamline operations with the Z1's high-speed and reliable performance.
