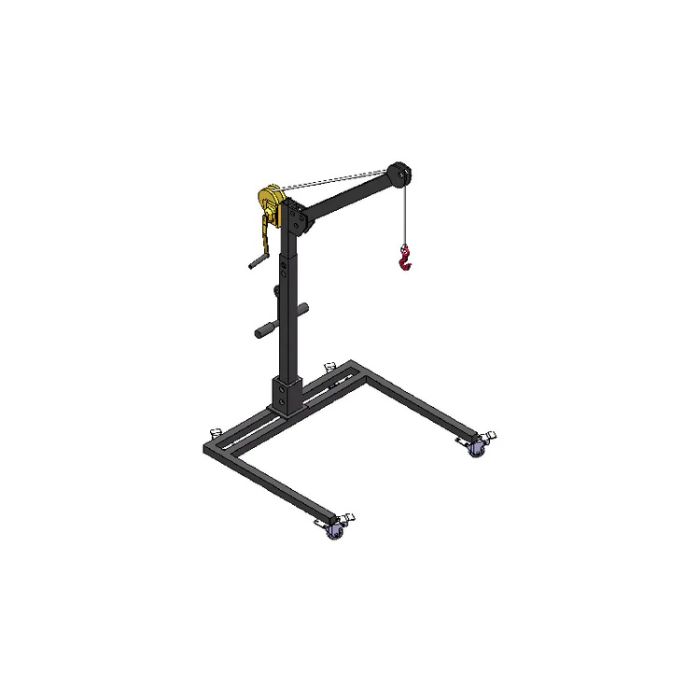

Unitree H1 Gantry

Unitree H1 Gantry

It is primarily used as a debugging, calibration, and safety support fixture, helping stabilize the robot during development, testing, and controlled demonstrations. In many commercial listings, the gantry is described as a “debugging protection bracket” or support system that provides a secure platform for positioning the humanoid while engineers tune software, validate motion behaviors, and reduce risk of accidental falls.

Because humanoid robots are tall, heavy, and capable of fast dynamic motion, external safety fixtures such as gantries are common in robotics labs. They allow teams to perform iterative gait tuning, balance experiments, and recovery testing with greater confidence, especially when autonomy stacks are under development. The Unitree H1 Gantry is typically presented as a dedicated accessory compatible with the H1 platform and is sometimes included as part of certain H1 purchase bundles.

Design and Features

Structural support for safety and stability

The H1 Gantry is designed to provide additional stability for the robot during activities where unexpected motion could occur, such as:

• early-stage locomotion parameter tuning

• balance and posture calibration

• stress testing of dynamic maneuvers

• integration of custom payloads or sensors

Retail descriptions emphasize the gantry’s role in enhancing safety and reducing the risk of damage to the robot during testing.

Debugging protection bracket concept

A recurring product description for this accessory is “debugging protection bracket,” implying that it is intended less as an operational field accessory and more as a lab/development tool. This fits a common humanoid robotics workflow: the first stages of bringing up a robot’s locomotion and autonomy often happen with physical safeguards in place before fully untethered operation.

Adjustable platform for positioning and manipulation

Listings describe the gantry as allowing easier positioning and manipulation of the robot during development tasks. In practice, this can mean enabling safer transitions between poses, controlled “hold” positions for calibration, and repeatable test setups for measurement.

Heavy-duty build for humanoid-scale loads

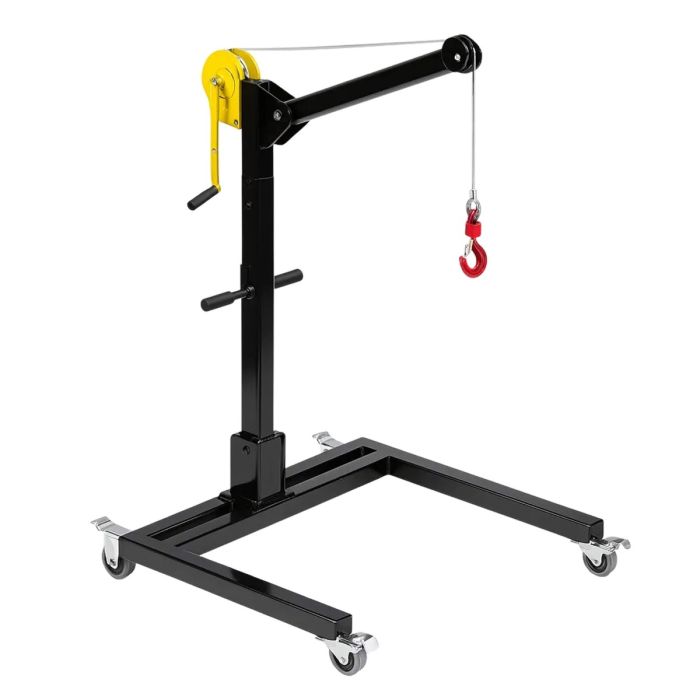

Several retailers characterize the system as a heavy-duty fixture intended to anchor the robot and reduce unwanted movement while engineers run diagnostics or software iterations. Some descriptions specifically highlight a “robust steel frame” concept and emphasize stability during tuning and stress tests.

Technology and Specifications

While exact implementation details can differ by listing and region, multiple public product pages provide a consistent baseline specification profile for the Unitree H1 Gantry Support.

Physical specifications (commonly listed)

A detailed retailer listing specifies the following physical characteristics:

• Dimensions: 108 × 44 × 33 cm

• Weight: 55 kg

• Included: 1× Unitree H1 Gantry Support

These numbers are consistent with a robust fixture intended to remain stable during humanoid motion development rather than a lightweight accessory for field transport.

Compatibility with Unitree H1 / H1-2 ecosystem

Unitree positions the H1-2 as a full-size universal humanoid robot platform. The gantry is listed as an accessory for the H1 family, supporting the broader development and testing workflow for a humanoid with integrated sensing such as 3D LiDAR and depth camera.

Gantry included in some kits

Some listings indicate that a gantry may be included with an H1 package (alongside the robot, remote control, and batteries).
This suggests the gantry is considered an important “first-day” tool for safe commissioning and initial testing.

Applications and Use Cases

Humanoid robot commissioning and first-power testing

When a humanoid robot is first deployed in a lab environment, teams often validate:

• joint direction and sign conventions

• sensor calibration

• safe motion envelopes

• basic balance responses

A gantry fixture helps reduce the risk of toppling during these early test cycles.

Locomotion tuning and gait development

Humanoid walking involves complex control loops and real-time balance adjustments. During development, engineers may intentionally push the system to its limits (for example, changing control gains or gait timing). A gantry-style support can help:

• prevent falls during experimental gaits

• protect hardware while testing aggressive maneuvers

• support repeated trials under similar conditions

Software debugging and autonomy integration

A stable, repeatable physical setup is valuable when integrating:

• SLAM and localization pipelines

• perception workloads (depth, LiDAR, tracking)

• motion planning and behavior execution

By limiting uncontrolled movement during debugging, the gantry can simplify verification and reduce the cost of mistakes.

Payload integration and accessory validation

Humanoid robots are frequently used as research platforms with added payloads, including:

• external sensors (additional cameras, LiDAR, thermal imaging)

• prototype end-effectors or grippers

• compute modules and power subsystems

During payload integration, the gantry provides a safer way to validate mechanical clearances and movement limits before going untethered.

Demonstration safety in structured spaces

Even in controlled demos, unexpected surfaces, lighting changes, or operator error can cause instability. A gantry can act as a precautionary support tool for:

• supervised walking demos

• repeated choreography / motion sequences

• training operators in safe handling procedures

Advantages / Benefits

Reduced risk of fall-related damage

Falls are one of the highest-cost incidents in humanoid robotics testing. A gantry fixture helps reduce the probability and severity of falls during early-stage development.

Faster iteration cycles in R&D

A stable environment allows engineers to test changes more confidently and repeatedly, speeding up:

• parameter tuning

• software regressions

• sensor alignment and calibration routines

Retail descriptions emphasize the gantry’s role in enabling safe testing and development.

Improved operator safety

Full-size humanoids can move quickly and unpredictably during tuning. Physical stability measures reduce risks to nearby technicians and observers, particularly when experimenting with new behaviors.

Better repeatability for measurement and evaluation

A consistent support environment can help with:

• standardized benchmarks

• repeated motion capture measurements

• controlled evaluation of balance and control improvements

FAQ Section

What is the Unitree H1 Gantry?

The Unitree H1 Gantry is a support accessory for the Unitree H1 humanoid robot, designed as a debugging and safety support fixture to stabilize the robot during testing and development.

How does the Unitree H1 Gantry work?

It provides a stable physical support structure that helps hold or guide the humanoid during calibration and trial movements, reducing the likelihood of falls and making debugging safer.

Why is the Unitree H1 Gantry important?

Humanoid robots are tall and dynamic, and early-stage testing can be unpredictable. The gantry improves safety, repeatability, and protection for both the robot and the operators during commissioning and R&D.

What are the benefits of the Unitree H1 Gantry?

Benefits include reduced fall risk, safer debugging, improved stability for tuning, and a more controlled environment for robotics development workflows.

Summary

The Unitree H1 Gantry is a specialized support and safety fixture for the Unitree H1 humanoid robot platform, commonly described as a debugging protection bracket that enables safer commissioning, calibration, and R&D testing. By providing physical stability during early development phases, it helps reduce fall risk, improves repeatability, and supports faster iteration in humanoid robotics projects—making it a practical tool for labs and industrial teams deploying humanoids in controlled environments.
