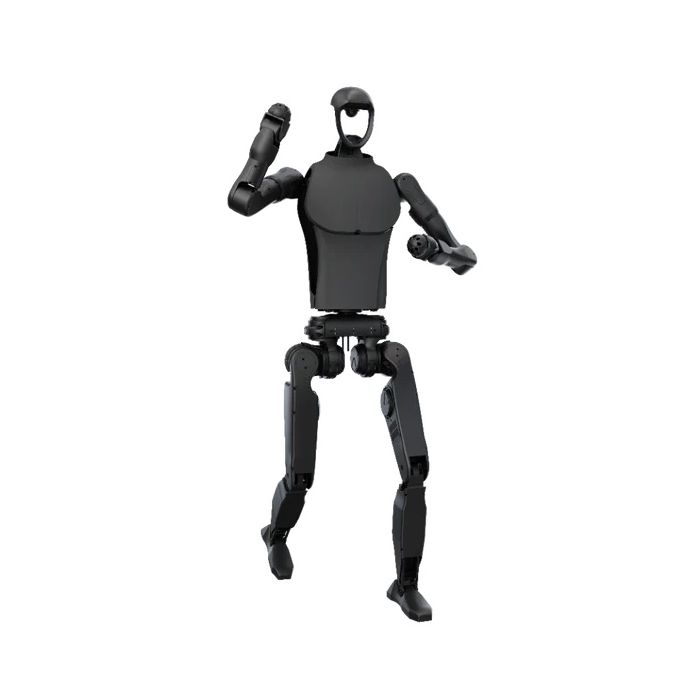

Unitree H1-2 Universal Humanoid Robot

Unitree H1-2 Universal Humanoid Robot

The H1-2 is characterized by its human-like height, high-torque leg joints, and an onboard perception stack combining 3D LiDAR and a depth camera to enable navigation, obstacle awareness, and mapping. Unitree lists the H1-2 at ~178 cm tall and ~70 kg, with 27 degrees of freedom (DoF), making it suitable for both academic laboratories and industrial innovation teams exploring humanoid autonomy.

In the broader humanoid robotics landscape, the H1-2 is commonly discussed as part of the growing trend toward commercially available, developer-focused humanoids that provide a configurable base for motion control research, AI policy learning, teleoperation, and pilot deployments in structured environments.

Design and Features

Full-size humanoid proportions

Unitree describes the H1-2 as a full-size universal humanoid robot, with a published height of about 178 cm and a total weight of about 70 kg.
This human-scale form factor supports experiments in environments originally built for people—doors, corridors, worktables, stairs (scenario-dependent), and typical indoor navigation constraints.

27 degrees of freedom (DoF)

The H1-2 is specified with 27 DoF, supporting multi-joint movement across the body for walking, turning, and whole-body balancing.
In humanoid engineering terms, higher DoF improves flexibility in posture control, contact planning, and compensation for disturbances (such as uneven ground or shifting payloads).

High-torque joint system

A major emphasis of the H1-2 platform is joint torque capacity, especially for the lower body. Unitree specifies:

• Maximum torque of arm joint: 120 N·m

• Maximum torque of leg joint: 360 N·m

These values indicate a strong actuation system for dynamic bipedal behaviors such as rapid stepping, recovery motions, and stable stance control during upper-body movement.

360° depth sensing (3D LiDAR + depth camera)

Unitree lists the H1-2 perception suite as 360° depth sensing using 3D LiDAR plus a depth camera.
This combination is often used in humanoid robotics to support:

• 3D mapping and localization (SLAM)

• obstacle detection and avoidance

• scene understanding for safe navigation

• perception redundancy when lighting conditions change

Technology and Specifications

Core specifications (published by Unitree)

Unitree’s official H1-2 highlights include:

• Model: Unitree H1-2 (full-size universal humanoid robot)

• Height: ~178 cm

• Weight: ~70 kg

• Degrees of freedom: 27

• Max arm joint torque: 120 N·m

• Max leg joint torque: 360 N·m

• Peak torque density: 189 N·m/kg

• Perception: 360° depth sensing via 3D LiDAR + depth camera

Perception and autonomy building blocks

While the H1-2 is commonly used as an R&D humanoid base, its sensor architecture supports modern autonomy workflows including:

• LiDAR-based navigation stacks

• depth-assisted obstacle tracking

• robot state estimation with joint feedback

• reinforcement learning or imitation learning pipelines

This makes the H1-2 relevant to teams building humanoid capabilities such as stable locomotion, mobile manipulation, and task execution in controlled settings.

Applications and Use Cases

Embodied AI research and humanoid learning

A primary use of the Unitree H1-2 is as a physical platform for embodied AI, where models learn to act through real-world feedback rather than purely simulated environments. Common research themes include:

• bipedal gait learning and balance recovery

• whole-body motion planning

• sim-to-real transfer for humanoid control

• sensor fusion for stable navigation

Because the H1-2 is human-scale, it is frequently evaluated for movement and behaviors aligned with human spaces.

Robotics education and advanced training labs

Universities, technical institutes, and corporate R&D labs use humanoid robots to teach:

• dynamics and control theory

• state estimation and sensor fusion

• ROS-based autonomy pipelines

• safety design for legged systems

The H1-2’s 27 DoF configuration supports multi-disciplinary coursework spanning mechanical design, embedded systems, and AI.

Human-scale inspection and mobility experiments

With 360° sensing, the H1-2 can serve as a development unit for:

• corridor navigation

• waypoint patrol behavior

• structured indoor inspection routes

• lab-scale “robot coworker” prototypes

These deployments are typically proof-of-concept or pilot programs, with real-world safety constraints requiring careful tuning and supervision.

Early-stage industrial R&D pilots

The H1-2 is sometimes considered for industrial contexts where humanoids may eventually assist with tasks such as transporting light items, opening doors, and moving through facilities designed for people. In most cases, organizations treat the H1-2 as a development platform, not a finished production worker, focusing on validation of mobility and system integration.

Advantages / Benefits

Human-scale mobility and environment compatibility

At roughly 178 cm tall, the H1-2 naturally fits spaces designed around human proportions (table height, hallway width, standard workspaces), enabling experiments without redesigning the environment.

High torque for stable biped dynamics

A key advantage of the H1-2 is its published joint torque capability—particularly 360 N·m in the legs—which supports stronger stance control and more dynamic stepping behaviors than low-torque platforms.

Integrated 360° sensing for navigation and mapping

The 3D LiDAR + depth camera stack is an established combination for reliable perception in robotics, enabling navigation research and obstacle detection with strong spatial coverage.

Developer-friendly research platform positioning

Although specific development environments vary by configuration and region, the H1-2 is marketed as a platform intended for advanced R&D, rather than a closed consumer appliance—supporting experimentation, customization, and iterative improvement cycles.

FAQ Section

What is the Unitree H1-2 Universal Humanoid Robot?

The Unitree H1-2 is a full-size humanoid robot designed for research and development, featuring ~178 cm height, ~70 kg weight, 27 DoF, and 360° depth sensing using 3D LiDAR + depth camera.

How does the Unitree H1-2 work?

The H1-2 uses high-torque electric joints (including up to 360 N·m leg torque) to produce bipedal motion, while its LiDAR and depth camera provide 3D environmental data for navigation, mapping, and obstacle awareness.

Why is the Unitree H1-2 important?

The H1-2 is important because it offers a human-scale humanoid platform that can accelerate work in locomotion control, embodied AI, and mobile manipulation, bringing advanced humanoid experimentation closer to real operational settings.

What are the benefits of the Unitree H1-2?

Key benefits include 27 DoF flexibility, high leg joint torque, and 360° depth sensing for navigation and mapping—making it a strong platform for humanoid research, pilot projects, and advanced robotics training.

Summary

The Unitree H1-2 Universal Humanoid Robot is a full-size, 27-DoF humanoid platform built for advanced R&D in bipedal locomotion, embodied AI, and human-environment robotics. With published specs including ~178 cm height, ~70 kg weight, 360 N·m leg joint torque, and 360° sensing via 3D LiDAR plus depth camera, the H1-2 is positioned as a capable foundation for organizations developing next-generation humanoid autonomy and mobility systems.
