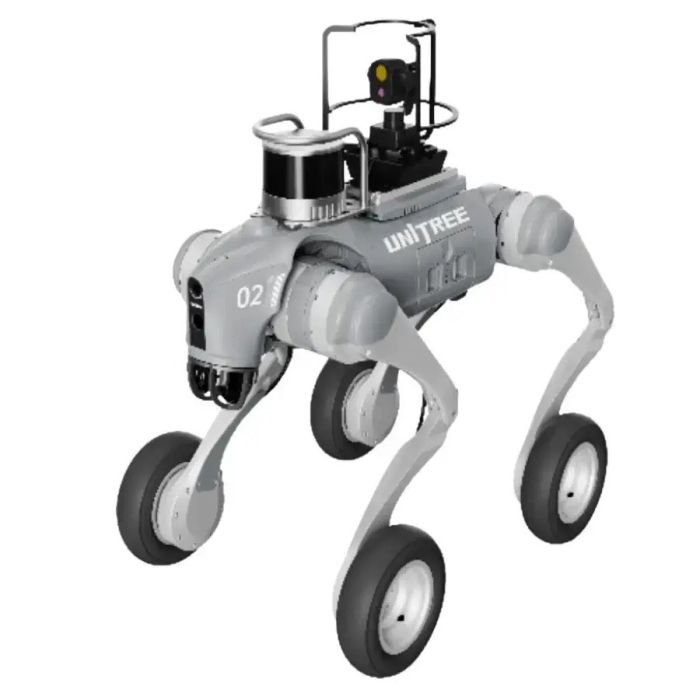

Unitree Go2-W Inspection Package (Go2-W-U5)

Go2-W Inspection Package Go2 Series Products (Go2-W-U5) (Go2-W-U5)

Unitree presents Go2-W as “Driving All Terrain,” highlighting in-wheel motors and 7-inch pneumatic tires for fast, stable mobility in real deployments.

The Go2-W-U5 “Inspection” package extends the Go2-W enterprise concept by adding a stabilized dual-light PTZ gimbal head and a thermal imaging sensor, making it well suited for tasks such as industrial inspection, facility patrol, night monitoring, and predictive maintenance. U5 is commonly described as an inspection version “with all the parameters of Go2-W U4,” then enhanced with PTZ + thermal capability for demanding inspection workflows.

Design and Features

Wheeled–legged hybrid mobility

The core differentiator of the Go2-W platform is its wheel-on-foot architecture. Go2-W can roll efficiently on smooth floors, paved roads, and gentle slopes—reducing energy consumption and improving stability—while still using its legs to step over obstacles and adapt posture on uneven terrain. Unitree explicitly notes the system is equipped with in-wheel motors and 7-inch pneumatic tires, positioning the design for all-terrain movement and improved stair handling.

Inspection-grade stabilized PTZ “twin-light” head

The U5 Inspection Package includes a twin-light (dual-light) stabilized gimbal head, designed to keep imaging stable while the robot moves. A commonly published U5 kit specification lists high-precision three-axis stabilization with an angular jitter of ±0.01°, providing smoother tracking and clearer inspection footage compared with a fixed, non-stabilized camera mount.

The gimbal’s controllable motion ranges are often specified as:

• Pitch rotation: −90° to +25°

• Horizontal rotation (yaw): −270° to +270°

• Roll rotation: −45° to +45°

These ranges support both wide scanning sweeps and precision aiming—useful for reading labels, checking valve positions, inspecting equipment edges, or surveying corridors while in motion.

Thermal imaging for day/night inspection

A defining capability of Go2-W-U5 is its integrated thermal camera, which complements visible imaging by detecting heat signatures and temperature anomalies. Commonly published U5 specifications list:

• Thermal resolution: 640 × 512

• Waveband: 8–14 μm

The same U5 inspection references provide a dual-range temperature measurement mode:

• High gain: −20 to +150°C

• Low gain: 50 to +550°C

Thermal accuracy values are commonly listed as:

• ±2°C for −20 to +150°C

• ±5°C for 50 to +550°C

This makes the Go2-W-U5 inspection bundle relevant for real industrial needs such as identifying overheating electrical panels, hot bearings, abnormal motor temperatures, or thermal leakage patterns during maintenance audits.

Expandability and software ecosystem

Unitree’s Go2-W feature set includes support for APP control, OTA updates, manual controller support, and multi-radio connectivity including WiFi6 + 4G + Bluetooth, along with secondary development to enable custom workflows and integration.
These capabilities support enterprise users who want continuous software improvements, remote diagnostics-style workflows, and integration into custom inspection routines.

Technology and Specifications

Go2-W platform specifications (base)

Unitree’s Go2-W parameter listing includes:

• Standing size: 70 cm × 43 cm × 50 cm

• Weight (with battery): about 18 kg

• Tires: 7-inch pneumatic tires

• Voltage: 33.6 V

• Payload: ≈ 8 kg (MAX ~ 12 kg)

• Speed: 0–2.5 m/s

• Max climb drop height: < 70 cm

• Max climb angle: 35°

• Battery: 15,000 mAh (long endurance)

• Endurance: 1.5–3 hours

• Fast charger: 33.6 V / 9 A

U5 inspection payload (PTZ + thermal)

Common U5 inspection descriptions list:

• Twin-light head: three-axis stabilized gimbal

• Angular jitter: ±0.01°

• Pitch: −90° to +25°

• Yaw: −270° to +270°

• Roll: −45° to +45°

• Thermal: 640×512, 8–14 μm

• Temperature ranges: −20 to +150°C (high gain), 50 to +550°C (low gain)

Applications and Use Cases

Industrial inspection and predictive maintenance

Go2-W-U5 is designed for facilities where inspections must cover long routes efficiently but still handle obstacles. Wheeled travel supports steady movement through corridors and floors, while legged control helps at transitions (thresholds, ramps, uneven ground). Thermal imaging adds value by revealing overheating components before failure—useful in preventive and condition-based maintenance programs.

Security patrol and nighttime monitoring

The dual-light stabilized head and thermal sensor support night patrol, perimeter observation, and monitoring in low visibility. Thermal sensing can also help detect unusual heat sources or operating equipment that should be powered down, improving safety and operational awareness.

Remote assessment in hazardous or restricted areas

Robots are frequently used to reduce human exposure to uncertain environments. A mobile platform with PTZ + thermal can provide “eyes-on” confirmation of equipment conditions or suspicious hot spots before personnel enter an area, especially when access is limited or time-critical.

R&D and robotics inspection workflows

Unitree’s emphasis on secondary development and modular expansion supports research teams building inspection software, autonomy behaviors, mapping pipelines, or multi-sensor patrol routines on a commercially available robot base.

Advantages / Benefits

Efficient travel without losing obstacle capability

Go2-W’s wheel-foot design improves efficiency on flat ground while retaining legged movement for obstacles and steps—useful for inspection routes that combine smooth floors with irregular transitions.

Stabilized visual inspection quality

The U5 package’s three-axis stabilized PTZ head (±0.01° jitter) enables clearer, more usable footage during movement and more precise aiming during inspections.

Thermal inspection for safety and anomaly detection

A 640×512 thermal sensor with a published range up to ~550°C supports practical inspection tasks like identifying hotspots in electrical systems, mechanical friction points, or overheating process equipment.

Enterprise endurance and fast charging

Unitree lists Go2-W with a 15,000 mAh battery and 33.6V/9A fast charging, supporting multi-hour patrol cycles (usage-dependent).

Expandability and fleet-style usability

App control, OTA updates, and multi-radio connectivity support enterprise deployment patterns where robots require ongoing improvements, remote monitoring, and integration into operational workflows.

FAQ Section

What is Unitree Go2-W Inspection Package (Go2-W-U5)?

Go2-W-U5 is an inspection-focused Go2-W configuration that combines the wheeled–legged Go2-W platform with a stabilized PTZ gimbal head and 640×512 thermal imaging, designed for professional inspection and patrol work.

How does Go2-W-U5 work?

It uses wheel-on-foot mobility to roll efficiently on smooth ground while retaining legged stepping for obstacles, and it adds an inspection payload (PTZ stabilization + thermal camera) to capture stable visuals and heat data during remote operation.

Why is Go2-W-U5 important?

It improves inspection efficiency and safety by enabling mobile, remote monitoring—including thermal hotspot detection—while reducing the need for close human access in uncertain or hard-to-reach areas.

What are the benefits of Go2-W-U5?

Key benefits include 0–2.5 m/s mobility, 8–12 kg payload, <70 cm obstacle capability, a stabilized PTZ head (±0.01°), and 640×512 thermal imaging with temperature measurement ranges up to ~550°C.

Summary

Unitree Go2-W Inspection Package (Go2-W-U5) is a wheeled–legged enterprise inspection robot dog that pairs Go2-W’s efficient rolling mobility and obstacle-handling leg control with an inspection payload featuring a three-axis stabilized twin-light PTZ head and a 640×512 thermal imaging sensor. With published Go2-W parameters including 0–2.5 m/s speed, 8–12 kg payload, <70 cm obstacle capability, and a 15,000 mAh long-endurance battery, Go2-W-U5 is positioned for industrial inspection, facility patrol, night monitoring, and safety-focused remote assessment where stable imagery and thermal intelligence are critical.
