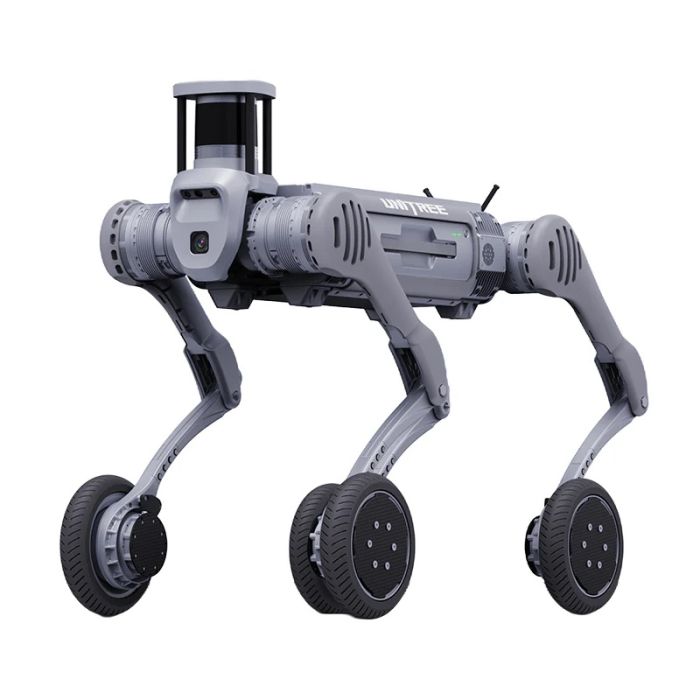

Unitree B2-W Quadruped Robot

B2-W: The Heavy-Duty Quadruped Revolutionizing Industrial Automation

The Unitree B2-W is a cutting-edge, high-performance quadruped robot designed for demanding industrial and research applications. Boasting exceptional payload capacity, robust build quality, and advanced AI-driven navigation, the B2-W excels in challenging environments. Equipped with powerful motors, sophisticated sensors, and customizable interfaces, this robot is ideal for tasks requiring heavy lifting, precise movement, and autonomous operation. Its rugged design ensures reliability in harsh conditions, making it a versatile platform for diverse industrial automation and research projects.

Design and Features

Wheeled quadruped architecture

The defining characteristic of the B2-W is its wheel-integrated leg structure. This configuration typically enables:

• Rolling locomotion for efficient travel over paved floors, warehouse aisles, and corridors.

• Leg-assisted stabilization to keep balance under payload and during turns or slope transitions.

• Posture adjustment (raising/lowering body height and stance) to handle docking, payload placement, and sensing tasks.

Chassis form factor

Listings for the B2-W commonly describe a compact footprint suitable for industrial spaces, with published dimensions around 1098 mm × 550 mm × 758 mm (standing).

Payload and field usability

Many commercially posted specifications highlight high static/standing payload and a lower—but still substantial—moving payload. This is typical in mobile robotics: carrying weight while stationary is easier than maintaining stability and stopping distance while moving. Public listings commonly cite:

• Standing payload up to ~120 kg

• Moving payload around >40 kg (walking/moving)

Technology and Specifications

Mobility and performance

Commonly listed B2-W mobility specifications include:

• Top speed: often listed around 15 km/h, with some listings citing higher values.

• Max climb angle: commonly listed around 45° (implementation and surface-dependent).

Power system

Public listings frequently describe:

• Battery capacity: roughly 2 kWh class (often shown as “2 kWh” or “>2 kWh”).

• System voltage: examples include 58 V.

Onboard compute and integration

B2-W listings often mention x86 compute options (for platform functions and user development). For example, some sellers reference Intel Core i5/i7 configurations for basic platform operation and development workloads.

Sensing (configuration-dependent)

Industrial mobile robots frequently ship in multiple sensing packages. Listings for B2-W variants sometimes include LiDAR-equipped packages for mapping and navigation, which can be important for autonomous patrolling, warehouse navigation, and inspection routes.

Applications and Use Cases

Industrial inspection and patrol

In facilities such as warehouses, plants, and large commercial sites, a wheeled quadruped can support:

• Routine perimeter checks and aisle patrol

• Thermal/visual inspection payloads (depending on integration)

• Sensor-based condition monitoring along repeated routes

Robotics R&D and education

The B2-W form factor appeals to R&D teams building:

• Navigation stacks (SLAM, route planning, obstacle avoidance)

• Payload manipulation experiments (carrying test rigs, instruments, or prototypes)

• Fleet operations prototypes and remote operation workflows

Logistics support and payload transport

With high static payload ratings and meaningful moving payload capacity, the B2-W concept can be used for:

• Moving tools, kits, or sensors across a site

• Serving as a “mobile base” for specialized equipment (e.g., scanning, measurement, or monitoring payloads)

Advantages / Benefits

Efficiency on smooth ground

Wheel-based travel generally reduces energy consumption on flat surfaces, which can translate into better endurance and faster route completion than leg-only motion in similar conditions.

Stability and posture control

A quadruped stance can provide active balancing during acceleration, deceleration, and turns, especially when carrying payload.

Payload flexibility

Published listings emphasize high standing payload and a notable moving payload, supporting practical field use cases where the robot is a carrier for sensors or equipment.

FAQ Section

What is the Unitree B2-W?

The Unitree B2-W is a wheeled quadruped robot designed for industrial mobility, research, and field tasks, combining wheel efficiency with quadruped balance and posture control.

How does the Unitree B2-W work?

The platform uses a wheel-integrated quadruped structure: wheels support efficient rolling on smooth ground, while leg posture and balance control help maintain stability under payload and handle slopes or surface transitions.

Why is the Unitree B2-W important?

Wheeled quadrupeds address a common gap in field robotics by offering faster and more energy-efficient travel than leg-only systems on flat surfaces, while preserving stability and adaptability that conventional wheeled robots may lack in mixed environments.

What are the benefits of the Unitree B2-W?

Commonly cited benefits include high payload capacity, strong climbing capability, 2 kWh-class battery options, and configuration choices such as integrated navigation sensors.

What payload can the B2-W carry?

Public listings often cite up to ~120 kg standing payload and ~40 kg moving payload (test conditions vary).

Summary

The Unitree B2-W represents a modern approach to industrial mobility by merging wheel efficiency with quadruped stability and posture control. With commonly listed specifications emphasizing high standing payload, meaningful moving payload, strong slope handling, and 2 kWh-class power, the B2-W is positioned for inspection, patrol, R&D, and mobile payload applications where mixed indoor/outdoor conditions and operational flexibility matter.
