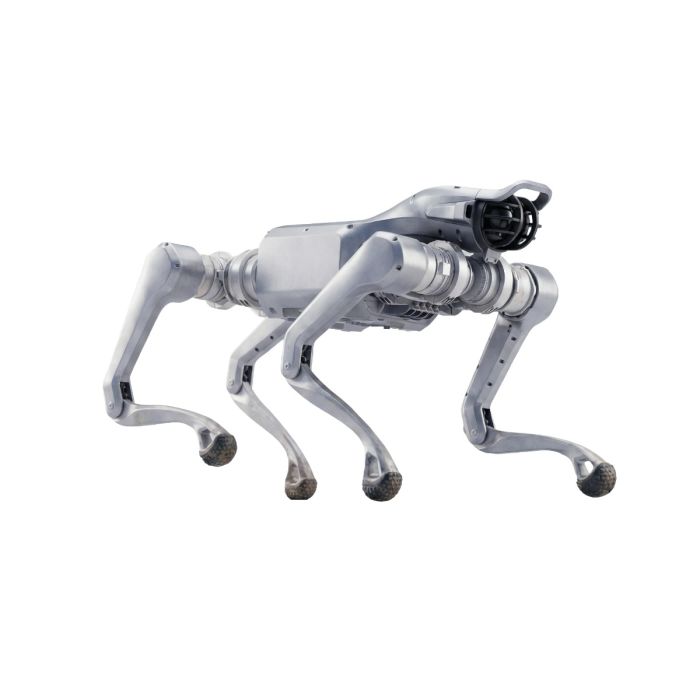

Unitree AS2 Pro Industrial Quadruped Robot Dog

Unitree AS2 Pro Industrial Quadruped Robot Dog

Within the AS2 lineup, Unitree publishes three primary models—AS2 Air, AS2 Pro, and AS2 Edu—where AS2 Pro is commonly presented as the “industrial ready” configuration that adds IP54 rain/dust resistance, higher joint torque, longer battery endurance, and enhanced features such as GPS/4G (disabled by default; enabled with user authorization) compared with the entry Air model.

The AS2 Pro is designed for organizations that need more ruggedness and range than entry-level robot dogs, but do not require the full developer-focused toolchain (e.g., secondary development and optional compute expansion dock) that Unitree reserves for its AS2 Edu configuration.

Design and Features

Compact industrial form factor

Unitree lists the AS2 Pro with the same chassis dimensions as the other AS2 variants, aiming to balance agility and stability:

• Size (standing): 720 × 378 × 457 mm

• Size (lying prone): 776 × 378 × 233 mm

• Weight (with battery): ~18 kg

This size class is intended to fit through common doorways and narrow access routes while still delivering dynamic gait performance.

12-DOF quadruped architecture and industrial joints

The AS2 Pro uses a standard quadruped layout with 12 degrees of freedom (joint motors)—three powered joints per leg—allowing it to generate a wide range of gaits for uneven terrain, turning-in-place movements, and stair climbing.
Unitree highlights industrial-grade crossed roller bearings for “high precision, high load capacity,” plus dual encoders and low-inertia, high-speed inner rotor PMSM actuators designed to improve response and heat dissipation.

Higher torque and endurance than AS2 Air

In Unitree’s published table, AS2 Pro increases the maximum joint torque from the Air model’s “approx. 65 N·m” to “approx. 75 N·m”, positioning it as a more capable option for higher loads and more demanding terrain.

Industrial sensing package

Unitree distinguishes AS2 Pro from AS2 Air by its LiDAR and connectivity stack:

• Ultra-Wide-Angle LiDAR: Industrial-grade 64–128-line LiDAR (Pro and Edu) vs Unitree L2 (Air)

• HD camera: listed as YES for Air/Pro/Edu

• GPS and 4G: Yes (disabled by default; enabled with user authorization) for Pro (and Edu)

The higher-end LiDAR configuration is intended to improve perception robustness for complex routes, including mixed lighting and environments with repetitive geometry.

IP54 protection for field use

Unitree lists the AS2 Pro with IP54 protection, describing it as suitable for rain and dust exposure under typical “industrial outdoor” conditions (not full submersion).

Technology and Specifications

Official AS2 Pro specification highlights

Unitree’s published AS2 parameter table lists the following for AS2 Pro (selected high-impact specs):

Mechanical

• Weight (with battery): ~18 kg

• Material: Aluminum alloy + high-strength engineering plastic

• Degrees of Freedom: 12

• Max joint torque: ~75 N·m

Performance

• Battery life (unloaded): ~4 hours continuous walking, ~20 km

• Battery life (loaded): with 13 kg load, >2.5 hours, ~13 km

• Max standing load: ~55 kg

• Continuous walking load: ~13 kg

• Slope walking capability: ~40°

Accessories

• Battery capacity: Long range (15,000 mAh) ×1

• Charger: Fast charging (51V 9A)

• Remote control: YES (Pro and Edu)

• Protection rating: IP54

Unitree notes that the above figures are measured under laboratory conditions and that real-world performance varies with usage conditions.

Secondary development and expansion dock

Unitree lists Secondary Development: Not Supported for AS2 Pro (while the Edu model is “Supported”).
Similarly, the high computing power expansion dock (Jetson Orin NX option) is shown only for the Edu configuration, not Pro.

Applications and Use Cases

Industrial inspection and route patrol

AS2 Pro is designed for repeatable patrol routes—inspection rounds, perimeter checks, and asset monitoring—especially in environments with stairs, ramps, curbs, and debris that can impede wheeled robots. Recent reporting on the AS2 launch frames the platform for industrial and outdoor applications.

Mobile payload carrier for field teams

With a ~13 kg continuous walking load and a larger standing load rating, AS2 Pro can serve as a mobile carrier for tools, sensors, or small equipment in campuses and industrial sites. Its long-range battery spec is aligned with longer patrol distances and fewer charging interruptions.

Hybrid autonomy with remote supervision

Field deployments often combine autonomous behaviors (route following, obstacle avoidance) with operator-in-the-loop intervention when the robot encounters novel obstacles, access restrictions, or edge cases. AS2 Pro’s remote control support and connectivity options align with this supervision model.

Advantages / Benefits

A practical “industrial middle tier”

AS2 Pro is positioned between entry configurations and fully developer-oriented variants:

• More rugged and longer-range than AS2 Air (IP54, higher torque, long-range battery).

• Less complex than AS2 Edu, which adds secondary development support and optional compute expansion.

This makes it attractive for organizations that want deployment-focused capability without building a full custom autonomy stack.

Long-range endurance for meaningful routes

Unitree’s published ~4 hours / ~20 km unloaded endurance for Pro is designed for multi-kilometer patrol loops and long inspection rounds—scenarios where shorter-runtime quadrupeds require frequent recharging or battery swaps.

Terrain capability for real facilities

Specs like ~40° slope capability and ~25 cm stair climbing target real-world route discontinuities (ramps, steps, threshold transitions). In many industrial sites, these features determine whether a robot dog can replace manual rounds.

FAQ

What is the Unitree AS2 Pro industrial quadruped robot dog?

Unitree AS2 Pro is a mid-tier AS2 robot dog designed for industrial inspection and patrol, featuring IP54 protection, industrial LiDAR, and long-range battery endurance.

How does Unitree AS2 Pro work?

AS2 Pro uses a 12-DOF legged chassis with industrial joint components and sensors (HD camera + industrial-grade 64–128-line LiDAR) to navigate routes and avoid obstacles, with optional GPS/4G enabled by user authorization.

Why is Unitree AS2 Pro important?

It offers a practical balance of ruggedness, endurance, and terrain capability in a compact robot dog, helping automate inspection and patrol routes where wheeled robots struggle.

What are the benefits of Unitree AS2 Pro?

Key published benefits include IP54 protection, ~4 hours / ~20 km unloaded endurance, ~13 kg continuous walking load, ~40° slope capability, and 0–3.7 m/s speed.

Summary

The Unitree AS2 Pro is an industrial-focused configuration of Unitree’s AS2 quadruped robot dog line, offering a compact chassis with enhanced field readiness—IP54 protection, industrial-grade 64–128-line LiDAR, ~75 N·m joint torque, and long-range 15,000 mAh battery endurance rated at ~4 hours / ~20 km unloaded. Positioned between the entry AS2 Air and the developer-oriented AS2 Edu, AS2 Pro targets real-world inspection and patrol deployments that benefit from legged mobility across stairs and steep slopes while maintaining practical, quote-based availability through commercial sales channels.
