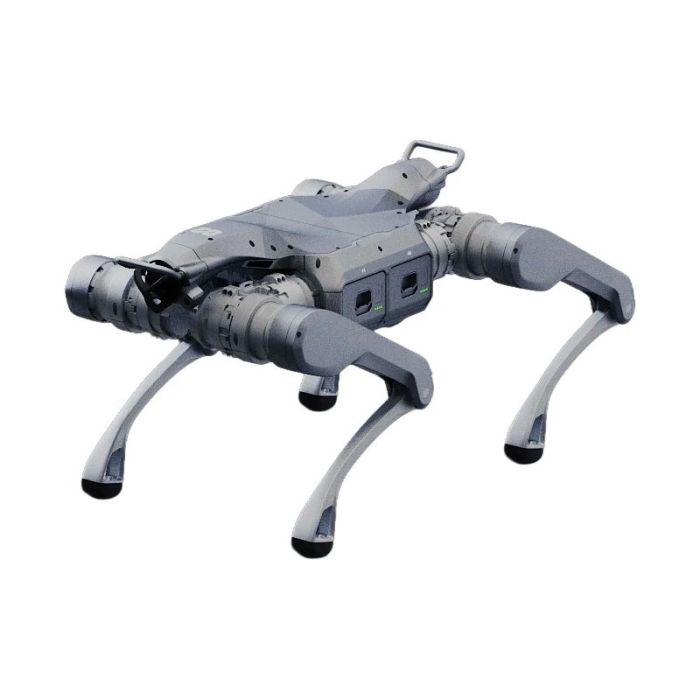

Unitree A2 Standard Quadruped Robot Dog

A2 Standard A2 Series Products (A2-Standard) (A2-STANDARD)

The A2 is characterized by a medium-size chassis, 12 motorized joints (12-DOF), dual-sided perception options, and a hot-swappable dual-battery architecture designed to support longer-duration missions and continuous operation workflows.

Unlike consumer-oriented “robot dog” products focused on entertainment, the A2 is marketed as a heavy-payload legged robot with a development-friendly compute and interface stack. In its standard configuration, it integrates a platform CPU plus an Intel Core i7 computing environment intended for user development and secondary development projects.

Design and Features

Industrial quadruped form factor

Unitree’s A2 Standard uses a compact, field-deployable quadruped design with a standing footprint of 820 × 440 × 570 mm and a prone footprint of 720 × 550 × 220 mm. The enclosure and structural approach combine aluminum alloy with high-strength engineering plastics, balancing durability with portable weight.

Lightweight platform with high payload

A key positioning point of the A2 is high carrying capability relative to body mass. The robot weighs ~31 kg without batteries and ~37 kg with batteries, while supporting a continuous walking payload of ~25 kg and a maximum standing load of ~100 kg under appropriate conditions.

Dual-battery system and hot swap operation

The A2 Standard includes dual battery slots designed for parallel power delivery. Unitree describes the system as hot-swappable, allowing a battery exchange without ending the mission—an approach commonly sought in industrial inspection and remote operations where downtime is costly.

Dual-sided perception and lighting

For navigation and awareness, the A2 supports environmental sensing via LiDAR and vision, paired with a front light for low-light scenarios. The A2 product line supports dual LiDAR placement (front and rear) as an industrial perception strategy, reducing blind spots when maneuvering in tight corridors, pipe racks, and utility areas.

Environmental protection and field readiness

Ingress protection is a critical requirement for outdoor robotics. Unitree lists the A2 Standard at IP56, indicating resistance against dust ingress sufficient to interfere with operation and protection against strong water jets.

Technology and Specifications

Mechanical system

The A2 Standard has 12 joint motors and is designed around industrial-grade components for long-term motion control. Unitree notes the use of industrial-grade crossed roller bearings for precision and load performance, and a low-inertia, high-speed inner rotor PMSM motor design supporting responsiveness and thermal behavior. Maximum joint torque is listed at ~180 N·m.

Core mechanical highlights (A2 Standard):

• Degrees of freedom: 12 (joint motors)

• Max joint torque: ~180 N·m

• Slope capability: ~45°

• Max step height: ~30 cm

Power system and endurance

Unitree specifies a 50.4V supply system and a dual-battery architecture:

• Single battery: 9000 mAh (453.6 Wh)

• Dual batteries: 18000 mAh (907.2 Wh)

Endurance is presented as continuous walking estimates:

• No load: >5 hours, ~20 km

• With 25 kg load: >3 hours, ~12.5 km

The A2 is also rated for an operating temperature range of −20°C to +55°C, supporting use in cold storage yards, winter inspection routes, and hot industrial areas (within safe operational practices).

Mobility and speed

The A2’s standard speed range is listed as 0–3.7 m/s, with an “up to ~5 m/s” note depending on configuration and application conditions.
Independent coverage has described the A2 class as a high-mobility quadruped capable of rapid movement across uneven terrain, often compared with other premium inspection robots in terms of agility.

Sensors and connectivity

Unitree lists modern wireless and I/O options for enterprise integration:

• Wi-Fi 6 and Bluetooth 5.2

• Microphone array and speaker for audio interaction

• External interfaces: RS485 ×2, CAN ×2, Gigabit Ethernet ×2, USB-C (platform CPU) ×2, USB-C (Intel Core i7) ×2, plus 12V/24V/BAT outputs

Compute and development stack

A central differentiation of the A2 Standard is its “open for rapid development” positioning. Unitree lists:

• Standard control & compute: “8-Core high-performance CPU (platform) + Intel Core i7 (user development)”

• Secondary development: supported

• Smart OTA upgrade: continuous upgrades

This configuration targets robotics R&D teams building custom autonomy behaviors, SLAM pipelines, inspection workflows, and sensor fusion stacks—especially when industrial customers require software ownership.

Applications and Use Cases

Industrial inspection and patrol

One of the most common A2 deployments is routine inspection in industrial sites: facilities, warehouses, refineries, mining operations, power infrastructure, and remote assets. Payload capacity supports add-ons such as thermal cameras, gas sensors, inspection microphones, or extra compute modules, while long walking endurance supports repeated patrol routes.

Logistics and internal transport

With a continuous walking payload rating around 25 kg, the A2 can be configured for indoor logistics or outdoor yard transport where terrain changes are common (ramps, grates, rough pavement).

Emergency response and hazardous environments

Unitree positions the A2 platform for navigating complex environments that may be unsafe for personnel, such as post-incident assessment zones. The combination of ingress protection and perception sensors can support remote evaluation tasks when paired with appropriate safety controls and operational procedures.

Research, autonomy development, and education

With its Intel Core i7 development environment and industrial interfaces (CAN/RS485/Ethernet), the A2 Standard is also used as a legged robotics research base—suitable for labs working on locomotion control, navigation stacks, multi-sensor mapping, or embodied AI in real-world spaces.

Advantages / Benefits

High payload-to-weight efficiency

A ~37 kg platform supporting ~25 kg continuous walking payload enables cost-effective deployment where additional sensors or mission hardware are required.

Hot-swappable endurance model

Industrial robots often need “shift-style” uptime. The A2’s dual-slot battery and swap-friendly design supports longer routes and reduced downtime relative to single-pack systems.

Open integration and industrial interfaces

RS485, CAN, GigE, and multiple USB-C ports make the robot practical for systems integration, enabling direct attachment of radios, gateways, cameras, and custom compute nodes.

Real-world mobility characteristics

Features such as 45° slope capability, 30 cm step height, and a speed range up to ~3.7 m/s (and higher in some conditions) position the A2 as a serious “terrain-capable” platform rather than a flat-floor-only robot.

FAQ Section

What is the Unitree A2 Standard (A2-STANDARD)?

The Unitree A2 Standard is an industrial quadruped robot designed for inspection, logistics, research, and field mobility tasks. It combines a 12-DOF legged chassis with a development-oriented compute stack and industrial connectivity.

How does the Unitree A2 battery system work?

The A2 uses dual battery slots and supports a hot-swappable dual-battery design. Unitree lists a single battery at 9000 mAh (453.6 Wh) and dual batteries at 18000 mAh (907.2 Wh) to extend mission time.

Why is Unitree A2 important for industrial inspection?

The A2 is built for demanding environments with features like 45° slope walking, 30 cm step height, IP56 protection, and long walking endurance—helpful for patrolling complex facilities where people or wheeled robots may struggle.

What are the benefits of the Unitree A2 Standard?

Key benefits include a strong payload-to-weight ratio, hot-swappable endurance design, industrial interfaces (CAN/RS485/GigE), and a development-ready compute setup with an Intel Core i7 environment for custom autonomy and inspection workflows.

Summary

Unitree A2 Standard (A2-STANDARD) is a medium-size industrial quadruped robot that combines high mobility, serious payload handling, and an integration-friendly compute and I/O platform. With dual-battery endurance, industrial-grade joints, modern wireless, and strong terrain capability, the A2 Standard fits a wide range of professional uses—from inspection and logistics to robotics R&D—making it a practical foundation for next-generation legged automation deployments.
