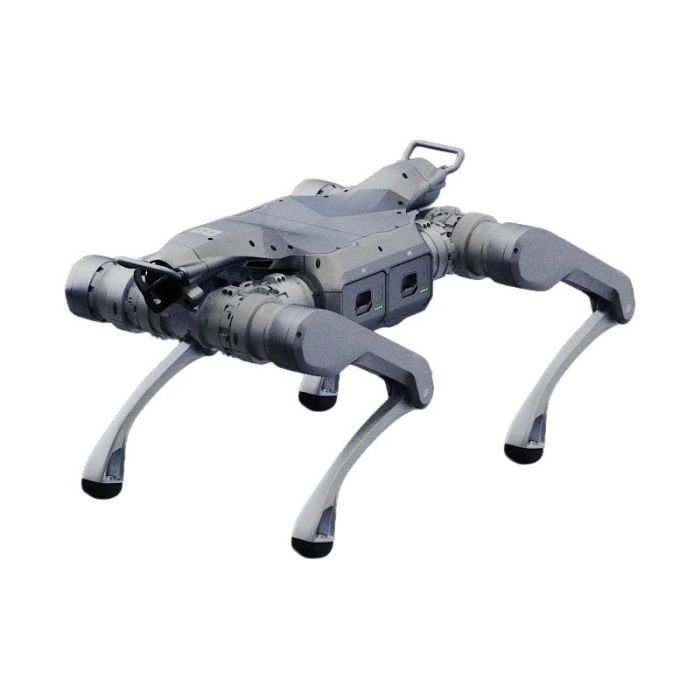

Unitree A2 Pro Quadruped Robot Dog

A2 Pro A2 Series Products (A2-Pro) (A2-PRO)

The A2 Pro is positioned for industrial inspection, logistics support, public safety, and research—use cases that demand stable movement over uneven terrain, dependable perception in complex environments, and sustained runtime. Unitree highlights the A2’s endurance and load handling capability, noting that the robot can continuously walk for over 5 hours without load (~20 km) or over 3 hours with a 25 kg load (~12.5 km).

Within the A2 lineup, A2-PRO distinguishes itself with an upgraded sensing and ruggedization profile, including dual LiDAR and an enhanced ingress-protection rating range (IP56–IP67 with core components rated IP67), which makes it better suited for demanding field conditions compared with base configurations.

Design and Features

Industrial quadruped architecture and durable construction

Unitree A2 Pro uses a mid-sized quadruped form factor engineered for high-duty mobility in industrial settings. The chassis is listed as a combination of aluminum alloy and high-strength engineering plastic, balancing structural rigidity with practical weight and impact resistance.

The robot’s footprint is optimized for both operation and transport:

• Standing size: 820 × 440 × 570 mm

• Prone size: 720 × 550 × 220 mm

• Weight (with battery): ~37 kg

This combination places A2 Pro in a portability class that can still deliver meaningful payload and endurance, making it suitable for deployment across multi-site facilities and outdoor operations.

High-power leg system for rugged terrain

A2 Pro is built around a 12-joint architecture (12 DoF via joint motors), using low-inertia, high-speed inner rotor PMSM motors designed for fast response and heat dissipation.
Unitree specifies a maximum joint torque of about 180 N·m, supporting high-traction motion and recovery stability on difficult surfaces.

For legged robots, torque and responsiveness are essential for:

• climbing slopes and uneven steps

• correcting balance disturbances

• maintaining stable body posture while carrying payload

Dual-sided perception for reduced blind spots

One of the most visible A2 Pro upgrades is dual LiDAR, paired with an HD camera and front lighting. Unitree’s A2 page describes “dual-sided perception” and “zero blind spots,” noting the use of two industrial LiDARs (front & rear) in the A2 Pro configuration.

In practical robotics deployments, dual LiDAR improves:

• 360° obstacle awareness

• mapping/SLAM robustness

• navigation confidence in tight or cluttered environments

• safety margins during autonomous movement

External vendors commonly describe this upgrade as improved coverage and SLAM accuracy for dynamic environments.

Hot-swappable dual-battery system

The A2 Pro uses a dual-slot, dual-battery system designed for sustained missions. Unitree describes this architecture as a hot-swappable dual-battery design that supports “uninterrupted mission” capability.
Each battery is listed at 9000 mAh (453.6 Wh), with dual-battery capacity reaching 18000 mAh (907.2 Wh).

Unitree also specifies reliability across a wide temperature band, stating the A2’s power system is designed to operate from -20°C to 55°C.

Optional wheel-leg configuration

Unitree lists a wheel-leg option (replaceable wheel-leg) as available, expanding the A2 platform into a hybrid mobility category for applications that benefit from rolling efficiency while retaining stepping capability.

Technology and Specifications

Mechanical parameters (Unitree published)

Unitree provides a parameter table that lists core A2 Pro mechanical specifications:

• Degrees of freedom (joint motors): 12

• Joint bearings: industrial-grade crossed roller bearings (high precision, high load capacity)

• Maximum joint torque: ~180 N·m

• Standing load: ~100 kg

• Continuous walking load: ~25 kg

• Slope walking capability: ~45°

• Max step height (stairs): 30 cm

• Max climb height: ~0.5–1 m

These metrics position A2 Pro as a field-capable platform for both indoor infrastructure and outdoor terrain, especially where slopes, curbs, and irregular surfaces are expected.

Speed and mobility performance

Unitree lists operational speed as 0–3.7 m/s (up to ~5 m/s).
This speed envelope is commonly associated with high-mobility inspection and logistics workflows, where time-to-target and traversal speed can materially affect productivity.

In independent coverage, the Unitree A2 series has been described as operating on steep inclines and uneven terrain with strong recovery ability, highlighting its rugged mobility design intent.

Electrical and compute interfaces

Unitree lists the A2 platform supply voltage at 50.4 V, with dual encoders per joint and local air cooling.
For developer integration, the external interface options include:

• RS485 ×2

• CAN ×2

• Gigabit Ethernet ×2

• USB Type-C (8-core CPU) ×2

• USB Type-C (Intel Core i7) ×2

• Power output: 12 V / 24 V / battery output

This interface set reflects the A2 Pro’s role as a development platform: it supports both robotics control networking and payload integration for sensors, edge compute modules, and auxiliary systems.

Sensor stack and ruggedization differences (A2 vs A2 Pro)

Unitree lists the A2 Pro sensor configuration as:

• LiDAR ×2 + HD camera ×1

The A2 Pro ingress protection is listed as:

• IP56–IP67 (core components rated IP67)

This differs from the base A2 configuration, which lists LiDAR ×1 and IP56.
As a result, A2 Pro is typically selected for environments where exposure to dust, spray, and harsh outdoor conditions are more likely.

Applications and Use Cases

Industrial inspection and patrol robotics

A2 Pro is commonly positioned for industrial inspection tasks such as:

• facility perimeter patrol

• site walkthrough inspection

• monitoring of equipment corridors

• navigation through complex indoor layouts

Dual LiDAR is particularly relevant for inspection routing where tight clearances, dynamic obstacles (people/vehicles), and partial occlusions are common.

Logistics support and mobile payload carrying

With a listed continuous walking load of ~25 kg and a standing load of ~100 kg, A2 Pro supports light-to-moderate payload transport, including mounted equipment such as:

• cameras and inspection rigs

• sensor pods

• radio/edge compute payloads

• small delivery and supply containers

In these deployments, sustained runtime matters as much as speed—A2 Pro is designed for extended operation cycles, including long-distance movement without recharging interruptions.

Emergency response and field operations

Unitree positions the A2 platform for multi-scenario readiness, including “emergency rescue” settings.
In practice, quadruped robots are often evaluated for tasks like remote reconnaissance, situational awareness, and carrying sensors into areas that may be difficult or unsafe for humans.

Robotics research and secondary development

Unitree states that secondary development is supported and references a “Secondary Development Manual,” indicating A2 Pro is intended for research teams and integrators who will build custom autonomy stacks.
The platform’s external interfaces (CAN, RS485, Ethernet, USB-C) and hot-swappable power system are consistent with robotics R&D workflows that require frequent iteration and modular hardware expansion.

Advantages / Benefits

Enhanced perception for safer autonomous navigation

Dual LiDAR significantly improves coverage and reduces blind spots, which supports more stable obstacle avoidance and mapping in complex environments.

Field-ready endurance and uninterrupted runtime design

A2 Pro’s dual-battery architecture is designed for long operational windows and mission continuity, with Unitree emphasizing hot-swappable operation and multi-hour walking endurance.

Strong load handling in a mid-sized form factor

The combination of ~37 kg overall weight and industrial load targets (25 kg continuous walking load, 100 kg standing load) makes A2 Pro useful where mobility and carrying capacity must coexist.

Higher ruggedization ceiling than base configurations

The A2 Pro’s listed IP range and core-component IP67 rating supports tougher deployment conditions than platforms limited to basic splash resistance.

FAQ Section

What is Unitree A2 Pro (A2-PRO)?

Unitree A2 Pro (A2-PRO) is an industrial quadruped robot designed for rugged mobility, autonomous navigation development, and long-duration field operation with hot-swappable dual batteries and dual LiDAR perception.

How does Unitree A2 Pro work?

A2 Pro walks using 12 powered joints driven by high-performance motors and uses a perception stack that includes two industrial LiDAR sensors and an HD camera, enabling obstacle detection and navigation in complex environments.

Why is Unitree A2 Pro important?

A2 Pro is important because it provides a ready-to-deploy quadruped platform for industrial and research use cases where mobility, endurance, and robust sensing are critical—especially in terrains and facilities that are difficult for wheeled robots.

What are the benefits of Unitree A2 Pro?

Key benefits include dual LiDAR coverage, hot-swappable dual batteries, high load capability (25 kg walking / 100 kg standing), up to ~5 m/s speed, and enhanced ruggedization up to IP56–IP67 (core components IP67).

Summary

Unitree A2 Pro (A2-PRO) is a premium, industrial-oriented configuration of Unitree’s A2 quadruped robot platform, emphasizing extended endurance, high payload mobility, and enhanced sensing for real-world autonomy and deployment. Unitree’s published specifications list dual LiDAR + HD camera, a hot-swappable dual-battery design (up to ~20 km continuous walking without load), load handling up to ~25 kg while walking and ~100 kg standing, and ruggedization up to IP56–IP67 with core components rated IP67. These attributes make A2 Pro a practical choice for industrial inspection, logistics support, emergency-response evaluation, and advanced robotics R&D where reliable mobility and strong perception are essential.
