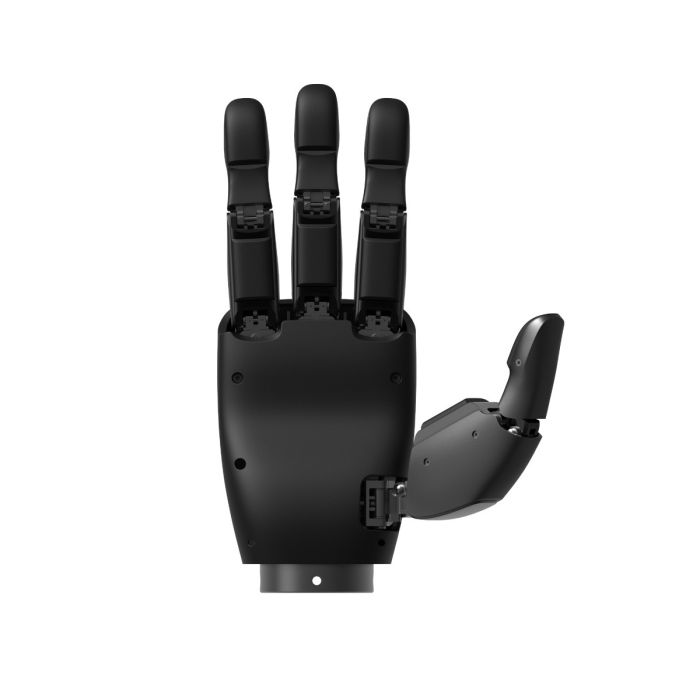

Paxini Dexh5 (DexH5)

Paxini Dexh5 (DexH5)

DexH5 is positioned as a tactile-first robotic hand for practical deployment where contact feedback is essential—such as handling irregular objects, compensating for uncertainty in positioning, or improving grip stability during manipulation tasks. Compared with grippers that rely mainly on open/close actuation, dexterous hands like DexH5 are designed to support a wider range of grasps (pinch, power grasp, press) and more human-like object interaction.

Design and Features

Bionic multi-joint hand structure

DexH5 uses a multi-joint, multi-degree-of-freedom bionic design intended to replicate common human-hand actions such as grasping, rotating, pinching, and pressing. The overall concept emphasizes dexterity and natural hand motion while keeping the structure compact enough for integration into robotic arms and mobile manipulators.

Multi-dimensional tactile sensing (ITPU array)

A defining capability of DexH5 is its built-in tactile sensing system. The hand integrates 396 ITPU multi-dimensional tactile sensing units within the hand structure, enabling the robot to detect contact events and react more intelligently to changes in object position or grip condition.

In practical manipulation, tactile sensing can reduce reliance on perfect vision alignment by providing immediate feedback during grasp closure, object slip onset, and contact force transitions—particularly helpful when handling reflective, dark, or deformable items that can challenge RGB perception.

Lightweight structural design

DexH5 is described as using lightweight, high-strength composite materials combined with a bionic structure approach to improve agility and reduce inertia at the end-effector. This lightweight design is intended to support faster motion, easier arm integration, and improved overall manipulation efficiency.

Payload-oriented capability

DexH5 is specified with a maximum payload of up to 4 kg (lab-reported), allowing it to perform sustained handling tasks across a wide set of industrial and service use cases where higher grip stability is required than a small gripper typically provides.

Precision force control focus

DexH5 is presented as supporting precise fingertip force control, including a stated 0.1 N level precision force control capability in its official product description.

Technology and Specifications

Core technical specifications (official)

From PaXini’s published parameters, DexH5 includes the following key specs:

• Finger count: 4

• Active degrees of freedom: 5

• Total degrees of freedom: 9

• Tactile sensing: 396 ITPU tactile sensing units

• Rated payload (max): 4 kg*

• Max grasp diameter: 10 cm*

• Minimum open/close time: 1 s

• Drive method: Coreless motor drive (空心杯电机)

• Supported actions: basic human-hand actions such as grasp, pinch, press

• Communication protocols: EtherCAT / Modbus
  *Data attributed to PaXini’s internal lab.

Control and integration approach

DexH5 supports industrial integration protocols commonly used in robotics and automation, including EtherCAT and Modbus.
This is particularly relevant for applications where the dexterous hand must operate as part of a larger automation cell—coordinated with robot arms, conveyors, PLC logic, or machine vision systems.

Degrees of freedom: how to interpret the numbers

Dexterous-hand “DOF” can be counted in multiple ways (total joints, independently actuated joints, coupled joints, or passive joints). DexH5 is explicitly listed with 5 active DOF and 9 total DOF on the manufacturer page, which is the most reliable reference for configuration-based comparisons and procurement decisions.

Applications and Use Cases

DexH5 is designed as a general-purpose dexterous end-effector suitable for both research and field deployments. Common use cases include:

Industrial manufacturing and assembly

DexH5 can be applied in industrial manipulation tasks that benefit from tactile contact feedback, such as handling parts with variable tolerances, performing gentle press actions, or stabilizing items during tool-assisted operations. PaXini lists industrial manufacturing among its core application domains.

Warehousing and logistics handling

Dexterous hands can improve robustness when manipulating non-rigid packaging, mixed-shape consumer goods, and difficult-to-grip objects in logistics scenarios. Warehousing/logistics is included among PaXini’s primary application categories.

Consumer electronics workflows

Handling electronics and accessories often requires controlled force and reliable grip behavior. DexH5’s tactile sensing and pinch/grasp capability align well with light-duty electronics staging, kitting, or test-bench workflows.

Medical and healthcare support scenarios

PaXini also highlights medical and healthcare as a domain category, reflecting a broader robotics trend where tactile sensing and safe, compliant interaction are important in assistive handling tasks and controlled object transfer.

Commercial service robotics

Commercial service environments (front-of-house robotics, retail handling, assisted delivery, interactive demos) can benefit from tactile-driven stability and bionic motion. DexH5 is reed is listed under commercial scenarios as well.

Advantages / Benefits

Improved grasp stability through tactile feedback

Compared with simple parallel grippers, a tactile dexterous hand can detect contact events earlier and stabilize grasp closure—useful when object pose is uncertain or the object’s surface properties vary.

Human-like handling in compact robotic workcells

DexH5 supports multiple grasp modes (grasp/pinch/press), helping automation systems perform tasks that would otherwise require multiple custom grippers or frequent tool changes.

Industrial-friendly communications

Support for EtherCAT / Modbus helps DexH5 integrate into automation stacks that prioritize deterministic communication, controller compatibility, and standardized I/O mapping.

Payload capability for demanding handling tasks

A stated 4 kg maximum payload places DexH5 above many lightweight dexterous hands that prioritize fine manipulation but sacrifice load capacity.

FAQ Section

What is Paxini DexH5?

Paxini DexH5 is a four-finger multi-dimensional tactile dexterous robotic hand designed to provide human-like grasping and tactile feedback for robots used in industry, logistics, and embodied AI research.

How does DexH5 work?

DexH5 works by combining a multi-joint bionic hand mechanism with 396 embedded ITPU tactile sensing units, allowing the robot to detect contact and perform basic manipulation actions such as grasping, pinching, and pressing.

Why is DexH5 important for robotics?

DexH5 is important because tactile sensing improves grasp reliability in the real world—helping robots handle objects with uncertain position, variable surface friction, or inconsistent shapes more safely and consistently than simple grippers.

What are the benefits of DexH5?

Key benefits include multi-dimensional tactile sensing, a multi-joint bionic design, industrial communication support (EtherCAT/Modbus), and a stated up to 4 kg payload capacity, making it suitable for automation and embodied AI manipulation tasks.

Summary

Paxini DexH5 is a tactile-focused dexterous robotic hand engineered to bring contact-aware manipulation to real-world robotics. By integrating 396 ITPU tactile sensing units, supporting industrial protocols (EtherCAT/Modbus), and providing a bionic multi-joint structure with a lab-stated 4 kg payload, DexH5 is positioned as a practical, high-value end-effector for industrial automation, logistics handling, and embodied AI development.
