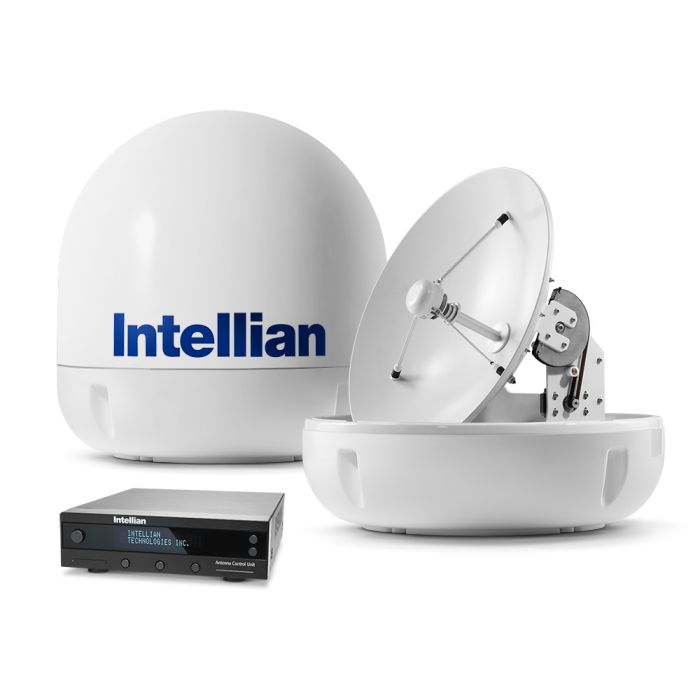

Intellian i6 US / Canada Marine Satellite TV System (B4-609S)

Regular Price: US$6,995.00 Sale Price: US$5,246.00
Based on a USD price of $5,246.00 and today's exchange rate.
Overview

Intellian's best-selling system, the i6 is renowned for its robustness and exceptionally strong signal gain. Great for extended offshore voyaging, the i6 is ideal for ocean cruisers, larger yachts and commercial vessels.

BRAND:
INTELLIAN
MODEL:
i6
PART #:
B4-609S
WARRANTY:
3 YEARS PARTS + 2 YEAR LABOR
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
Product Code:
Intellian-i6-System-B4-601S
Intellian i6 US / Canada Marine Satellite TV System (B4-609S)
Intellian i6/i6P Premium Overview
The Intellian i6/i6P provides excellent commercial-grade performance and efficiency compared to antenna systems in similar size. The i6/i6P is ideally designed for boats over 70 feet. Traditionally, bigger marine satellite antennas had cumbrous weight and complicated cable installation problems. Thanks to the i6's single cable design and the vacuum-forming technology, the i6/i6P has once again proved bigger can be lighter and simpler. With Intellian MIM, boaters can enjoy flipping channels through automatic satellite switching just like a home system. See the installation guide of DISH Network MIM for further details.
With its patent-pending innovations in Wide Range Search (WRS) and Dynamic Beam Tilting (DBT) technologies, the i6/i6P can always offer the most precision tracking capabilities and superior quality of satellite signal receptions in the extremely rough sea conditions.
The most innovative design of the i6/i6P is the integrated HD and TriSat modules in its control unit. This allows boaters the ability to access their favorite HDTV channels from leading satellite TV service providers easy just like they are used to do at home.
The i6/i6P has a built-in GPS system which enhances the speed of satellite signals acquisitions. In addition, the i6P provides the embedded Auto Skew Angle Control system to maintain optimal signal strength and increase the quality of satellite receptions in weak satellite signal coverage areas.

Intellian i6 System Diagram
More Information
PRODUCT TYPESATELLITE TV
USE TYPEMARINE
BRANDINTELLIAN
MODELi6
PART #B4-609S
NETWORKBELL TV, DIRECTV, DISH NETWORK
USAGE AREAREGIONAL - SEE COVERAGE MAP
ANTENNA SIZE60 cm (23.6 inch)
WEIGHT20.0 kg (44.0 lbs)
OPERATING TEMPERATURE-25°C to 55°C (-13°F to 131°F)
RADOME HEIGHT72 cm (28.3 inch)
RADOME DIAMETER70 cm (27.6 inch)
STORAGE TEMPERATURE-40°C to +80°C (-40°F to 176°F)
 Intellian i6 Features
 Fully Automated System
  • Automatic Satellite Search and Identification Function
  • 2-axis high speed tracking system
 High Performance Antenna
  • 60 cm (24 in) diameter parabolic antenna for receiving Ku-Band satellite signals
  • Circular or linear polarization depending on region and LNB selected
  • Built-in HD module for Ku-band HD TV reception
iQ²: Quick&Quiet℠ Technology
  • iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
  • The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
  • Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas
 Antenna Control Unit
  • Intuitive controls and digital satellite information display on the ACU
  • Wireless automated updates and diagnostics via Aptus PC and Aptus Mobile
  • DC Out Port for easy power supply to the Intellian MIM or the Shaw Decoder Module
 Multiple Receiver Capability
  • Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module)
  • Using the MIM a master receiver can be selected to control the target satellite
  • In North America, when using Dish or Bell TV, a MIM is required, enabling automatic satellite switching from your remote control just like you do at home
 Built-in GPS and NMEA 0183 Interface
  • The i6 includes a built-in GPS inside the Antenna Unit for faster signal acquisition. The ship's GPS can also be connected through the NMEA 0183 port on the rear panel of the ACU
 Stylish Radome Profile
  • 70 cm (27.5 inch) antenna radome diameter
  • Antenna weighs less than 20 kg (44 lbs)
 Three Year Global Warranty
  • Industry leading 3-year parts and workmanship guarantee with a 2-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment
  • The new warranty policy(3 year parts and 2 year labor) is only valid for products purchased after 1st, January 2017

All Satellite Systems include the following parts as standard

  • Antenna & Radome 60 cm (24″) Reflector & LNB
  • ACU (Antenna Control Unit)
  • PC Controller Program (Software CD included)
  • Installation & Operation Manual
  • Installation Template
  • Quick Installation Guide

Installation Kit

  • ACU Table Mounting Bracket × 2EA
  • 15 m (49 ft) × 1EA Antenna-ACU RG6 Coaxial Cable
  • 3 m (10 ft) × 1EA ACU-IRD RG6 Coaxial Cable
  • 10 m (33 ft) × 1EA DC Power Cable
  • 1.8 m (6 ft) × 1EA PC Serial Cable
  • Connectors & Screws
