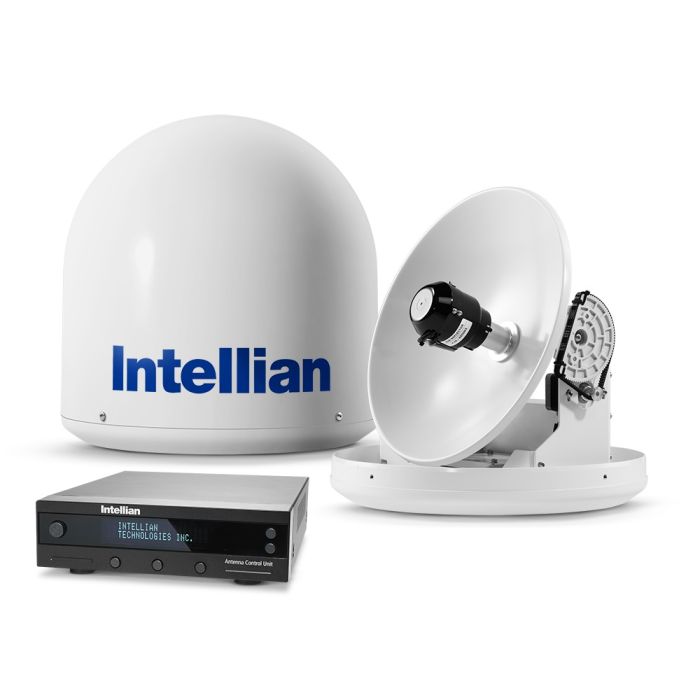

Intellian i2 Marine Satellite TV System w/ MIM for Dish Network and Bell TV (B4-I2DN)

US$3,195.00 US$2,556.00
Overview

Compact, Lightweight TV at sea. Compact and lightweight, the Intellian i2 delivers exceptional TV reception. Equipped with Intellian’s iQ² technologies, the i2 delivers stable, quiet, dependable performance and superior value in the smallest size antenna available.

BRAND:
INTELLIAN
MODEL:
i2
PART #:
B4-I2DN
WARRANTY:
3 YEARS PARTS 2 YEAR LABOR
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
Product Code:
Intellian-i2-System-B3-I2DN

Intellian i2 Marine Satellite TV System for Dish Network and Bell TV (B3-I2DN)
The Intellian i2 is the world's first high–performance, compact satellite TV system with a breakthrough integrated HD and Automatic Satellite Switching TriSat™ module. This state–of–the–art functionality provides boaters premium high–definition (HD) and standard (SD) programming broadcast from leading satellite TV service providers without any extra conversion tools, cable wiring and costs.

The i2 is the preferred choice for smaller vessels from 25 feet with its lightweight antenna (9.8 lbs), small mounting footprint (13") and powerful design features. With its innovative, patent–pending Wide Range Search (WRS®) and Dynamic Beam Tilting (DBT®) technologies, the i2 can always maintain the highest signal strength available and ensure crystal–clear TV reception. Intellian's super-efficient 13" diameter antenna provides constant, seamless reception while the vessel is in the slip, at anchor, motoring along the coast or cruising offshore. The i2 TVRO 2–axis antenna features a built–in GPS system which can accelerate the satellite signal acquisition time when other boats are left with the message "SEARCHING FOR SATELLITE" on their TV screen!

Bundled with Intellian's new intelligent Antenna Control Unit (ACU), boaters get a complete turnkey solution designed for simplicity and ease. The i2 ACU features a built–in, pre–programmed global satellite library for DirecTV. Intellian's exclusive Multi–satellite Interface Module* (MIM), allows as many as three different satellites to be viewed at once, from different locations onboard, the ACU supports automatic satellite switching right from your remote control just like home.

Intellian i2 System Diagram

More Information
PRODUCT TYPESATELLITE TV
USE TYPEMARITIME
BRANDINTELLIAN
MODELi2
PART #B4-I2DN
NETWORKBELL TV, BRAZIL CLARO, DIRECTV, DIRECTV LATIN AMERICA, DISH NETWORK
USAGE AREAREGIONAL - SEE COVERAGE MAP
ANTENNA SIZE33 cm (13 inch)
WEIGHT4,5 kg (9,5 lb)
FREQUENCYKu BAND
ACCESSORY TYPEANTENNA
RECEPTION FREQUENCYKu-band: 10.7 ~ 12.75 GHz
RADOME HEIGHT38 cm (15.0 inch)
RADOME DIAMETER37 cm (14.6 inch)
OPERATING TEMPERATURE-25°C to 55°C (-13°F to 131°F)
STORAGE TEMPERATURE-40°C to 80°C (-40°F to 176°F)
CERTIFICATIONSCE COMPLIANCE, FCC
POLARIZATIONVERTICAL / HORIZONTAL
AZIMUTH RANGE680º
ELEVATION RANGE10° ~ 80°
SHIP'S MOTIONRoll ±25º, Pitch ±15º
MINIMUM EIRP51 dBW
ROLL & PITCH RESPONSE RATE60° / sec
TURNING RATE60° / sec
RF OUTPUTDUAL OUTPUT
SHIPS FROMIRVINE, CA (USA), SEOUL (SOUTH KOREA), ROTTERDAM (NETHERLANDS)

Intellian i2 Features


Fully Automated System
Automatic Satellite Search and Identification Function
2-axis Stabilization provides high speed tracking

High Performance Antenna
33cm (13in) diameter, parabolic antenna for receiving Ku-Band satellite signals
Circular or linear polarization depending on region and LNB selected
Built-in HD module for Ku-band HD TV reception

iQ² Quick&Quiet℠ Technology
iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal tracking while eliminating intrusive background noise experienced with conventional antennas

Antenna Control Unit
Intuitive controls and digital satellite information display on the ACU
Automated updates and diagnostics via Aptus
Simple antenna status quick reference

Multiple Receiver Capability
Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module)
Using the MIM, a master receiver can be selected to control the target satellite
In North America, when using Dish or Bell TV, a MIM is required, enabling automatic satellite switching from your remote control just like at home

Interface to External NMEA 0183 GPS Interface
Standard NMEA Interface allowing a vessel owner to use a separate GPS system further reducing initial search time

Compact Size
37cm (14.6 inch) antenna radome diameter
Very light antenna weighs less than 4.5 kg (10 pounds)

Three Year Global Warranty
Industry leading 3-year parts and workmanship guarantee with a 2-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment
The new warranty policy(3 year parts and 2 year labor) is only valid for products purchased after 1st, January 2017.

Whats Included


All Satellite Systems include the following parts as standard
- Antenna & Radome 33 cm (13 inch) Reflector & LNB
- ACU (Antenna Control Unit)
- PC Controller Program (Software CD included)
- Installation & Operation Manual
- Mounting Template
- Quick Installation Guide

Installation Kit
- ACU Table Mounting Bracket × 2EA
- 15 m (49) ft × 1EA Antenna-ACU RG6 Coaxial Cable
- 3 m (10 ft) × 1EA ACU-IRD RG6 Coaxial Cable
- 10 m (33 ft) × 1EA DC Power Cable
- 1.8 m (6 ft) × 1EA PC Serial Cable
- Connectors & Screws

Intellian i2 Coverage Maps


Intellian Bell TV Coverage Map

Intellian Dish Network Coverage Map

Intellian DirecTV North America Coverage Map

Intellian DirecTV Latin America Coverage Map

Intellian Brazil Claro Coverage Map
