Intellian DISH-Bell Multi-Satellite Interface Multi-Switch (MIM) & AC110V Adapter (M2-TD02)

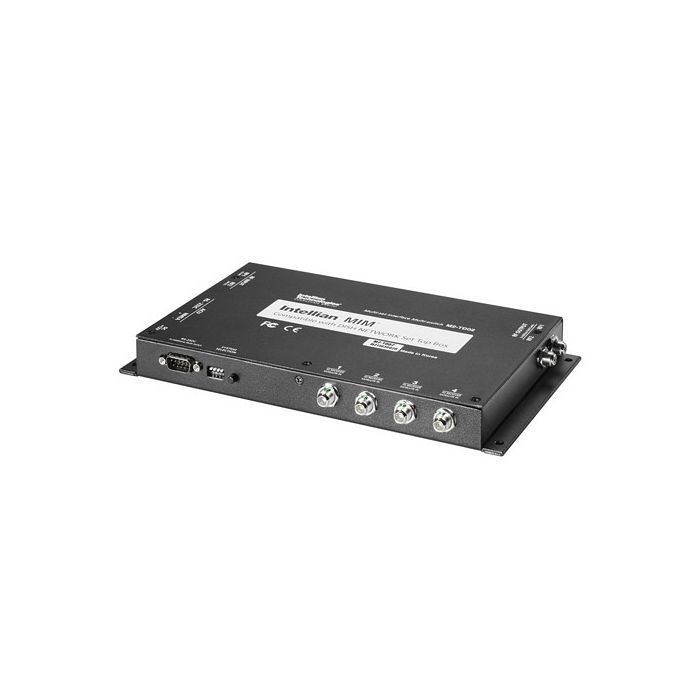

Intellian DISH Network / Bell TV Multi-Satellite Interface Multi-Switch (MIM)
The Intellian’s Multi-sat Interface Module (MIM) utilizes a leading-edge technology which replaces the Dish Network DP-34 multi-switch. The user oriented design of the MIM offers Dish Network subscribers access to their favorite high-definition (HD) programming and switches automatically between Dish Network 110°W, 119°W, and 129°W satellites or alternatively between satellites 61.5°W,110°W, and 119°W. If you are in certain areas of the east coast or south Texas, you may not be able to view HD programming from the 129° satellite based on your geographical location. Therefore, instead of selecting the 129° satellite, you can select the 61.5° satellite which carries the same programs as the 129° satellite.

Intellian recommends using a Dish Network model ViP211 HDTV receiver for automatic satellite switching. The MIM module has four receiver connector ports. Intellian’s MIM allows you to select which receiver connected to the MIM will be the “Master” receiver. The “Master” receiver will control which satellite the antenna is focused on. You can simply choose your desired channels by using the receiver’s remote control through the Master receiver, and the Intellian i-series will automatically switch to the appropriate satellite.

If you need more than 4 receivers, you will be required to link MIM's as shown in the INTELLIAN MIM MANUAL.  Please note that each MIM has 4 ports.
