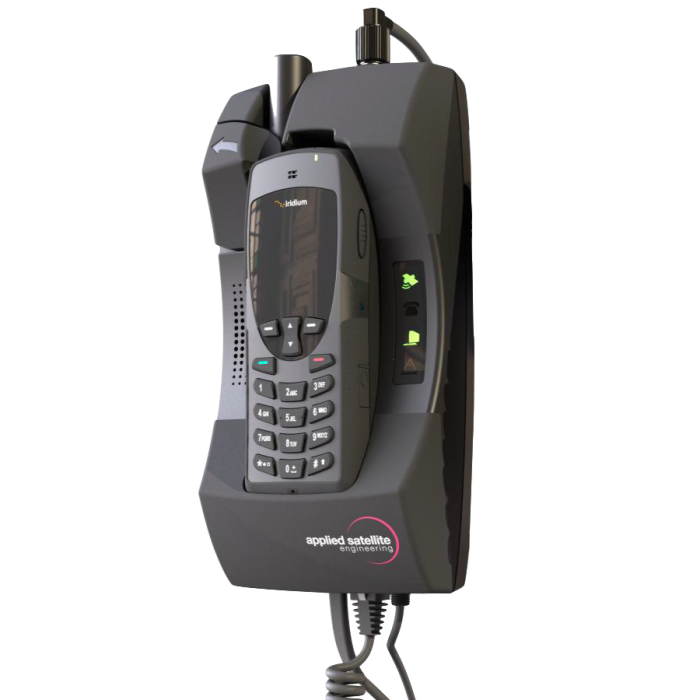

ASE Docking Station w/ POTS & USB for Iridium 9555 Satellite Phones (ASE-DK075)

ASE Docking Station w/ POTS & USB for Iridium 9555 Satellite Phones (ASE-DK075)

ASE (Applied Satellite Engineering) positions DK075 as an “enhanced” dock compared to simpler cradle solutions, adding traditional telephony integration (POTS/PBX) while retaining core docking benefits such as charging, fixed mounting, external antenna support, and status indication.

Design and Features

Docking cradle that “converts” a handheld into a fixed terminal

At its core, DK075 is a powered cradle that securely holds the Iridium 9555 and provides a stable interface for everyday calling from a fixed location. ASE product literature describes the dock as offering a small footprint and rugged integrity, positioned for office, vehicle, and maritime environments.

POTS/PBX integration via RJ-11 (DK075-only)

The defining feature of DK075 is an RJ-11 port intended for analog phone / PABX interface, enabling standard telephone equipment (or an analog PBX extension) to place calls over the Iridium 9555 once the handset is docked. The DK075 user guide explicitly labels the RJ-11 as “DK075 only” and includes dedicated installation instructions for connecting the telephone line and seating the RJ-11 plug.

This effectively allows Iridium satellite voice to be presented to users as a familiar “dial-tone” telephone experience, which can be valuable in remote offices, vessels, or emergency operations centers where staff training time is limited.

USB data interface for Iridium 9555 connectivity

DK075 includes a Mini-USB / USB data interface described as a direct connection to the Iridium 9555 phone. The user guide notes that USB is used for making data calls and points users back to Iridium 9555 documentation for the specifics of data call setup.

SmartDial dialing logic (simplifies satellite dialing and PBX use)

ASE’s user guide describes SmartDial as technology intended to make satellite dialing feel closer to landline dialing, and it explicitly notes that SmartDial “simplifies PABX to RJ-11 interface with the DK075 model.” The guide outlines a three-step SmartDial process (lift off-hook, enter country code, enter number) and explains that the docking station can auto-dial when the expected digit length is reached (or dial immediately when “#” is pressed).

Status LEDs, ringer, and speakerphone features

The DK075 documentation depicts a front-panel feature set including multiple LED indicators (uplink, voice, data, error), a base station ringer, and speakerphone-related elements. It also lists connection points including roof-mount antenna connector, USB, RJ-11 (DK075 only), RJ-45 for an intelligent handset, power input, and reset button.

External antenna options and RF installation constraints

Docking systems are commonly used with external antennas to ensure reliable satellite visibility from inside structures, vehicle cabins, or wheelhouses. DK075’s cut sheet includes Iridium antenna characteristics and notes key RF constraints such as maintaining < 3 dB cable loss and a minimum link margin in the installation.

Technology and Specifications

Interface ports (DK075)

ASE’s DK075 cut sheet and user guide identify the primary external interfaces:

• Mini-USB: USB data interface

• RJ-11: PBX / analog phone connection (DK075-only)

• RJ-45: interface for an “Iridium intelligent handset”

• Power input: wide-range DC input

• Reset: system reset button

Power and environmental specifications

DK075 is designed for both fixed and mobile electrical systems:

• Operating voltage range: 9–36 VDC (unregulated)

• Power consumption: 12 W peak

• Operating temperature (dock electronics): −15°C to +70°C

• Exposure guidance: “dry, protected location” with reference to IEC 60945 installation environment

Mechanical specifications

• Dimensions: 9.75" × 5.50" × 3.25" (L×W×H)

• Weight: 1.4 lb

• Mounting: direct wall mount or a universal mounting approach (accessory dependent)

Kit contents (typical dealer bundle)

A common sales bundle for ASE DK050/DK075 docking stations is described in third-party brochures as including the docking station, AC/DC power adapter, vehicle DC power adapter, and documentation media.

(Exact box contents can vary by reseller and region, so procurement typically verifies inclusions on the quotation or packing list.)

Applications and Use Cases

Remote offices and critical communications “backup line”

In remote operations (mining, utilities, oil & gas, field camps), DK075 can be used to keep an Iridium 9555 installed, powered, and connected to an external antenna, presenting satellite voice as a predictable station or desk-phone experience via RJ-11/PBX. The DK075 brochures commonly position the product for resilience and emergency preparedness use cases.

Maritime and offshore installations

The DK075 is marketed for vessels (including larger ships) where fixed mounting, external antenna placement, and consistent access to satellite voice are operational requirements. A docked Iridium 9555 can act as a “bridge-ready” satellite voice option, particularly when crew need a handset-like workflow while the phone remains installed.

Vehicles and mobile command platforms

The wide 9–36 VDC input range supports vehicle electrical systems, and the RJ-11 option can be used to connect simple analog handsets or integrations in mobile command environments where staff rotate and need a familiar dial-tone interface.

Advantages / Benefits

Adds “landline-style” calling via POTS/PBX

The RJ-11 interface enables a conventional analog phone workflow and supports PBX/PABX extensions, which can reduce user friction compared with handheld-only satellite phone usage.

Simplifies dialing and integration with SmartDial

SmartDial is documented as simplifying satellite dialing and easing the DK075 RJ-11 interface use, including country-code recognition behavior and dialing logic.

Improves practicality of Iridium 9555 as a fixed station

Mounting, charging, and external antenna options reduce the day-to-day operational burden of using a handheld satellite phone as a primary remote voice line—especially indoors or inside vehicles where sky view can be constrained.

Supports both voice and data workflows

The presence of USB (direct connection to the 9555) allows the same docked installation to support data call workflows where required, subject to Iridium service capabilities and user configuration.

FAQ Section

What is the ASE-DK075 docking station for Iridium 9555?

The ASE-DK075 is a docking station that mounts and powers an Iridium 9555 satellite phone and adds RJ-11 POTS/PBX and USB data interfaces, turning the handheld into a fixed-installation satellite voice/data endpoint.

How does ASE-DK075 work?

You dock the Iridium 9555 handset into the cradle. The dock supplies power/charging and routes communications through its interfaces: RJ-11 for an analog phone or PBX extension (DK075-only) and USB for data connectivity. SmartDial can simplify dialing behavior for voice calls.

Why is ASE-DK075 important?

It makes Iridium 9555 satellite calling more practical in fixed sites, vehicles, and vessels by providing a dial-tone-style RJ-11 interface and by supporting external antenna installations and always-ready power.

What are the benefits of ASE-DK075?

Commonly cited benefits include RJ-11 analog phone/PBX integration, USB data, 9–36 VDC input, SmartDial dialing logic, and a compact mountable form factor suitable for remote, vehicle, and maritime deployments.

Does ASE-DK075 include the Iridium 9555 phone?

The docking station is generally sold as an accessory, and the Iridium 9555 handset is typically purchased separately. (Resellers commonly list the dock as a standalone item; verify inclusions on the quote or order.)

Summary

The ASE-DK075 Docking Station w/ POTS & USB for Iridium 9555 is a fixed-installation docking solution that turns an Iridium 9555 handheld into a more practical remote communications endpoint. Its RJ-11 analog phone/PBX interface (DK075-only), USB data connection, wide 9–36 VDC power support, and SmartDial dialing workflow make it especially relevant for remote facilities, maritime installations, and vehicles that need a dependable Iridium satellite voice line with familiar telephony ergonomics and integration options.
