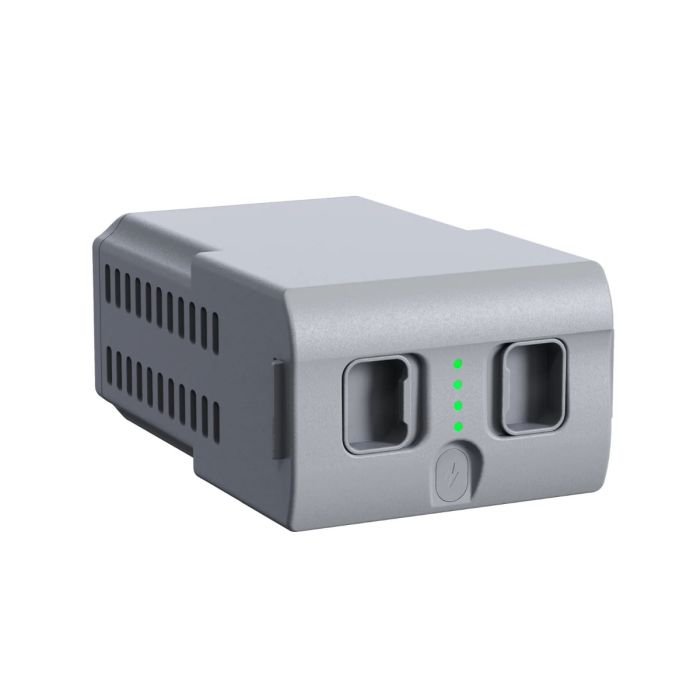

Unitree Go2 Standard Version Battery 8000Mah Fast Charging 29.6V (GO2-BATTERY)

Unitree Go2 Standard Version Battery 8000Mah Fast Charging 29.6V (GO2-BATTERY)

In Unitree’s documentation and technical materials, the Go2 battery system is described as a purpose-built “smart battery” featuring charge/discharge management and an integrated battery management system (BMS) developed to support safety, performance stability, and field usability.

The standard Go2 battery variant is commonly associated with the model BT2-05 (standard version), distinguishing it from the higher-capacity BT2-06 long-endurance battery option.

Design and Features

Purpose-built modular battery pack

The GO2-BATTERY is designed as a quick-swappable external battery module, allowing users to remove and replace packs to minimize downtime and extend mission time. The design supports practical robotics workflows such as lab testing cycles, field inspection routes, and long-duration demonstrations.

Unitree’s Go2 battery manual describes a battery housing with a power switch, LED status indicators, and dedicated interfaces for charging and discharge/robot connection.

Smart BMS (Battery Management System)

A major feature of the Go2 battery is its integrated BMS, which is intended to manage both performance and safety during charging, discharging, transport, and storage. Unitree notes the battery uses high-performance cells and an advanced BMS independently developed by Unitree Robotics.

The user manual outlines multiple protection and management functions, including:

• Power level display via onboard LEDs

• Storage self-discharge protection, reducing charge to ~65% after extended storage

• Balance charging protection for internal cell voltage balancing

• Overcharge / over-discharge / short-circuit protection

• Charging temperature protection (charging may be blocked below 0°C or above 50°C)

This BMS-focused approach reflects a broader trend in modern robotics batteries, where embedded controls help reduce failure modes that can impact runtime stability and battery lifespan.

Fast-charging support

Unitree’s Go2 battery specifications list a charging current range of approximately 3.5A to 9A, supporting faster turnaround between operating sessions when paired with compatible charging equipment.
The Go2 battery manual also distinguishes between standard chargers and fast chargers, reinforcing that charge speed can vary based on the selected charger model.

Technology and Specifications

Electrical specifications

Unitree’s official Go2 battery specifications for the Standard Version identify:

• Rated voltage: DC 29.6V

• Charge limit voltage: DC 33.6V

• Rated capacity: 8000mAh and 236.8Wh

• Charging current: 3.5A–9A (fast-charge capable range)

The 236.8Wh energy rating is particularly important for logistics and compliance, as Watt-hour capacity often influences shipping requirements and air-transport restrictions for lithium batteries.

Physical specifications

The Go2 battery manual lists the standard battery size as:

• 120mm × 80mm × 182mm

This compact rectangular format supports mounting/locking into the robot body while providing sufficient volume for energy density and thermal management.

Safety and compliance standards

Unitree’s Go2 battery technical listing references compliance with IEC 62133-2, a safety standard often applied to sealed secondary lithium cells and batteries used in portable devices.

In addition, the Go2 battery manual includes operational guidance to reduce risk, such as avoiding charging immediately after high-load operation, maintaining safe charging environments, and using officially supported chargers.

Applications and Use Cases

Extended Go2 runtime for robotics missions

The most direct use case for the GO2-BATTERY is enabling sustained operation of the Unitree Go2 in real-world deployments. Standard batteries are frequently used in:

• university robotics labs (repeat tests and algorithm development)

• education and training (classroom demonstrations, workshops, STEM programs)

• indoor/outdoor inspections (visual checks, data collection routes)

• teleoperation and autonomy trials (navigation experiments and tuning sessions)

Multi-battery rotation for continuous workflows

Because the Go2 battery is designed as a removable module, many users adopt a battery rotation strategy, charging one pack while another is in operation. This approach is common in professional robotics use where continuous uptime is preferred.

Shipping and field deployment planning

With an energy capacity of 236.8Wh, the standard Go2 battery is also relevant to planning for:

• spare pack transport

• compliance documentation in logistics

• safe storage and charge limits for long-term deployments

Unitree’s manual further suggests discharge to ~65% for transport or long-term storage, aligning with common lithium battery best practices.

Advantages / Benefits

Reliable power delivery for dynamic locomotion

Quadruped robots require stable power output due to the high current demands of electric actuators during walking, balancing, and stair-climbing maneuvers. The Go2 battery’s smart BMS and protection features are designed to support stable operation during these load changes.

Fast charging for reduced downtime

Support for higher charging current (up to around 9A) can reduce turnaround time between sessions, improving productivity for labs, demos, and commercial deployments.

Built-in safety protections

The Go2 battery includes multiple BMS safeguards—such as overcharge, over-discharge, and temperature protection—intended to reduce risks related to lithium battery operation.

Storage self-discharge protection

Unitree documents an automatic self-discharge feature to protect battery health during long storage periods, reducing state of charge toward ~65% after extended inactivity.

FAQ Section

What is the Unitree Go2 Standard Version Battery (GO2-BATTERY)?

The GO2-BATTERY is the standard 8000mAh battery pack for the Unitree Go2 quadruped robot, rated at 29.6V and approximately 236.8Wh, designed for removable, rechargeable power delivery.

How does the Unitree Go2 battery work?

It powers the Go2 robot through a dedicated battery interface and uses an integrated smart BMS to manage charging, discharging, balancing, and protection features such as overcharge and over-discharge prevention.

Why is the GO2-BATTERY important?

A reliable battery is essential for a quadruped robot’s stability and runtime. The Go2 battery supports fast charging, safety protections, and operational indicators—features that improve usability for research, inspection, and training deployments.

What are the benefits of the Unitree Go2 8000mAh fast-charging battery?

Key benefits include 29.6V rated output, 8000mAh/236.8Wh capacity, fast-charging support, and built-in BMS protections and LED power indicators, helping support safe and efficient Go2 operation.

Summary

The Unitree Go2 Standard Version Battery 8000mAh Fast Charging 29.6V (GO2-BATTERY) is a dedicated smart battery module engineered for the Unitree Go2 quadruped robot, combining 8000mAh (236.8Wh) capacity, 29.6V rated output, and fast-charge capability with an integrated BMS designed to support safety and performance in real-world robotics use. Its removable design and documented protection features make it a practical power solution for Go2 deployments across education, inspection, and field robotics development.
