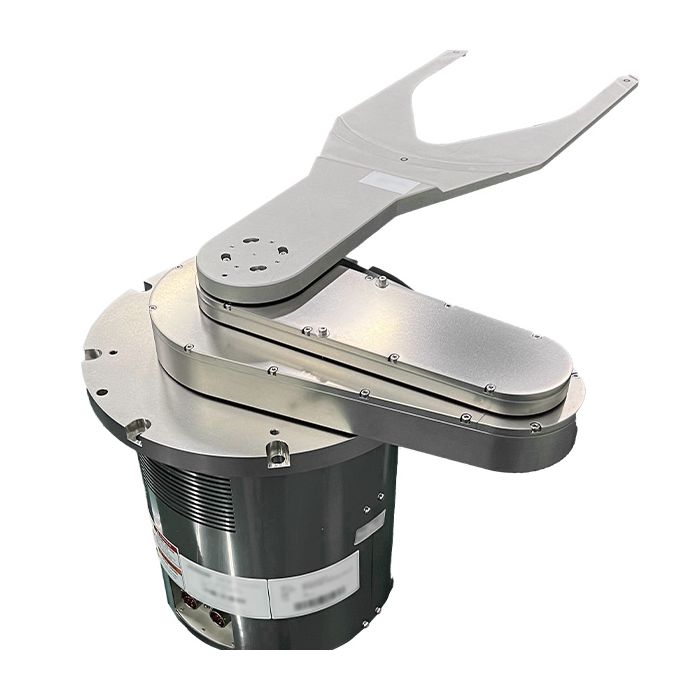

SIASUN SRBZ970C (SRBZ970C)

Product listings for the SRBZ970C emphasize SEMI certification, a high mean cycles between failures (MCBF) exceeding 10 million, magnetic-fluid sealing, and steel-belt transmission, along with a networked control system and dynamic deviation correction intended to improve throughput and consistency.

SIASUN (Siasun Robot & Automation Co., Ltd.) is a major Chinese robotics manufacturer associated with the Chinese Academy of Sciences, producing industrial robots and automation systems across multiple industries.

Design and Features

Vacuum-oriented mechanical design

The SRBZ970C is presented as a vacuum manipulator that uses magnetic-fluid sealing as its sealing method, a technique widely used in vacuum motion systems to reduce leakage while enabling smooth rotary motion.

Key design elements highlighted in published descriptions include:

• Magnetic-fluid sealing for vacuum suitability and stability

• Steel-belt transmission (often selected in clean/vacuum mechanisms to reduce particulate generation compared with some geared drivetrains)

• Low noise and low vibration operating characteristics, with a stated focus on stable running and precision

Motion structure and degrees of freedom

The SRBZ970C is specified as having 2 degrees of freedom (2-DOF)—a configuration frequently used for planar wafer or tray transfer where a compact kinematic chain can deliver repeatable radial and rotational placement.

Control, safety, and usability features

Published product descriptions highlight several operational and safety functions:

• Networked control system

• Anti-collision protection and collision-sensitive protection features intended to reduce damage risk

• Dynamic deviation correction and updated trajectory planning to improve motion rhythm (cycle time) and productivity

• A large-screen teach pendant described as improving ease of commissioning and debugging

• Customization options (e.g., arm size) to fit specific application constraints

Technology and Specifications

Publicly listed specifications for the SRBZ970C include vacuum, motion, and precision parameters that align with clean manufacturing automation.

Mechanical and payload-related specifications

• Model: SRBZ970C

• Sealing method: Magnetic-fluid sealing

• Degrees of freedom: 2

• Payload (example load type): tray (“托盘”)

• Tray diameter: Φ380 mm

• Tray weight: 2 kg

Motion range and cycle-time indicators

• θ-axis range: 360°

• Minimum time (full stroke examples):

  • R-axis: 2.5 s (Home to Extend 920 mm)

  • θ-axis: 4.8 s (180°)

• Stroke / travel: 970 mm (listed as “行程: 970mm”)

Repeatability and precision

• θ-axis repeatability: ±0.01° (3σ)

• R-axis repeatability: ±0.1 mm (3σ)

Vacuum performance and leak integrity

• Vacuum tolerance: < 5×10⁻9 Torr (listed under “耐真空度”)

• Leak rate: < 1×10⁻9 std.cc/sec He

Reliability and certification claims (as published)

Product listings for the SRBZ970C describe:

• SEMI certification

• MCBF > 10 million

Electrical requirements (as published)

• Power supply: Single-phase AC 208 V, with a stated voltage fluctuation range of +10% / −15%

Note: Public listings commonly summarize vacuum/clean handling robots at a high level; integrators typically confirm exact interface options (I/O, communications, mounting, and end-effector compatibility) during quoting and application engineering.

Applications and Use Cases

The SRBZ970C’s combination of vacuum sealing, low-vibration operation, collision protection, and high repeatability positions it for precision handling workflows in clean or vacuum-compatible production environments.

Semiconductor and vacuum-process handling

Vacuum manipulators are frequently deployed for:

• Wafer transfer between process modules, load ports, and inspection stations

• Tool-side handling inside vacuum-adjacent or controlled mini-environments

• Contamination-sensitive pick-and-place where stable motion and sealed mechanisms reduce process risk

The SRBZ970C’s published vacuum tolerance and helium leak-rate specifications align with this category of applications.

Display, electronics, and high-cleanliness automation

Clean transfer robots are also used in advanced electronics production where:

• Particles can affect yield (e.g., precision components, optical elements)

• Cycle time and repeatability influence overall line throughput
  SIASUN broadly markets industrial robot systems across multiple industries, reflecting this wider deployment context.

High-throughput, safety-focused automation cells

Listings emphasize trajectory planning improvements and dynamic deviation correction, which are typically valuable in:

• Repetitive transfer cycles where small timing improvements scale into meaningful throughput gains

• Lines where misalignment or minor deviations can cause scrap, downtime, or tool alarms

Advantages / Benefits

Vacuum integrity and cleanliness-oriented engineering

The SRBZ970C’s magnetic-fluid sealing and published vacuum/leak specifications indicate a focus on maintaining vacuum integrity and minimizing leakage pathways.

Repeatable motion for consistent placement

Repeatability values published for both axes support consistent positioning—important for high-precision transfer, especially where downstream automation expects predictable placement.

Safety and damage prevention features

Collision protection features are highlighted as helping protect the robot and handled items (including mentions of protecting customer wafers and reducing losses from misoperation).

Productivity-oriented control features

A networked control architecture and revised trajectory planning are positioned as improving motion rhythm and user productivity—typical goals in high-utilization automation.

FAQ Section

What is the SIASUN SRBZ970C (SRBZ970C)?

The SIASUN SRBZ970C is a vacuum manipulator / clean-environment robot arm designed for precision transfer tasks, featuring magnetic-fluid sealing, published high vacuum tolerance, and collision-protection functions for sensitive handling workflows.

How does the SRBZ970C work?

The SRBZ970C uses a 2-DOF motion structure (rotational θ-axis and radial R-axis) to move a load (such as a tray) through controlled transfer paths. Its published control features include networked control, dynamic deviation correction, and trajectory planning intended to improve cycle performance and placement consistency.

Why is the SRBZ970C important?

In vacuum and high-cleanliness automation, reliable transfer hardware helps protect yield and equipment uptime. The SRBZ970C is positioned around vacuum integrity (leak rate and vacuum tolerance), repeatable positioning, and collision protection to reduce misoperation losses and protect sensitive items.

What are the benefits of the SRBZ970C?

Commonly stated benefits include magnetic-fluid sealing, steel-belt transmission, SEMI certification, high reliability claims (MCBF >10M), anti-collision protection, and improved trajectory planning aimed at higher throughput and safer operation.

Summary

The SIASUN SRBZ970C is a specialized vacuum manipulator built for clean, precision handling environments, combining a 2-DOF transfer architecture, magnetic-fluid sealing, published vacuum/leak performance, and productivity-focused control features such as dynamic deviation correction and updated trajectory planning. With emphasis on collision protection, repeatability, and high-reliability positioning (including published SEMI and MCBF claims), the SRBZ970C fits applications where consistent, contamination-conscious transfer is essential.
